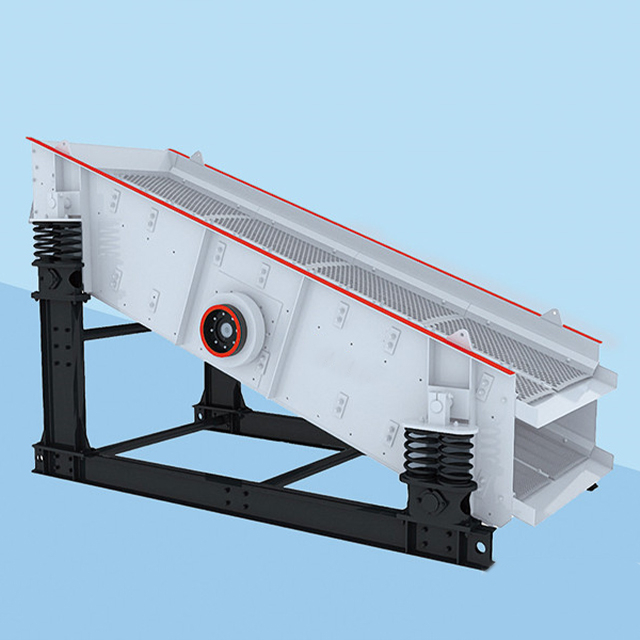

YA Series Circular Vibrating Screen

YA series circular vibrating screen

Our company's YA series circular vibrating screen is mainly divided into five categories according to its screen specifications, each category has light, heavy, single and double points, varieties of more than 20, screening materials 150t-1700t per hour, screen diameter 6mm-150mm, feed size 50mm-400mm, high efficiency, screening speed, can meet a variety of screening needs.

Feed capacity: 150-1700t/h

Number of layers: 1-2

Application: coal, ore, coke and other bulk materials

YA series circular vibrating screen product introduction

YA series circular vibrating screen is mainly used in coal, metallurgy, mining, power generation, building materials industry, water conservancy engineering, light industry and chemical industry. A high-efficiency screening equipment for classifying bulk materials such as coal, ore and coke.

Outstanding advantage

1. Ring groove rivet connection, advanced structure, durable.

2. Using tire coupling, flexible connection, smooth running.

3. Adopt high strength bolts for screen beam and screen box, simple structure, convenient and quick maintenance.

4. Using block eccentricity as excitation force, excitation force is strong, low power consumption, low noise.

Working principle

The working principle of YA series vibrating screen is that the exciter is installed on the side plate of the screen box, and the motor drives it to rotate through the belt drive, so that it produces centrifugal inertia force, forcing the screen box to produce periodic reciprocating vibration, and its movement trajectory is approximately circular; When the sifted material enters the sifting surface, due to the vibration of the sifting surface, the material layer on the sifting surface is loose and jumps away from the sifting surface, and the small particle material can fall through the material layer, while the large particle material can not pass through the material layer, so that the original disorganized particle group is separated, forming the arrangement rule of small particles under and large particles on the top; The fine particles reaching the screen surface, smaller than the sieve hole through the sieve, to achieve the separation of coarse and fine particles, complete the screening; At the same time, the particles stuck in the screen will be vibrated out to ensure that the screen does not clog.
