YK Series Vibrating Screen

Screening equipment is the use of rotation, vibration, reciprocating, shaking and other actions will be a variety of raw materials and a variety of primary products through the screen selection according to the size of the material into a number of grades, the main equipment are: YK series circular vibrating screen, GS series drum sieve, high frequency fine screen, YA series circular vibrating screen
Application: Applicable to coal, metallurgy, mining, power generation, building materials industry, water conservancy engineering, light industry and chemical industry.
Availability:
Quantity:

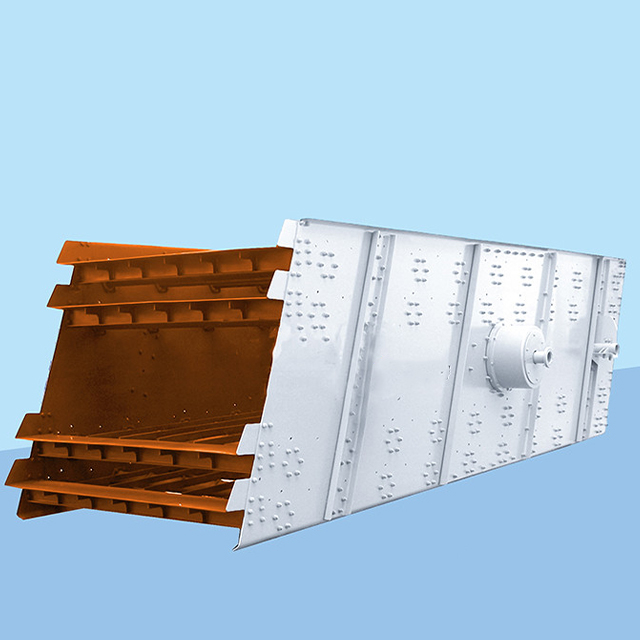

YK series vibrating screen

Product Introduction: Our YK series vibrating screen specifications from YK1224 to YK3060 specification models, of which each specification model has 1, 2, 3, 4 layers, a total of 33 kinds of products, screen area 2.88-18m², motor power 5.5-45kW, double amplitude, vibration amplitude 6-8mm, vibration frequency 970 times per minute, It can meet the screening work of 20-900t/h materials.


Output: 20-900t/h


Number of layers: 1-4


Application: Applicable to coal, metallurgy, mining, power generation, building materials industry, water conservancy engineering, light industry and chemical industry.


YK series vibrating screen product introduction

It is mainly used for clean coal, medium coal, gangue dewatering, desliming and other operations in coal preparation plant, and also used for wet or dry classification of fine grained minerals after crushing and grinding in coal preparation plant. Ore cleaning, dehydration, desliming, desliming and other operations. Used for the first stage grinding classification, instead of spiral classifier, cyclone, improve classification efficiency, reduce mill cycle load. Reduce energy consumption in concentrator.


Outstanding advantage

1, using block eccentricity as excitation force, excitation force is strong.


2, screen beam and screen box with high strength bolt connection, no welding.


3, screen machine structure is simple, convenient and fast maintenance.


4, the use of tire coupling, flexible connection, smooth operation.


Working principle

YK circular vibrating screen is a screening equipment of single mass forced vibration system composed of exciting parts such as sieve box and vibrator and rubber spring as elastic components. The motor drives the vibrator through the tire coupling to make the eccentric block of the vibrator rotate rapidly to generate exciting force. The sieve box is made to vibrate continuously, and the material is continuously thrown along with the sieve box on the inclined screen surface; The particles pass through the screen during the contact between the falling and the screen surface, and the grading process of the particles is completed repeatedly.


Technical parameter

Type specificationNumber of screen layersScreen area (m²)Vibration frequency (r/min)Double amplitude (mm)Processing capacity (m³/h)Motor power (kW)Overall dimensions (mm)Weight (kg)
2YK122422.889706-820-1205.52673x2382x20271750
YK123514.29706-820-1505.53710x2464x14501729
2YK123524.29706-820-1507.53705x2393x23392476
3YK123534.29706-820-1507.53621x2521x25813158
4YK123544.29706-820-150113510x2521x28304160
YK154516.759706-820-150114904x3044x21793319
2YK154526.759706-820-150155042x3090x31655308
3YK154536.759706-820-150154972x3090x33955915
4YK154546.759706-820-15018.54915x3155x38047260
YK154817.29706-820-150115190x3044x21863319
2YK154827.29706-820-150155265x3140x32085284
3YK154837.29706-820-150155200x3090x34406186
4YK154847.29706-820-15018.55200x3155x38497284
YK1860110.89706-832-350156302x3365x29924651
2YK1860210.89706-832-35018.56020x3455x37566195
3YK1860310.89706-832-35018.56020x3455x41807613
4YK1860410.89706-832-350225963x3505x44638650
YK2160112.69706-866-72018.56302x3730x29924917
2YK2160212.69706-866-720225966x3958x39756856
3YK2160312.69706-866-720305966x3958x44009112
4YK2160412.69706-866-720305966x3958x478011405
YK2460114.49706-875-75018.56302x4155x29925243
2YK2460214.49706-875-750306027x4308x39758503
3YK2460314.49706-875-750306027x4308x440010411
4YK2460414.49706-875-750305966x4308x478012068
2YK24752189706-8120-900307812x4308x464210709
3YK24753189706-8120-900377718x4393x503313400
4YK24754189706-8120-900457718x4494x536115500
YK30601189706-8200-900306302x4943x310814052
2YK30602189706-8200-900376207x4943x398517185
3YK30603189706-8200-900456207x4943x448519200
4YK30604189706-8200-900456207x4943x478521080
