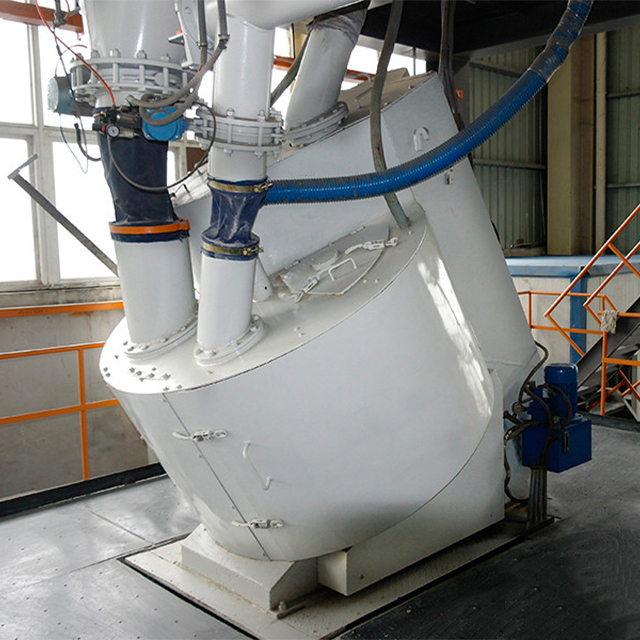

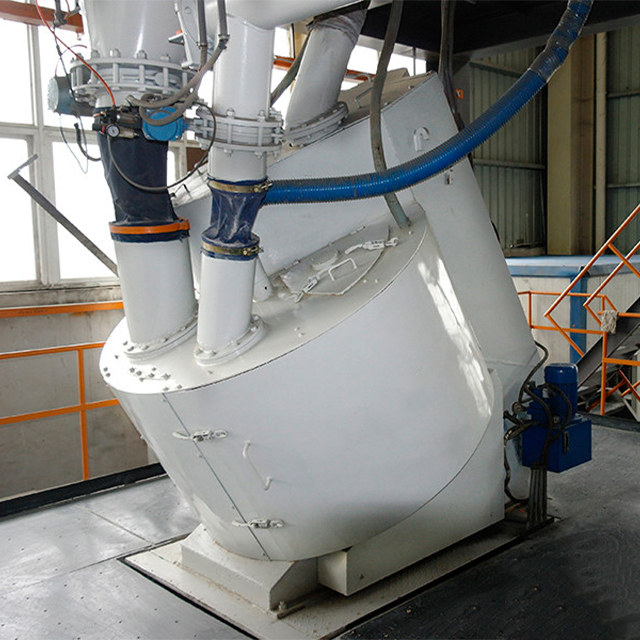

ZKH series clean strong mixer
Product introduction: Our ZKH series clean type strong mixer product ZKH-11-ZKH-24 has four models, the mixer each loading capacity 500-2400 (L), corresponding to 330-1600kg, supporting motor power 75-132kW.
Capacity: 330-1600kg
Model: ZKH-11-ZKH-24
Application: Used in ceramics, building materials, glass, metallurgy, ceramics, refractories, casting, batteries and environmental protection industries.
ZKH series clean strong mixer product introduction
ZKH series clean strong mixer is developed on the basis of absorbing and learning from foreign mature technology, mainly used for mixing and mixing of various solid, powder and liquid materials, with wear resistance, long service life, high production efficiency, good mixing effect, no dust pollution in the mixing process, even a small amount of materials can achieve better mixing effect. Can be widely used in ceramics, building materials, glass, metallurgy, ceramics, refractory materials, casting, batteries and environmental protection and other industries.
Outstanding advantage
1. The whole process of mixing is carried out inside the fully closed cylinder, and the inside of the cylinder is in a state of micro negative pressure, no dust pollution, clean and environmental protection;
2, inclined structure design, the use of optimized design of the inclined Angle, so that the mixed material has a specific tilt up and down smooth, the cylinder will not occur "anti-mixing" phenomenon, can get a very high uniformity, good dispersion of the mixture;
3, inclined structure design, even if only half or one-third of the material is filled in the cylinder, it can achieve satisfactory mixing effect;
4, the cylinder adopts low speed design, and the inner wall has wear-resistant lining, the equipment wear is small, long life.
Working principle
ZKH series clean type strong mixer is a mixing equipment which applies the principle of countercurrent relative movement to disperse and mix materials repeatedly. The working principle is: The rotor is inclined to be installed at a specific Angle, and a high-speed mixing rotor is arranged at its eccentric position. When the rotor rotates clockwise at a low speed, the material is continuously sent into the running track of the high-speed anti-clockwise rotating mixing blade. With the help of the rotating cylinder and the action of the scraper, a specific three-dimensional space flow field conducive to mixing is formed. The material can be fully turned and mixed in the shortest possible time to achieve efficient and uniform treatment effect.
Technical parameter
型号Type | 装料量Max Capacity | 主功率 Main Power(kW) | 整机质量 TTL Weight (t) | |
按重量Weight (kg) | 按体积Volum(L) | |||
ZKH-11 | 330 | 500 | 75 | 4 |
ZKH-15 | 630 | 950 | 90 | 6 |
ZKH-19 | 1000 | 1500 | 110 | 10.5 |
ZKH-24 | 1600 | 2400 | 132 | 17 |
