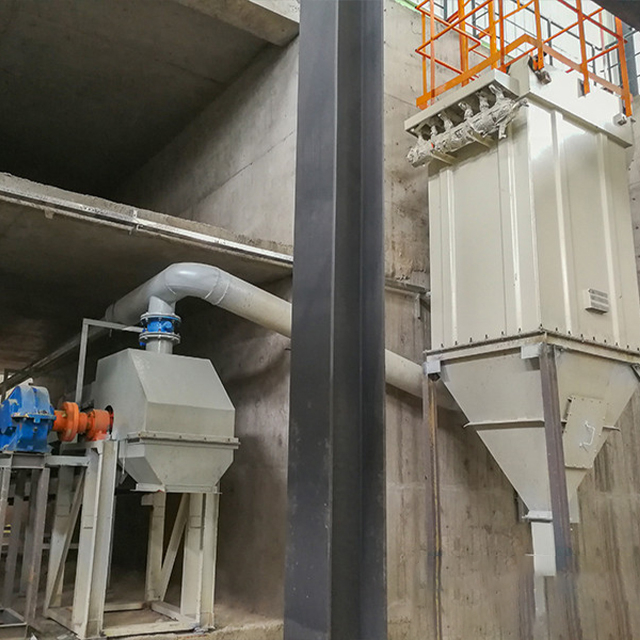

ZM Click pulse dust collector
Product introduction: The company's ZM series single pulse dust collector can be divided into nine models according to the number of filter bags, processing air volume 700m³/ h-21600m ³/h, the export gas concentration is less than 30mg/m³, meet the environmental protection emission standards, the dust collector resistance is small, high efficiency.
Handling air volume: 700m³/h - 21600m³/h
Model: ZM-16 - ZM-200
Application: Can be widely used in metallurgy, building materials, machinery, chemical, mining and other industries of non-fiber industrial dust dust dust purification and material recovery.
ZM Click pulse dust collector product introduction
ZM series single machine pulse dust collector is our company digest and absorb similar products at home and abroad, optimized design and improvement of small bag dust collector. It adopts the ash cleaning method of pulse jet, which has the advantages of good ash cleaning effect, high purification efficiency, large air volume, long life of filter bag, small maintenance workload, safe and reliable operation.
Outstanding advantage
1, occupy small space, low noise, compact structure, low investment; The replacement of filter bag is carried out outside the machine, which is simple, fast and easy to maintain;
2, by the electronic signal directly start the solenoid valve to achieve spraying, instantaneous spraying gas, spraying effect is good;
3, the use of polyester needle felt filter bag, high dust removal efficiency, long filter bag life, low emission concentration;
4, the box is welded by bending plate, with high stiffness and reliability at the same time, the whole machine appearance is neat and beautiful.
Working principle
When working, the dusty gas enters the filter chamber by the ash hopper (or the lower open flange), the coarser particles fall directly into the ash hopper (or ash bin), the dusty gas is filtered by the filter bag, the dust is blocked on the outer surface of the filter bag, and the net gas is discharged into the air by the fan.
Technical parameter
Model number | ZM-16 | ZM-32 | ZM-48 | ZM-64 | ZM-80 | ZM-96 | ZM-112 | ZM-150 | ZM-200 | ||
Handling air volume (m³/h) | 700-1000 | 1500-2100 | 2100-3200 | 2900-4300 | 4000-6000 | 5200-7000 | 6000-9000 | 9000-16200 | 12000-21600 | ||
Total filtration area (m²) | 12 | 24 | 36 | 48 | 60 | 72 | 84 | 150 | 200 | ||
Filter wind speed (m/min) | 1.00-1.50 | 1.00-1.50 | 1.00-1.50 | 1.00-1.50 | 1.10-1.70 | 1.20-1.70 | 1.20-1.80 | 1.0-1.8 | 1.0-1.8 | ||
Total number of filter bags (strips) | 16 | 32 | 48 | 64 | 80 | 96 | 112 | 150 | 200 | ||
Inlet gas temperature (℃) | ≤120 | ||||||||||
Equipment Resistance (Pa) | ≤1200 | ||||||||||
Inlet dust concentration (g/m³) | <200 | ||||||||||
Outlet emission concentration (mg/m³) | ≤30 | ||||||||||
Clean compressed air | Pressure (MPa) | 0.5-0.7 | |||||||||
Air consumption (m³/min) | 0.06 | 0.1 | 0.14 | 0.2 | 0.24 | 0.29 | 0.34 | 0.5 | 0.65 | ||
Negative pressure (Pa) | 5000 | ||||||||||
Number of pulse valves (PCS) | 4 | 4 | 6 | 8 | 10 | 12 | 14 | 15 | 20 | ||
Fan motor power (kW) | 1.1 | 1.5 | 3 | 3 | 5.5 | 5.5 | 7.5 | 无 | 无 | ||
weight KG | Type A (with ash hopper) | 1120 | 1480 | 1780 | 2030 | 2590 | 3080 | 3520 | 3750 | 4060 | |
Type B (without hopper) | 1000 | 1340 | 1610 | 1830 | 2360 | 2790 | 3160 | 3260 | 3360 | ||
Overall dimension | Type A (with ash hopper) | 1440x400 x4310 | 1440x760 x4310 | 1440x1120 x4310 | 1440x1460 x4380 | 1440x1820 x4580 | 1440x2160 x4730 | 1440x2520 x4960 | 3870x2840 x7650 | 4670x2840 x7650 | |
Type B (without hopper) | 1440x400 x2500 | 1440x760 x2500 | 1440x1120 x2500 | 1440x1460 x2500 | 1440x1820 x2500 | 1440x2160 x2500 | 1440x2520 x2500 | 3870x2840 x4230 | 4670x2840 x4230 |
