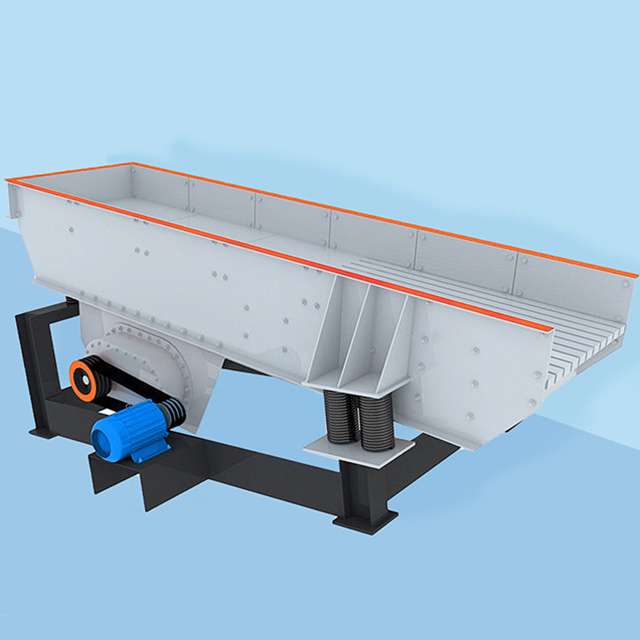

ZSW Vibrating Feeder

ZSW vibrating feeder

Product introduction: Our ZSW series vibration feeder has 5 specifications according to its groove size, groove width x length is 0.95x3.8m to 1.3x6m, feeding particle size up to 750mm, supporting the main motor 11-22kW, feeding 96-560t per hour, to meet a variety of production needs.

Feeding capacity: 96-560t/h

Model: ZSW-380×95-ZSW-600×130

Motor power: 11-22kW

Application: construction, metallurgy, chemical industry, etc

ZSW vibrating feeder product introduction

ZSW series vibrating feeder is mainly used for continuous and uniform feed before coarse breaking crusher, and can screen fine material at the same time. Increase the crusher capacity. Linear motion trajectory vibration balance special grid design, can prevent material clogging, grid gap adjustable. Optional stepless speed regulating motor, easy to control the feed amount, no need to start the motor frequently.

Outstanding advantage

1. The principle design of vibration excitation force generated by shaft eccentric vibration is mainly used for coarse crushing crusher before feeding;

2, The vibration is stable, the feeding is continuous and uniform, avoid the phenomenon of crash, extend the service life of the equipment;

3, In the feed at the same time, can pre-screen fine material, improve the crushing efficiency;

4, Grid gap can be adjusted to prevent material clogging;

5, Optional speed control motor to control the feed amount, no need to start the motor frequently.

Working principle

ZSW series vibration feeder is mainly composed of vibration frame, spring, vibrator, motor vibration frame and motor. The exciter is composed of two eccentric shafts in a specific position with gear meshing, and the two gears must be meshed according to the mark when assembled. Through the motor drive, the two eccentric shafts rotate, resulting in a huge linear exciting force, so that the body on the support spring to do forced vibration, the material is the vibration as the power, sliding and throwing motion on the trough, so that the material forward to achieve the purpose of feeding. When the material passes through the sieve bar on the tank body, the smaller material can fall through the gap without going through the next crushing process.

Technical parameter
