Biaxially Oriented Film/battery Separator Series Production Line

The two-way stretch film production line can production and processing of BOPP/BOPET/BOPE BOPA/BOPS/BOPI/BOPLA etc., is a extruder extrusion and stretch forming sheet, then through vertical and horizontal directions of stretching, so called two-way stretch production line by vertical drawing machine and cross machine under the action of external force, A certain multiple of stretching is carried out successively along the longitudinal and transverse directions, so that the molecular chains or crystalline surfaces are oriented in a direction parallel to the film plane and arranged in an orderly manner. Then, heat setting is performed under the tensioning state to fix the oriented macromolecular structure. Finally, after cooling and subsequent processing, the film can be obtained. Due to the stretching of molecular orientation, this film has good physical stability, mechanical strength, air tightness, high transparency and gloss, and is tough and wear-resistant.
Availability:
Quantity:

Equipment parameters

Machine model TJ-SLM1200 TJ-SLM2400 TJ-SLM4800 TJ-SLM6200 TJ-SLM8700
Raw material PP/PET/PS/PA PP/PET/PS/PA PP/PET/PS/PA PP/PET/PS/PA PP/PET/PS/PA
Product thickness (μm) 10-50 10-50 10-50 10-50 10-50
Product width (mm) 1200 2400 4800 6200 8700
Linear velocity (m/min) 100-300 100-300 100-300 100-300 100-300

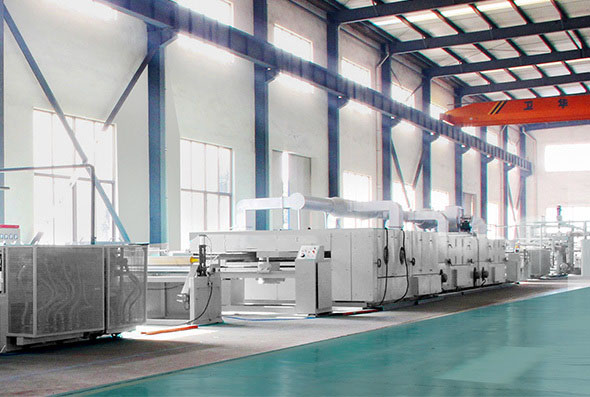

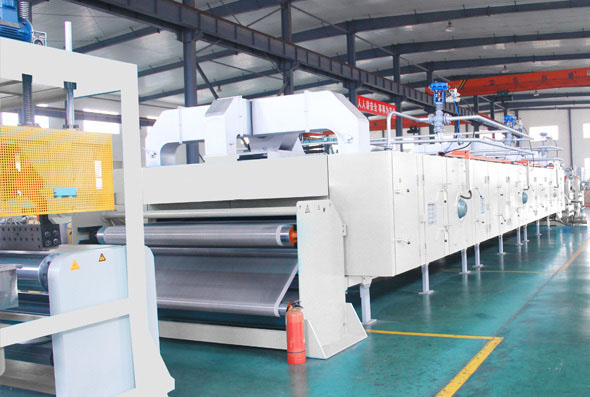

Equipment display

a892078d-ccdf-4d25-bbe2-7b30c3b93acbe2a62e7a-a40f-466d-957a-f674fb2c88b3.jpg_1180xaf

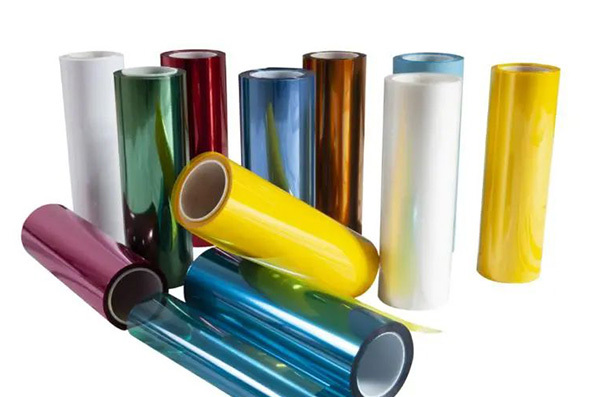

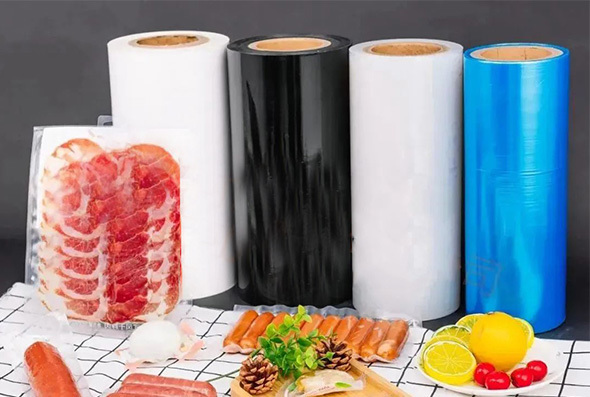

Product display

bba0bc77-c02c-4bd6-8d9e-0f801e1f581b55635b4a-0a2a-4c00-b14a-ab6690c5a0da.jpg_1180xaf250ab93e-2a98-4d9a-98f4-25385b17e40ac6978da4-9825-445d-9d07-b63492b50177f5d54ea3-efbb-4696-afe7-1d9776b3ca55.jpg_1180xaf
