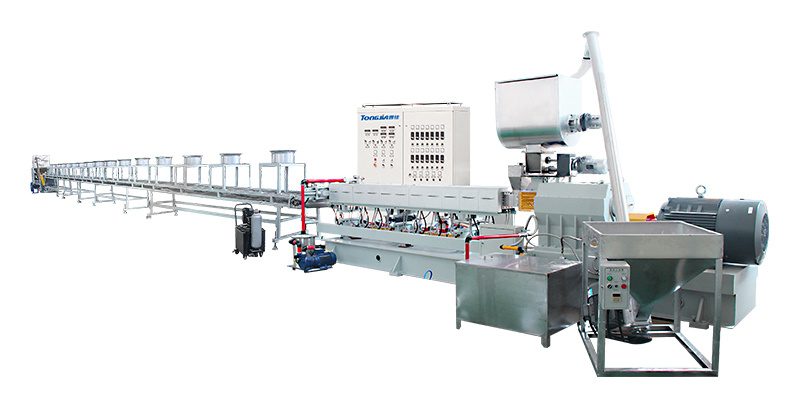

Bio-based Degradable Material Modified Granulator

The modular screw components are precisely designed by computer for the screw configuration. The length-to-diameter ratio is increased, and the structure can be adjusted according to the process requirements to optimize the configuration. The screw element and the mandshaft are connected by involute splines to achieve higher torque and larger screw volume. The material of the screw element is high-quality alloy steel W6Mo5CrlV2, and the material of the core shaft is 40CrNiMoA. There are double alloy bushings on the inner and outer sides of the cylinder, which can be used for various operations. The vacuum exhaust type barrel enables the moisture in the material to fully evaporate, reducing the moisture content of the particles.
Availability:
Quantity:

ffee2225-2c7a-4e2b-824f-2ebe98c7d5db

Equipment parameters


Machine model
TJ-ZL75P TJ-ZL95P
Screw diameter mm ø75×2 Ø95×2
Number of screws 根(piece) 2 2
Rotational speed r/min 1-500 1-500
Host power KW 132/160 280
Cooling method Air-cooled
Length-to-diameter ratio 48:1/52:1 48:1/52:1
Heating power (approximately) KW 80 150
Extrusion output kg/h 300-600 500-800

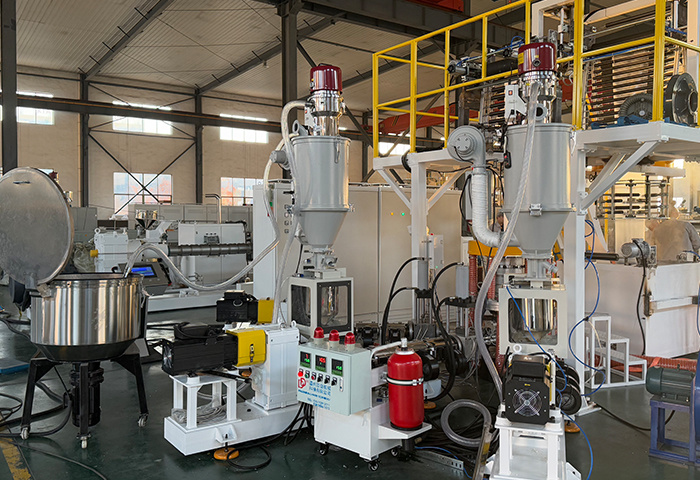

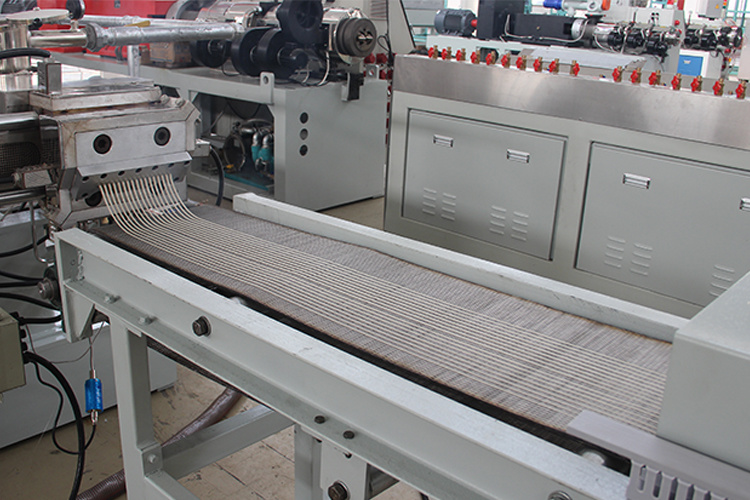

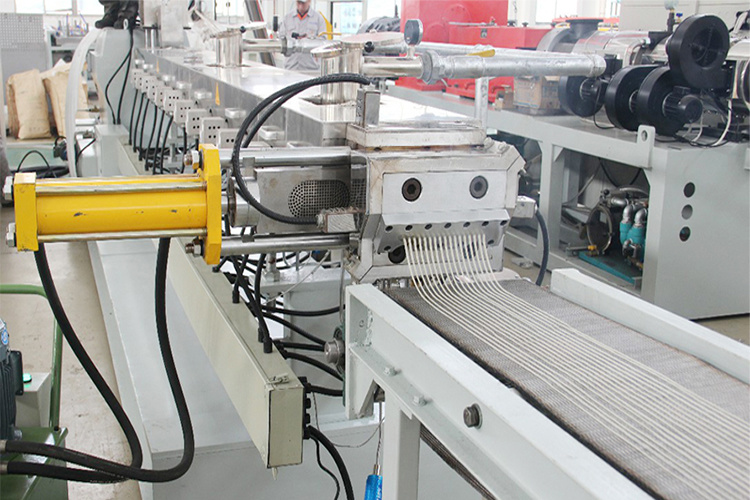

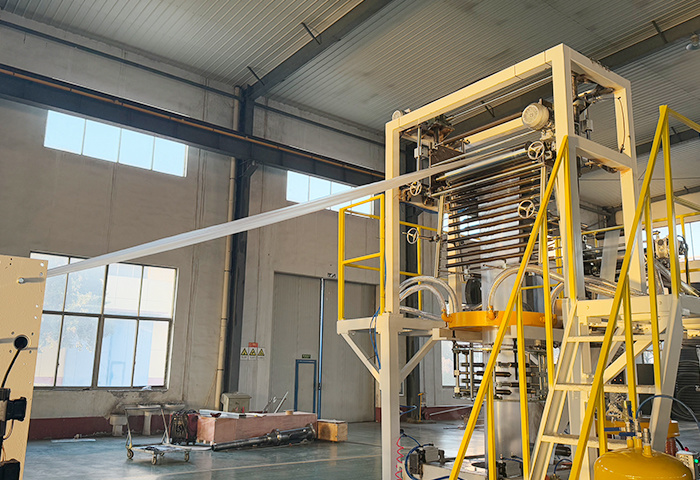

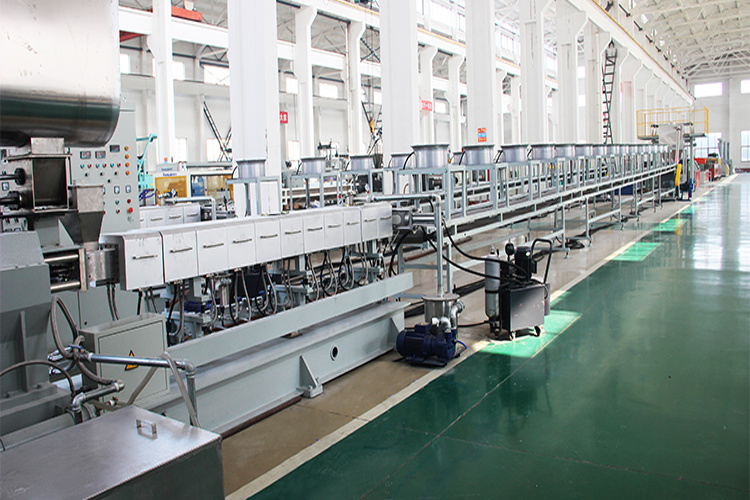

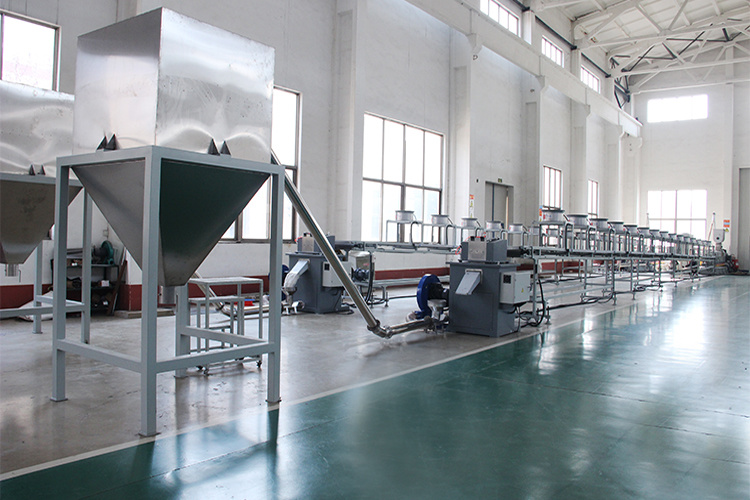

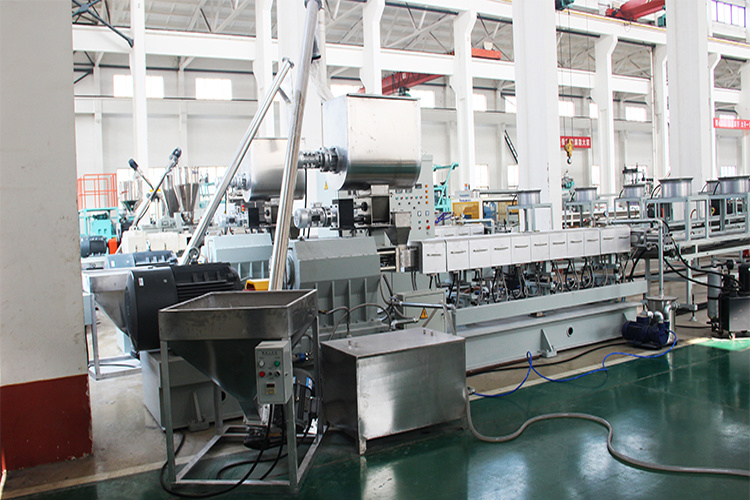

Equipment display

857ecc4e-3e0b-4a2f-b4ab-95f1d344a4997e86433d-5ee9-4627-9503-b51337d02438fee3cd1d-0b17-4dd7-a0d7-d6b7ca9ade3051816e69-4169-4d7a-9e4a-1e3a5233ce95c60023e4-fe0d-4d22-9119-03d17b73ff2cd047af94-8eb7-44a6-9bb6-6bb7d39b9ddfe1030e86-15a5-4676-a8cd-9dbe8e05e719f28a86b2-47eb-4c22-8bfd-3390a19cfaab

Product image

4fc07236-7127-4e8e-b86d-de3487235255
