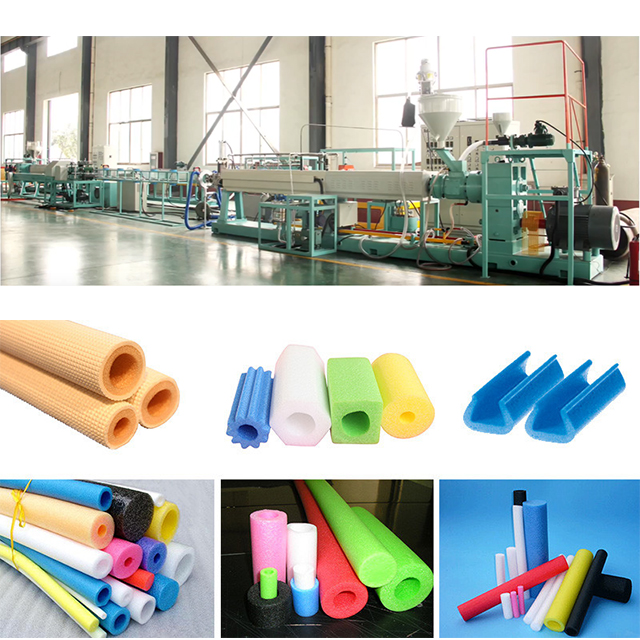

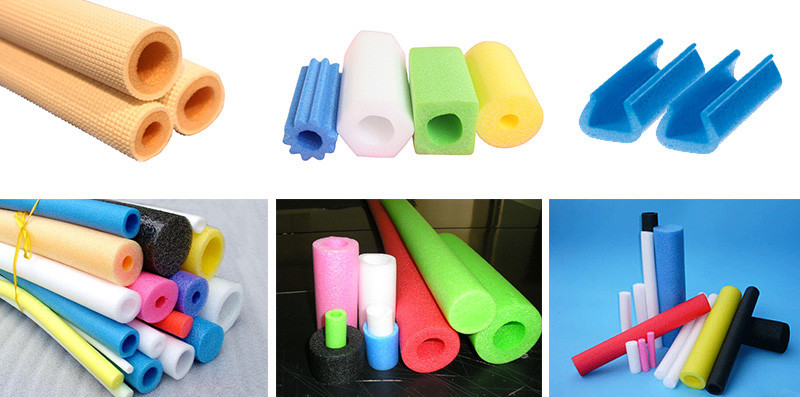

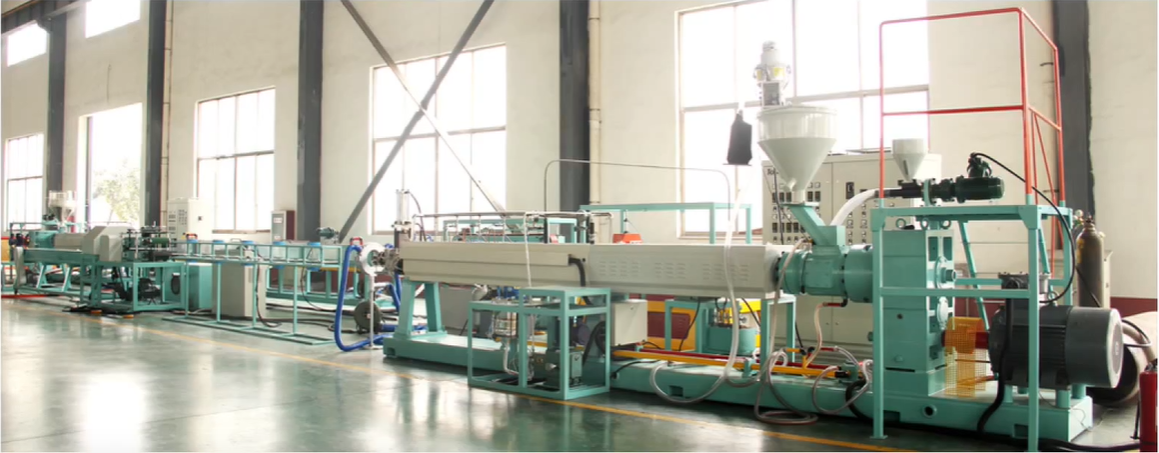

EPE physical foaming pipe (rod, profile) material production line
Equipment parameters | |||||||
Type | TJ-FPG/B55 | TJ-FPG/B65 | TJ-FPG/B75 | TJ-FPG/B90 | TJ-FPG/B105 | TJ-FPG/B120 | |
Extruder | φ55/40 | φ65/40 | φ75/50 | φ90/55 | φ105/55 | φ120/55 | |
Screw rotational speed | r/min | 5-75 | 5-75 | 5-75 | 5-75 | 5-75 | 5-75 |
Foaming ratio | times | 20-30 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 |
Product Specifications | mm | φ10-35 | φ10-40 | φ10-60 | φ20-80 | φ20-100 | φ20-120 |
Cooling method | Air-cooled, water-cooled | ||||||
Installed capacity (approximately) | KW | 45 | 50 | 65 | 90 | 100 | 120 |
External dimensions (approximately) | m | 12×1.3×1.7 | 15×1.3×1.7 | 16×1.3×1.7 | 18×1.6×1.7 | 20×1.8×1.8 | 22×1.8×1.8 |
Total weight (approximately) | T | 4 | 5.5 | 6 | 8 | 9 | 10 |
EPE physical foaming pipe (rod, profile) material production line
Equipment parameters | |||||||
Type | TJ-FPG/B55 | TJ-FPG/B65 | TJ-FPG/B75 | TJ-FPG/B90 | TJ-FPG/B105 | TJ-FPG/B120 | |
Extruder | φ55/40 | φ65/40 | φ75/50 | φ90/55 | φ105/55 | φ120/55 | |
Screw rotational speed | r/min | 5-75 | 5-75 | 5-75 | 5-75 | 5-75 | 5-75 |
Foaming ratio | times | 20-30 | 20-40 | 20-40 | 20-40 | 20-40 | 20-40 |
Product Specifications | mm | φ10-35 | φ10-40 | φ10-60 | φ20-80 | φ20-100 | φ20-120 |
Cooling method | Air-cooled, water-cooled | ||||||
Installed capacity (approximately) | KW | 45 | 50 | 65 | 90 | 100 | 120 |
External dimensions (approximately) | m | 12×1.3×1.7 | 15×1.3×1.7 | 16×1.3×1.7 | 18×1.6×1.7 | 20×1.8×1.8 | 22×1.8×1.8 |
Total weight (approximately) | T | 4 | 5.5 | 6 | 8 | 9 | 10 |
