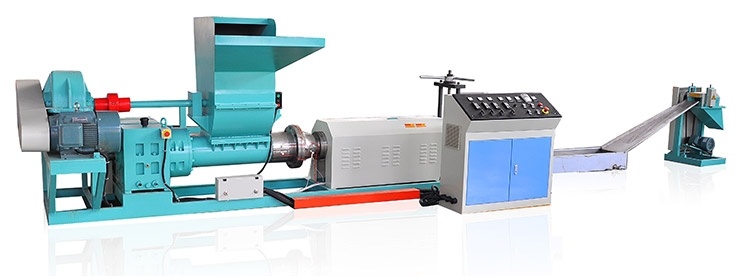

EPE Recycling Granulator

The modular screw components are precisely designed by computer for the screw configuration. The length-to-diameter ratio is increased, and the structure can be adjusted according to the process requirements to optimize the configuration. The screw element and the mandshaft are connected by involute splines to achieve higher torque and larger screw volume. The material of the screw element is high-quality alloy steel W6Mo5CrlV2, and the material of the core shaft is 40CrNiMoA. There are double alloy bushings on the inner and outer sides of the cylinder, which can be used for various operations. The vacuum exhaust type barrel enables the moisture in the material to fully evaporate, reducing the moisture content of the particles.
Availability:
Quantity:

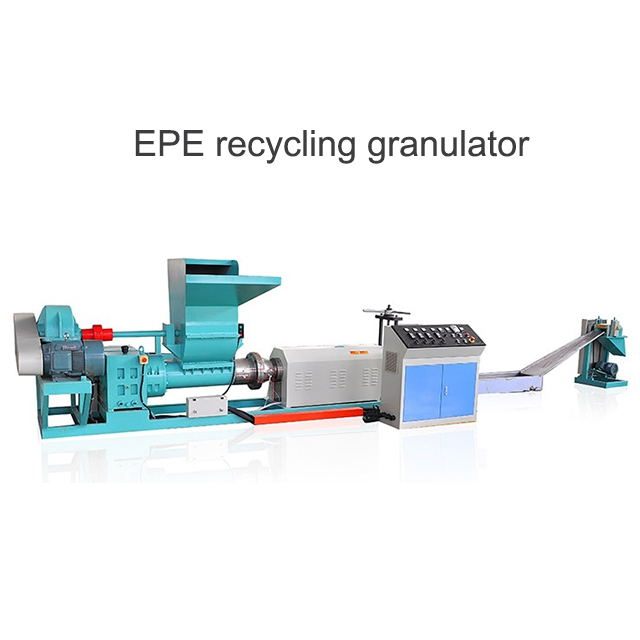

EPE recycling granulator

b0398b5c-edd0-4bc3-baa1-0ffcbde69c5a

Equipment parameters
Type TJ-EPE-HS100B
Raw materials EPE
Crushing (feeding) power mm 11
Screw diameter KW φ100
Motor power KW 11
Heating power KW 42
Length of the cooling water tank m 2.4
Granulation power KW 1.5
External dimensions (approximately) m 18×2×1.8
