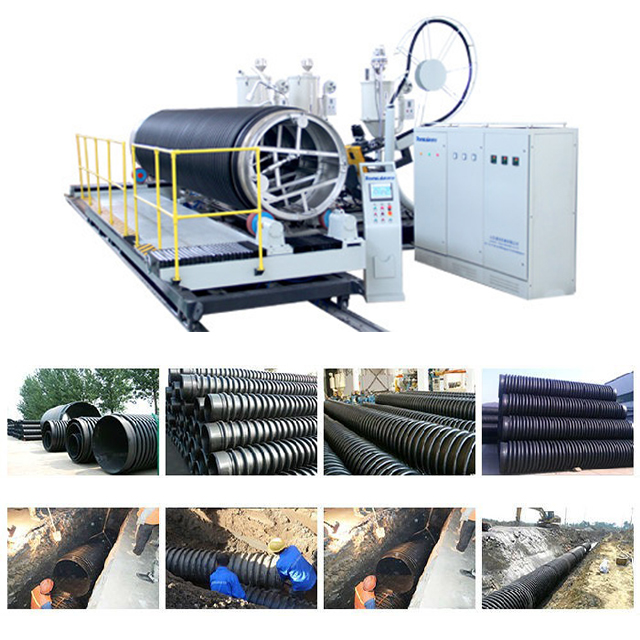

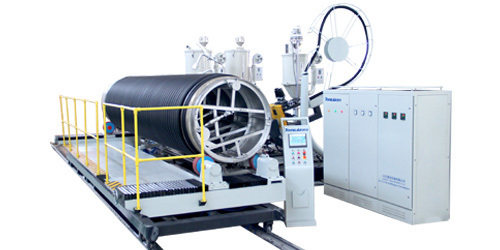

Equipment for Large-diameter Polyethylene (PE) Wound Structure Wall Pipes (corrugated Pipes)

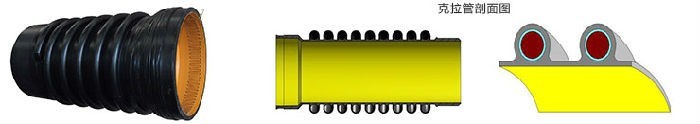

The production line uses high-density polyethylene (HDPE) resin as the main raw material, adopts the hot state winding forming process, and is formed with polypropylene (PP) single-wall corrugated pipe as the supporting structure to produce B-type structural wall pipes with high external pressure resistance. It is commonly known as corrugated pipe (treasure house pipe) in China. The inner surface of the pipe is smooth, and the outer part is a circular reinforcing structure with high ring stiffness and strong impact resistance. It is sealed and connected by heat fusion, which is truly a flexible pipe. The production line adopts a PLC control system with a human-machine dialogue intelligent interface, making operation simple.
Availability:
Quantity:

Equipment parameters
Type TJPE-2000 TJPE-3000 TJPE-4000
Pipe specification mm 8300-02000 8300-03000 81500-84000
Maximum production speed m/min 0.35 0.35 0.1
Total installed power KW 320 450 640
The production line occupies an area m×m 38×16 38×16 38×16

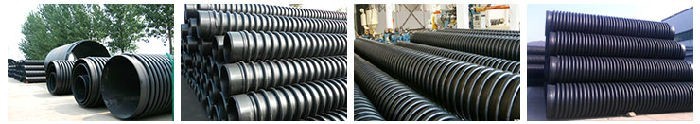

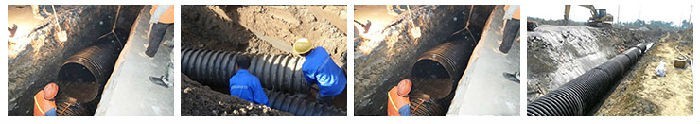

Product application

8ccf8980-2abf-4d6d-ac54-790e3eee3658.jpg_1180xafa1012339-32e4-48a9-b8ee-0f0e44d72943d0afa5fd-162f-4b5a-bb58-2ff6e55e07ead8fbb286-20dc-4b2a-8659-3d5694e224be
