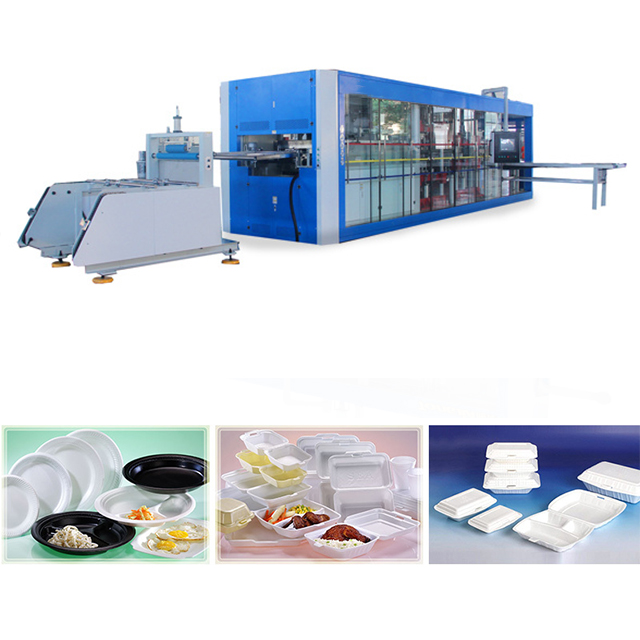

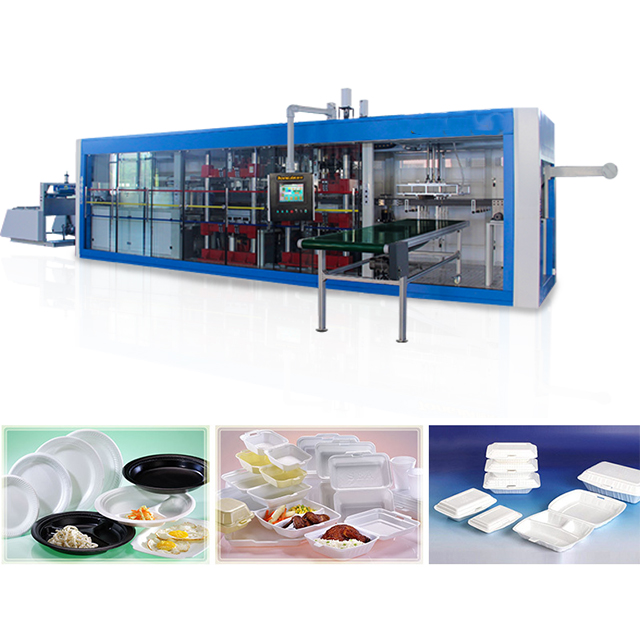

Fully Automatic High-speed Vacuum Forming Machine

This machine adopts a fully computerized digital forming system, with PLC mechatronic fully automatic control and touch screen control of various action programs. It is convenient to operate, material-saving and has high production efficiency. It features reliable stability, large forming area, easy operation, fast forming speed and high degree of automation. This unit is a plastic sheet forming equipment that integrates sheet feeding, heating, forming, punching and shearing, stacking and edge finishing in one go. This machine is suitable for the molding of plastic sheet materials such as HIPS, PS, PP, PE, PVC and PET, and is used to produce various packaging products such as boxes, plates, cups, bowls and LIDS.
Availability:
Quantity:

Equipment parameters

Machine model TJ-ZXC600/900 TJ-ZXC1100/1250
Sheet width mm 500-700 1000-1200
Maximum forming area mm 600×900 1000×1200
Maximum forming height mm 120 120
Heating power kw 53 100
Production efficiency Sec/mold 3-5 3-5
Gas source mpa 0.8-1 0.8-1
Installation area of punching and shearing dies mm 640×1080 1100×1250
Effective punching and shearing area mm 620×900 1000×1200
Maximum punching and shearing height mm 150 150
Punching and shearing pressure T 50 80
Installed capacity (approximately) kw 90 200
External dimensions (approximately) m 14×2.2×2.1 16×2.6×2.3
Machine weight (approximately) T 8 12


Equipment display

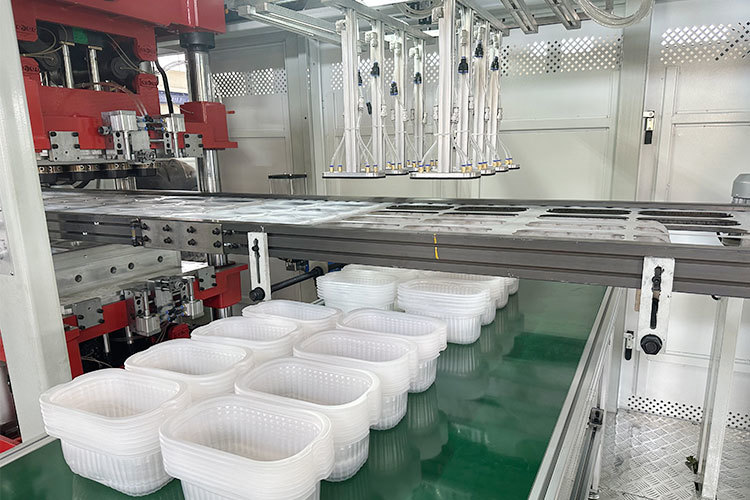

f8309fb2-5c9f-4152-bab8-4f4b2715bec1

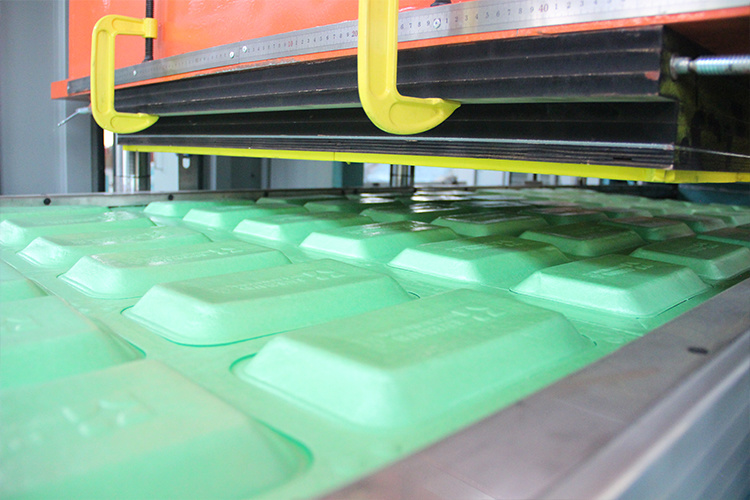

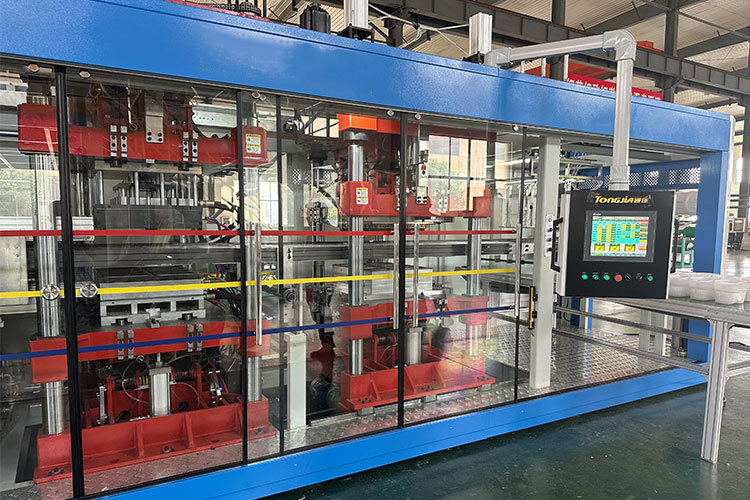

7193955a-d298-4ed9-925d-b9359fa9605bfa8635cf-86fa-43a6-9bcf-ad5991d195d2

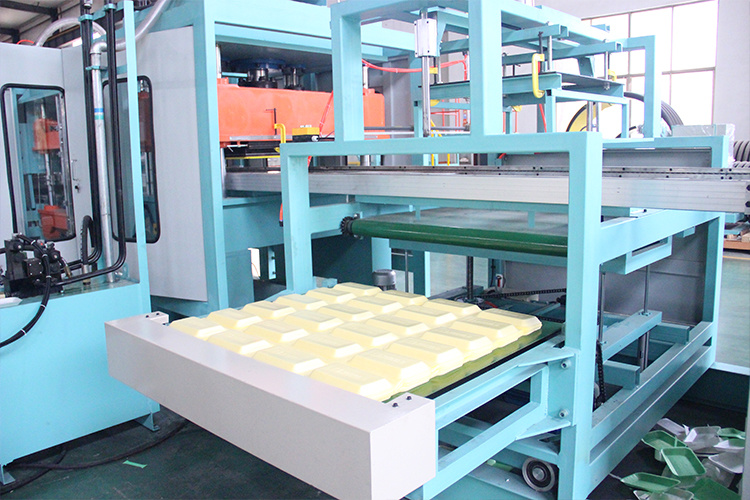

bd279bab-1668-4d26-8086-d90b2f737379

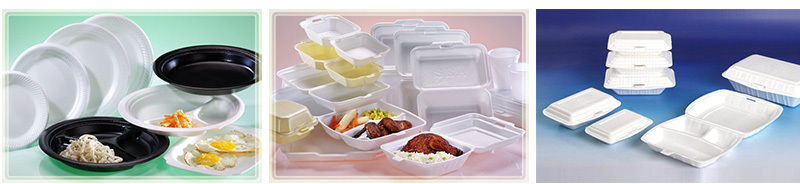

Product application

f24dcdbd-546b-46a4-9fb8-bb5720e3d1a5
