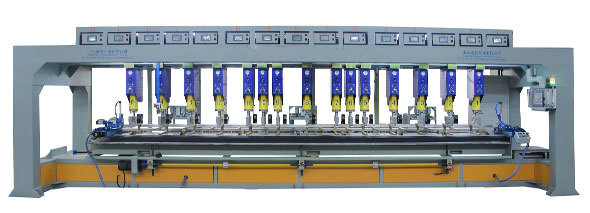

Geocell Welding Machine

This machine can efficiently, rapidly and with high quality perform ultrasonic welding and fusion of special-specification plastics (PP, PE, PVC), and is suitable for tensile and anti-corrosion square/long-hole grid mesh materials in expressways, municipal engineering, land reclamation from the sea, embankment protection and dam construction, etc.
Availability:
Quantity:

Equipment parameters

Model TJ-HJ6000
Frequency Hz 50
Rated input current A phase 70
Rated input power KW 36
Weldable material plastic PP/PE/PVC
Maximum working frequency time/min 10
Ultrasonic generator team 15
The length of the weldable grid working mesh mm ≤6000
Required air pressure Mpa/cm2 0.6~0.9
Pneumatic flux M3/S 4.2
Overall machine weight (approximately) T 5.2
Overall dimensions (length × width × height)(approximately) m 8.2×2.2×2.1

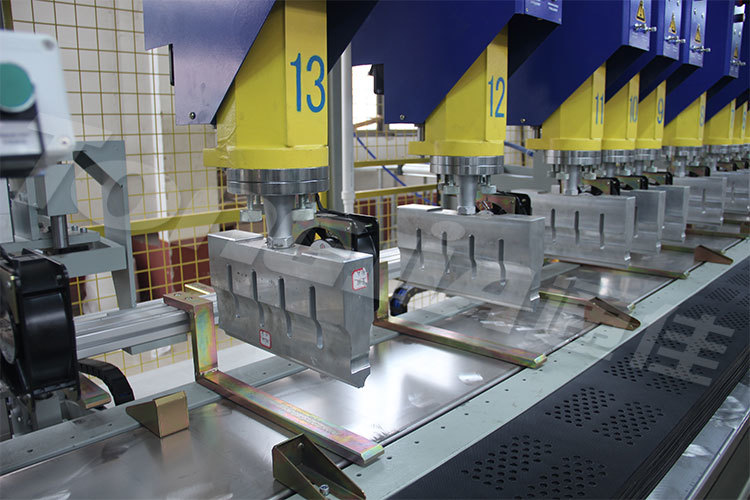

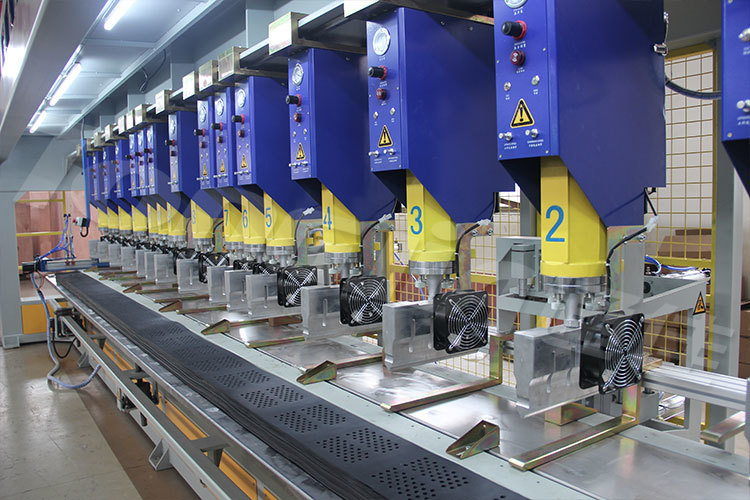

Equipment display

3

ec75fad2-b558-4b86-a939-85762a38fe3e7fafa178-4daa-4e58-88ef-561d6ef529b8

c43eea60-62ed-466d-a6c3-ddf17b0f0a59

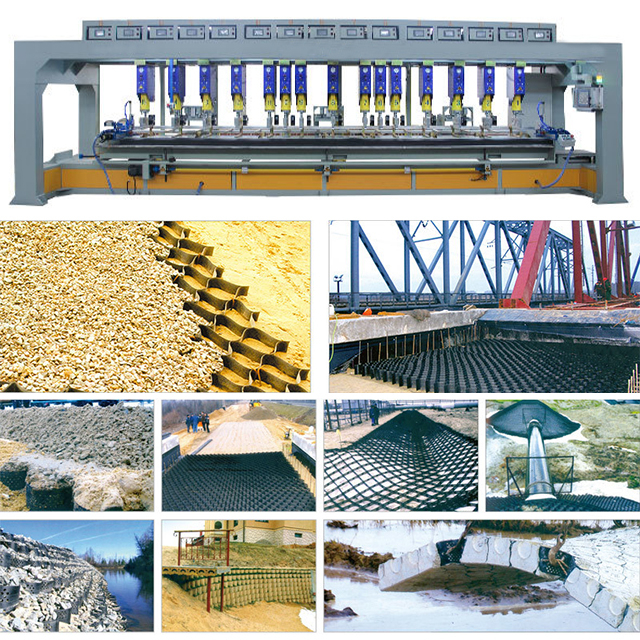

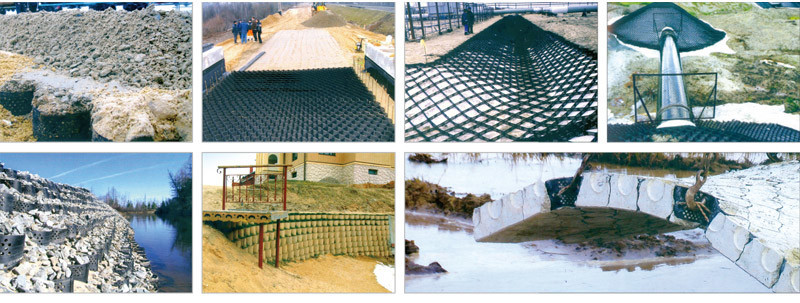

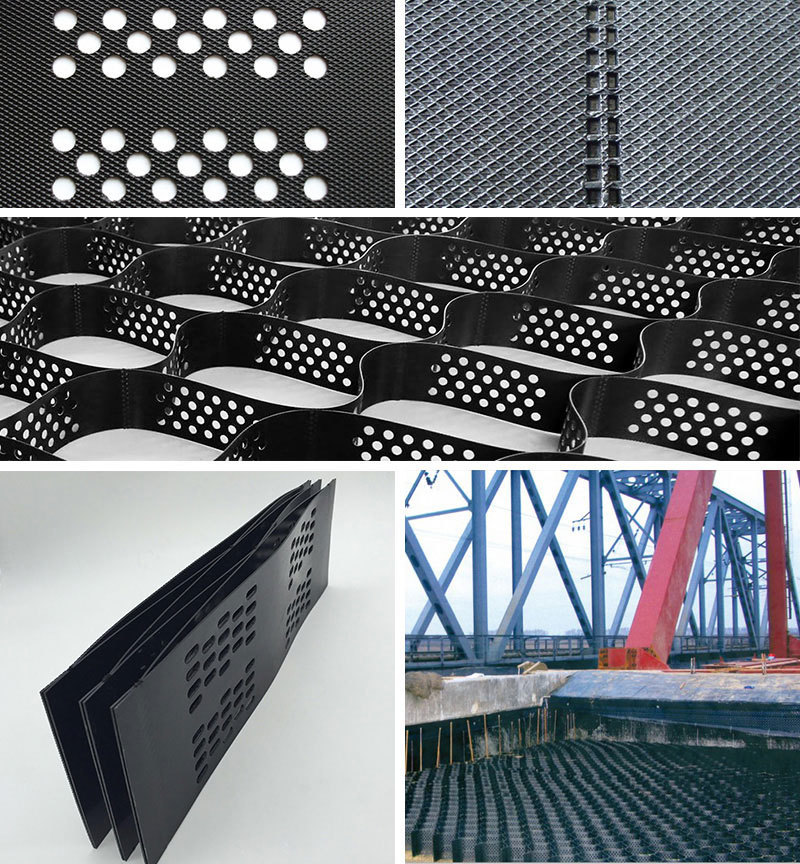

Product application

0d0f2ef7-3536-494c-8559-dd2c574dd859e7f30a76-304a-44c4-a2e0-939daf949554
