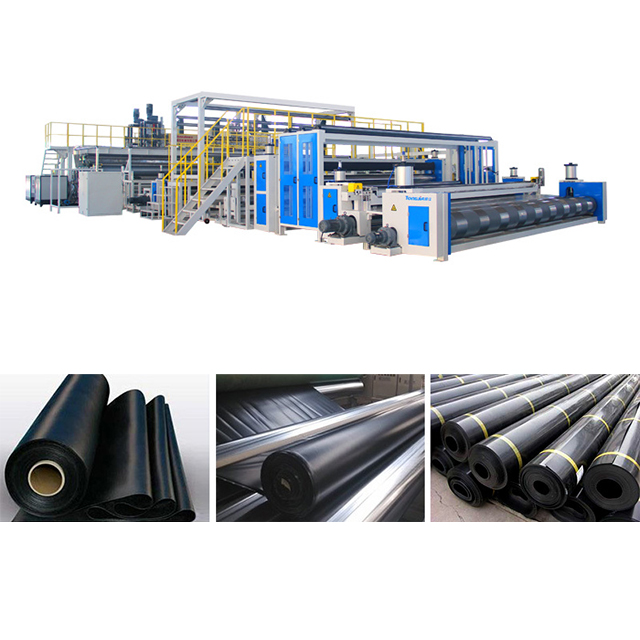

Geomembrane Waterproof Membrane Production Line

HDPE geomembrane is a waterproof and barrier material produced from medium and high-density polyethylene resin. Its full name is "high-density polyethylene geomembrane". It has excellent resistance to environmental stress cracking, low-temperature resistance, anti-aging, and corrosion resistance, as well as a wide operating temperature range (-60 to +60) and a long service life of 50 years. It is widely used in anti-seepage projects such as municipal solid waste landfills, solid waste landfills, sewage treatment plants, artificial lakes, and tailings treatment
Availability:
Quantity:
Product parameters
Specification and model TJ-TGM3000 TJ-TGM4000 TJ-TGM5000 TJ-TGM6000 TJ-TGM8000
Product width 3000mm 4000mm 5000mm 6000mm 8000mm
Sheet thickness 0.7-3mm,1-3mm
Screw diameter φ120 Φ150 φ150×2 ①160×2 ①180×2
Length-to-diameter ratio 33:01:00
Diameter of the pressure roller φ400 φ500 φ600 Φ700 φ800
Production line speed 1-5m/min(Sheet material)2-10m/min(Coating)

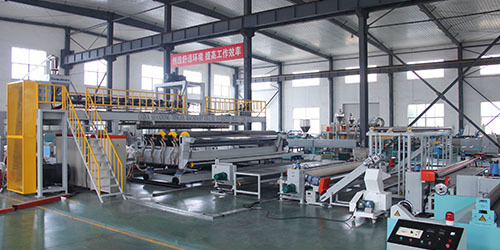

Equipment display


010fc533-a149-486b-9579-73f11c62316d

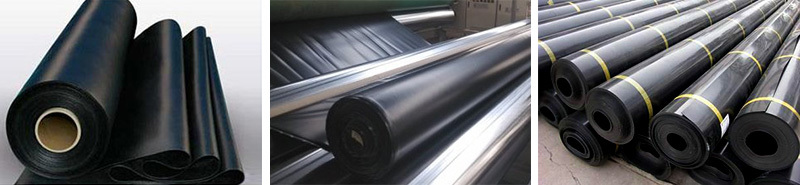

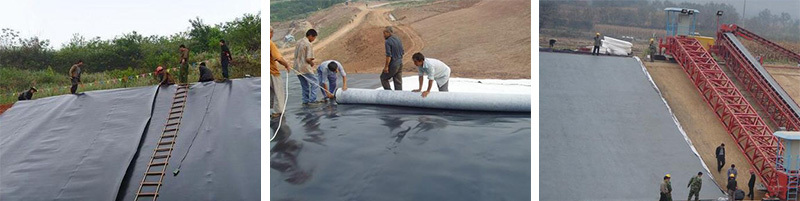

Product application

a8431c66-710c-4c9f-a369-d10af85999c0

e412f77b-563b-4ef7-b897-e4a36f931348
