PE Adhesive Stretch Film Equipment

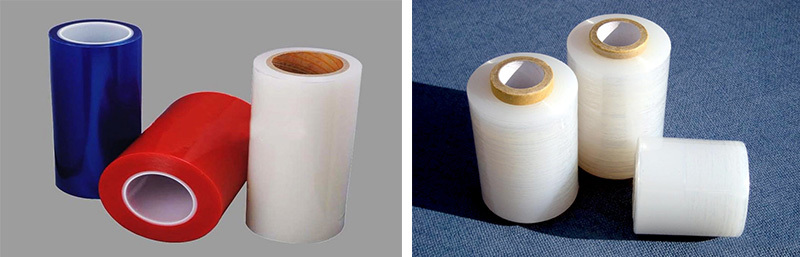

Stretch film, also known as winding film (also called elastic film), is a transparent, elastic and strong soft polyethylene plastic film. It can be cold-stretched in both longitudinal and transverse directions without heating. Relying on its own self-adhesiveness, it can be used to package household appliances, precision instruments, bicycles, motorcycles, high-end furniture, etc., and can keep the goods under tension for a long time without loosening.
Availability:
Quantity:
Inquire Add to Basket

Equipment parameters
Item Double-sided adhesive Single-sided adhesive
Type TJ-CRM45A TJ-CRM65A TJ-CRM80A TJ-CRM45B TJ-CRM65B TJ-CRM80B
Screw diameter mm φ45 中65 中80 Φ45/45 中65/65 Φ80/55
Length-to-diameter ratio L/D 33:01:00 33:01:00 30:01:00 33:01:00 33:01:00 30:01:00
Extrusion motor power r/min 7.5 22 37 7.5×2 22×2 37×2
Effective width of the die head mm 700 1250 1250 700 1250 1250
Product width (optional) mm 500,600 1000 1000 500,600 1000 1000
Length of mirror roller mm 700 1250 1250 700 1250 1250
Mirror roller traction power KW 2.2 4 8 2.2 4 8
Power of edge waste coiling KW 0.75 1.5 2.2 0.75 1.5 2.2
Winding diameter mm 100-200 100-200 100-200 100-200 100-200 100-200
External dimensions (approximately) m 8×2.4×2.5 9×5×2.8 10×3×4 8×2.4×2.5 9×5×2.8 10×3×4

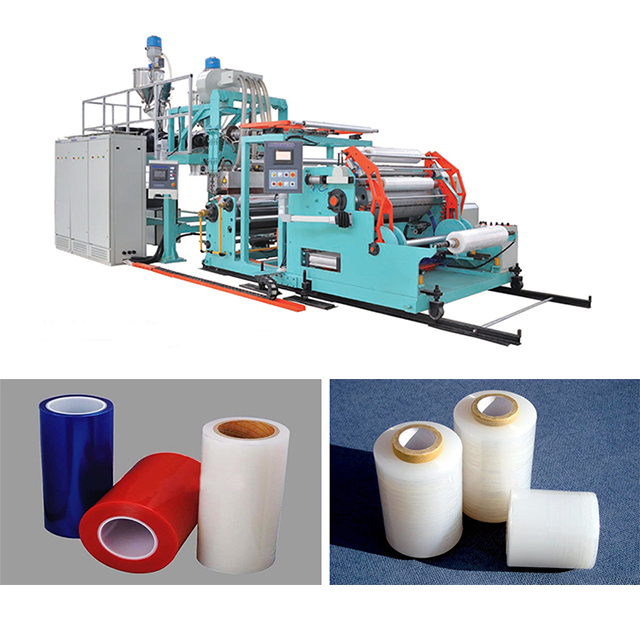

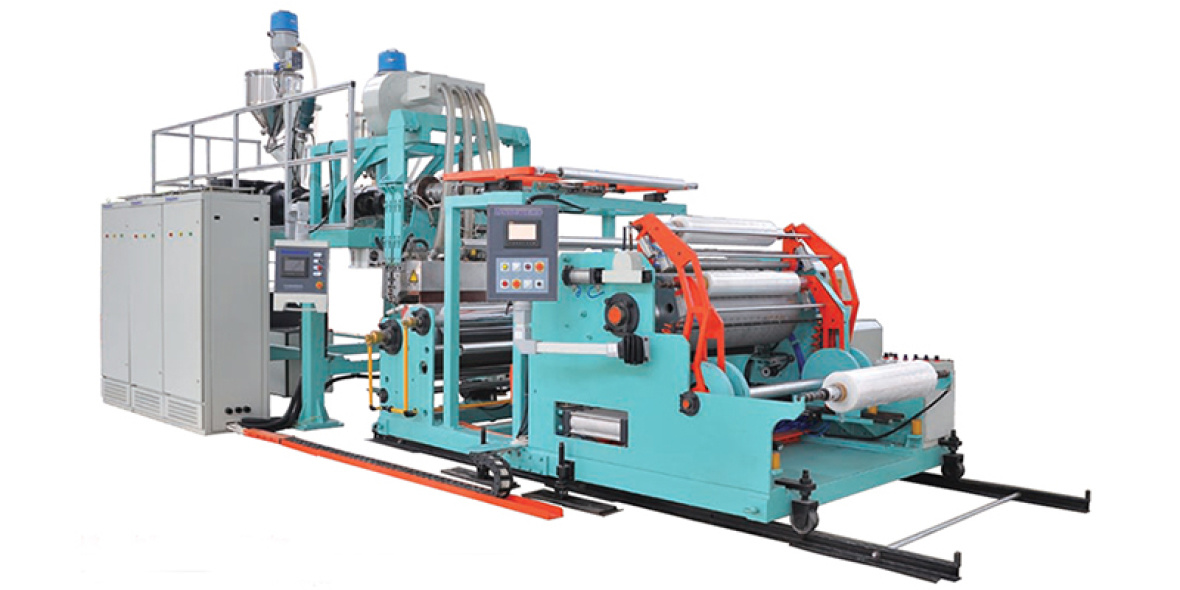

Equipment display

23addfbd-eb9d-45ef-8835-f0353ab5cd9d.jpg_1180xafe2c042e1-a0b4-4e1e-a40d-4fcdacb7b00b
