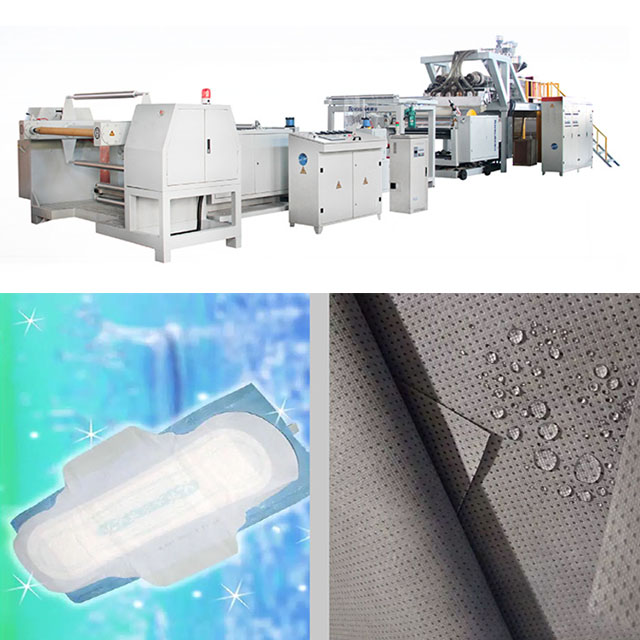

PE Breathable Film Production Line

The breathable film film production line is a combination of cast film equipment and MDO longitudinal drawing equipment, which can produce both cast film and breathable film. Adding approximately 50% Caco3, the breathable membrane, after being formed and subjected to MDO stretching treatment, has a unique microporous structure. These micro-porous structures, which are densely distributed on the surface of the film, allow liquid or water vapor molecules to pass through while blocking the leakage of the liquid. Therefore, it is called a "breathable membrane". The notable feature of the breathable membrane lies not only in its breathability but also in its textile-like feel. It is an ideal choice for the base film of diapers and sanitary napkins.
Availability:
Quantity:

Equipment parameters

Parameters of PE breathable film equipment
Machine model TJ-TQM135 TJ-TQM160 TJ-TQM180
Raw material PE PE PE
Product thickness (mm) 0.02-0.05 0.02-0.06 0.02-0.08
Product width (mm) 1600 2000 2500
Extrusion output (kg/h) 150-300 200-400 300-450
Machine linear velocity (m/min) 20-120 20-150 20-200

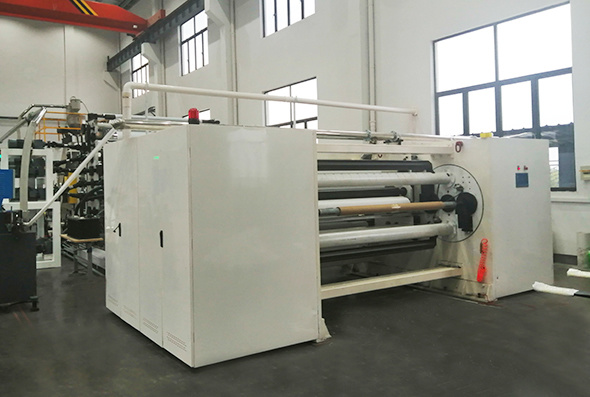

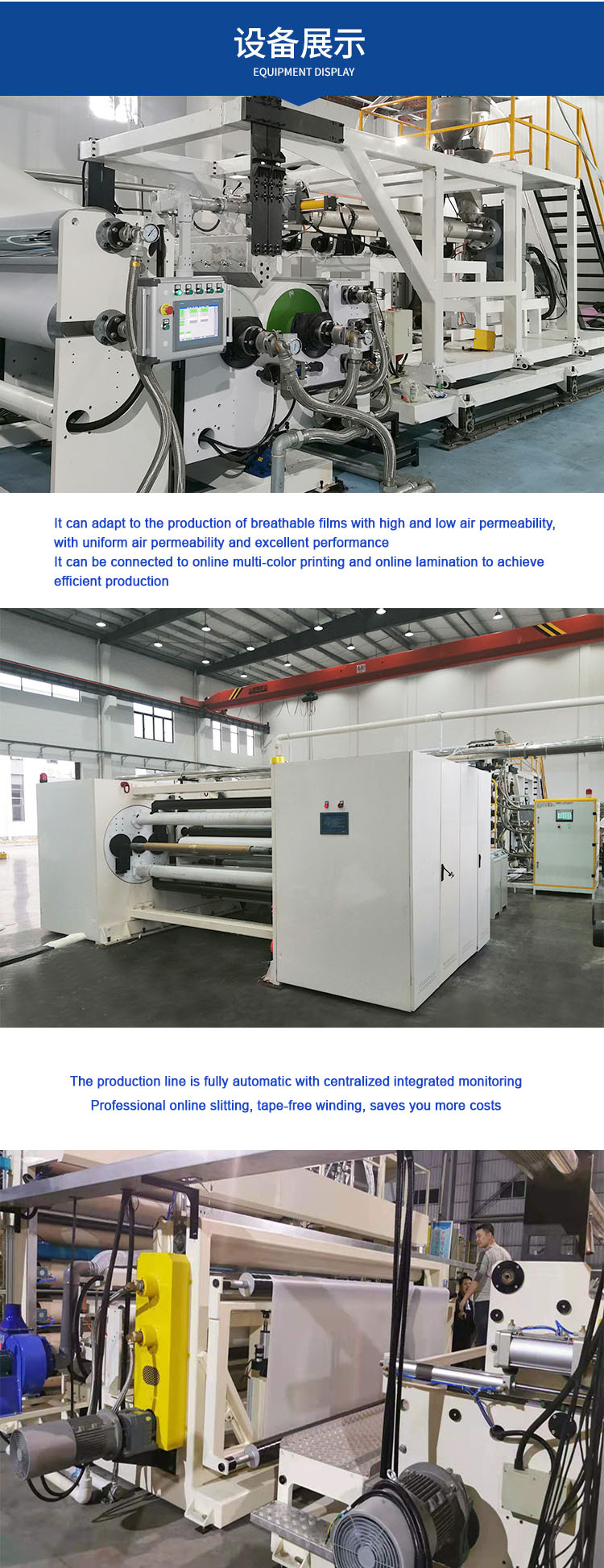

Product display

1

4

f52a644e-9eeb-4e6e-8582-e817fbeb8744.jpg_1180xaf
