PE Plastic Hard Flat Net And Geonet Production Line

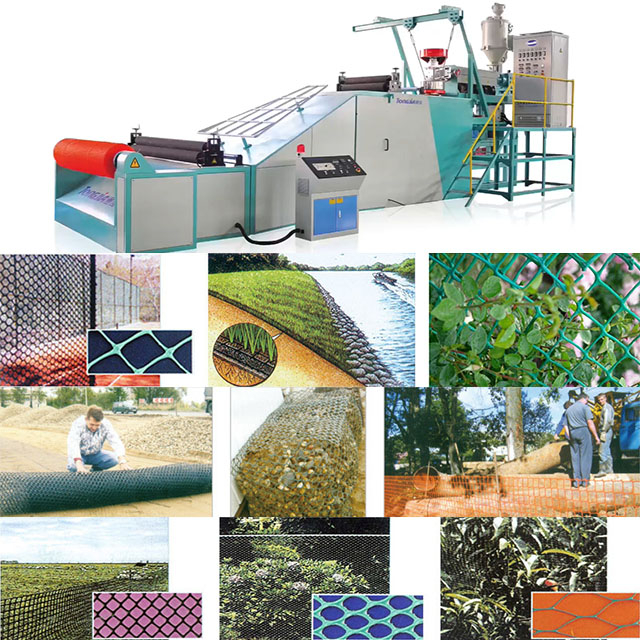

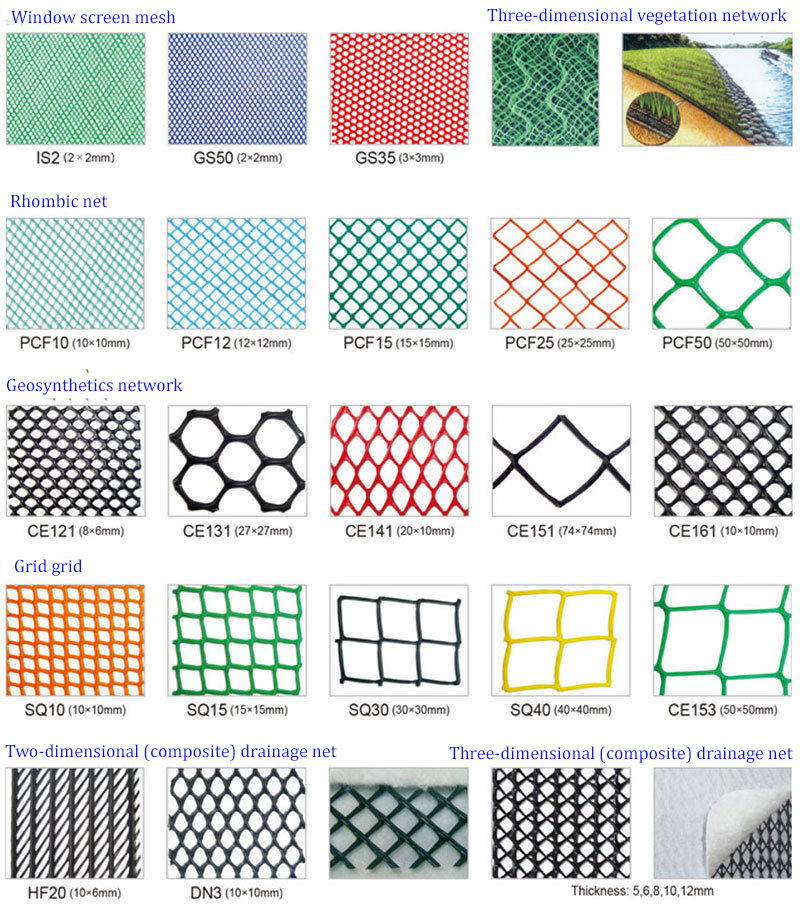

This production line is a specialized equipment for manufacturing plastic hard flat nets mainly made of polyethylene (PE). By changing the die and sizing device, it can produce various net materials with different structures and specifications, which are widely used as spacers for mattresses, anti-landslide of embankments, roadbed reinforcement, plant supports, mine roof protection, livestock and aquaculture. Then, through three-layer composite technology, it forms three-dimensional geosynthetic nets. It is used for slope protection vegetation of roadbeds and DAMS, and thus is also called a universal net.
Availability:
Quantity:

Equipment parameters

Model TJ-YZW65H TJ-YZW90 TJ-YZW120 TJ-YZW150
Extruder 中65/28 φ90/28 φ120/30 Φ150/33
Screw rotational speed r/min 5-40 5-30 5-25 5-20
Product width mm 2000 2500 3000 4000
Installed capacity (approximately) KW 60 86 180 220
External dimensions (approximately) m 9.6×2.9×3.4 12×3.1×3.5 16×3.8×4.2 18×5.2×4.8
Machine weight (approximately) T 5 6 8 10

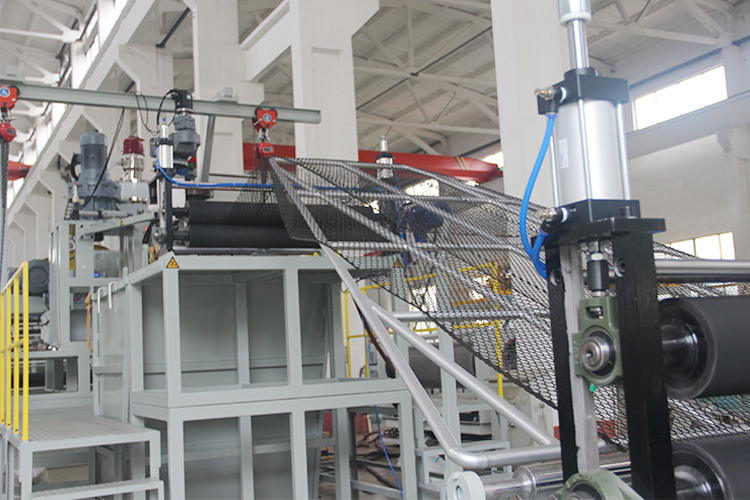

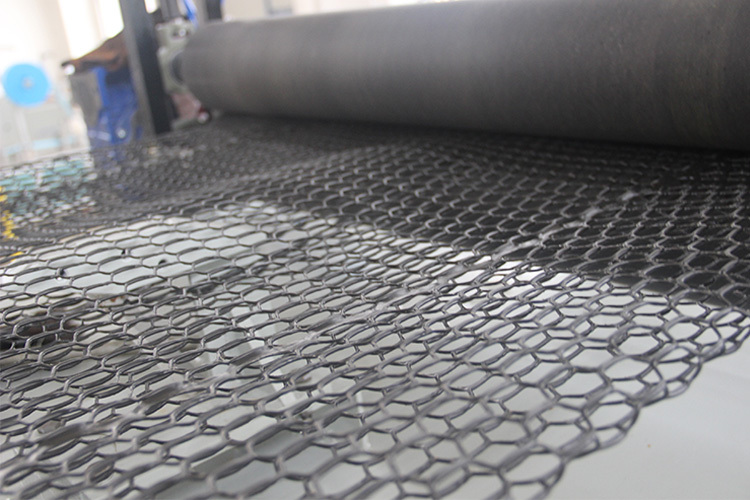

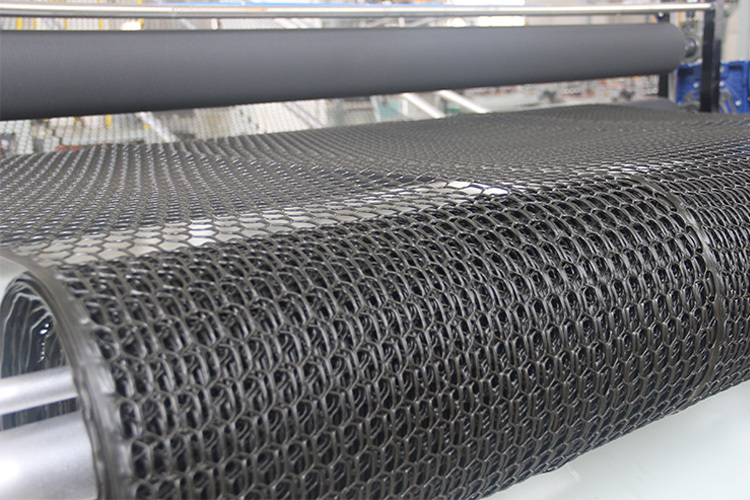

Equipment display

9ff49fd8-a6d8-4219-ad37-cbe50626477d

b7f20c60-7621-4404-86c0-db6dbfc6c2b1

d6c0d56f-a6cb-40df-b775-b28188eb9476

1

d124e2fd-20e8-4fa6-bc4a-cfc1368e73db

3e6ee7a7-c84d-4870-a2c3-b5e3e2a6f4d11c996343-5ebe-4636-ba6b-74304b0dcbc3ed711cc6-05e8-4478-a2e0-7027444e3408
