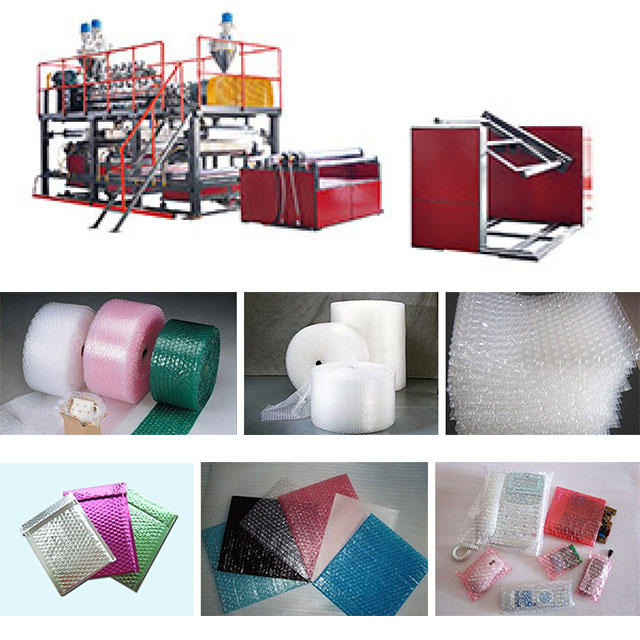

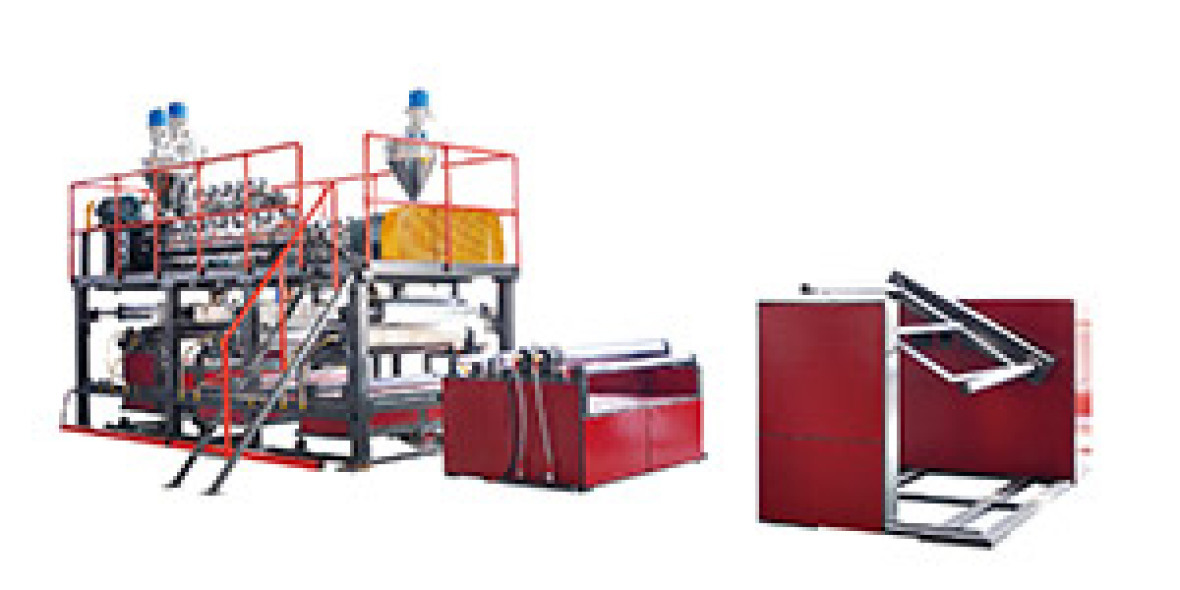

PE Seven-layer Composite Air Cushion Film Equipment

PE air cushion film (also known as polyethylene bubble film) is a commonly used packaging material nowadays. It not only has excellent shock absorption, impact resistance and heat sealing properties, but also has the advantages of corrosion resistance and good transparency. It is widely applied in numerous fields such as electronics, precision instruments, daily necessities, glass, ceramics, household appliances, furniture, hardware products, toys, etc.
Availability:
Quantity:

Equipment parameters
Item PE two-layer composite air cushion film unit PE three-layer composite air cushion film unit PE seven-layer composite air cushion film unit
TYPE TJ-QDM65E TJ-QDM90E TJ-QDM65S TJ-QDM90S TJ-QDM65Q TJ-QDM90Q
Screw diameter mm φ65 φ90 Φ65/45 φ90/65 065/45/65 890/65/90
Length-to-diameter ratio L/D 25:01:00 25:01:00 25:01:00 25:01:00 30:1/25:1/3
0:1
30:1/30:1/3
0:1
Screw rotational speed r/min 5-40 5--30 5-40 5--30 5-40 5--30
Bubble specification mm (5-30)×(3-10) 5-30)×(3-10) (5-30)×(3-10) (5-30)×(3-10) (5-30)×(3-10) (5-30)×(3-10)
Product width mm 600-1200 600-2500 600-1200 600-2500 600-1200 1200-2500
Installed capacity (approximately) KW 40 60 75 110 100 130
External dimensions (approximately) m 8×2.5×2.5 10×3×2.8 8×7×2.5 12×10×2.5 10×3×4 12×4.5×4
Machine weight (approximately) T 3 6 5 9 12 15

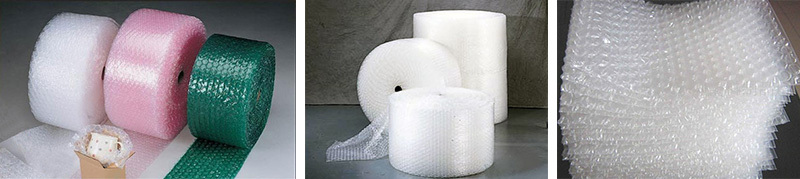

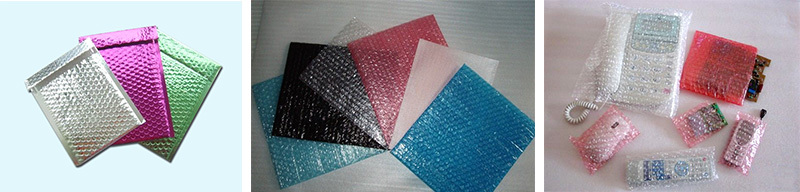

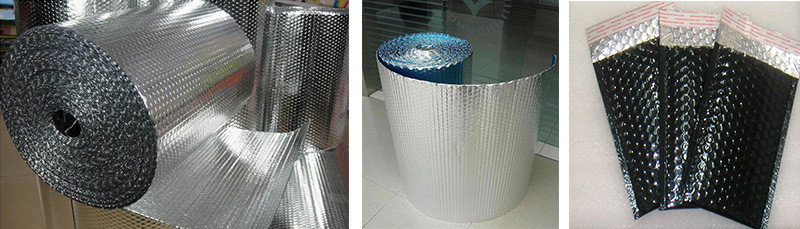

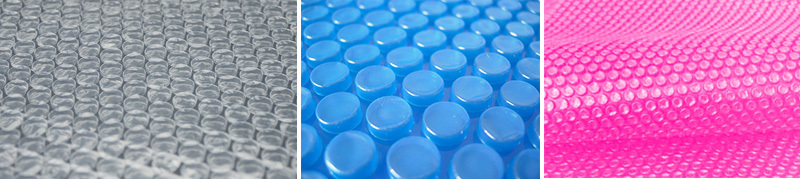

Product application

f745381d-f95d-4864-aaf8-076a2dd73e44.jpg_1180xaf

3cdd4277-7e8f-41a5-9c97-8eb6215e3aaa12d5cd05-4122-42fe-88cf-f2020261f84335a395f0-e5f6-44be-924c-bc84d4699aecc6510426-af84-4d69-abf3-aace80c85eecef6005c9-efb9-4a37-be7c-4681587811ee
