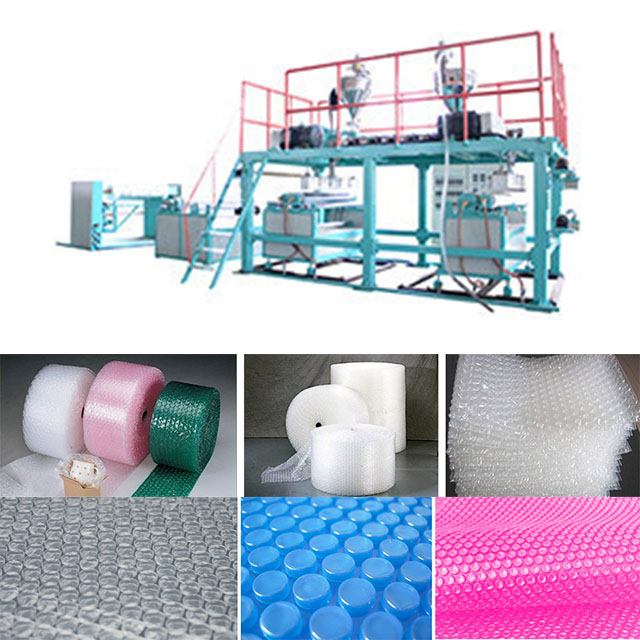

PE two-layer to five-layer composite air cushion film equipment

PE air cushion film (also known as polyethylene bubble film, bubble film, bubble paper, etc.) is a commonly used traditional packaging material at present. It not only has good shock absorption, impact resistance, heat sealing property, but also has the advantages of corrosion resistance and good transparency. By adjusting the process and adding equipment, functional composite packaging products with seven or more layers can be produced. It is widely applied in numerous fields such as electronics, precision instruments, daily necessities, glass, ceramics, household appliances, furniture, hardware products, toys, etc.
Availability:
Quantity:


Equipment parameters
Item PE two-layer composite air cushion film unit PE three-layer composite air cushion film unit
Model TJ-QDM65E TJ-QDM90E TJ-QDM65S TJ-QDM90S
Screw diameter mm Φ65 Φ90 Φ65/45 中90/65
Length-to-diameter ratio L/D 25:01:00 25:01:00 25:01:00 25:01:00
Screw rotational speed r/min 5-40 5--30 5-40 5--30
Bubble specification mm (5-30)×(3-10) (5-30)×(3-10) (5-30)×(3-10) (5-30)×(3-10)
Product width mm 600-1200 600-2500 600-1200 600-2500
Installed capacity (approximately) KW 40 60 75 110
External dimensions (approximately) m 8×2.5×2.5 10×3×2.8 8×7×2.5 12×10×2.5
Machine weight (approximately) T 3 6 5 9

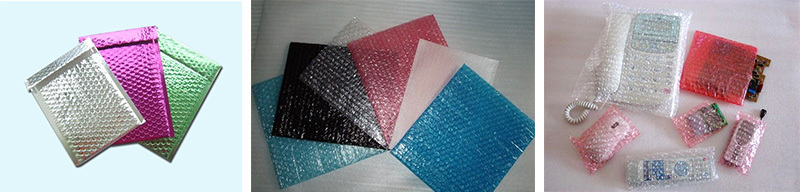

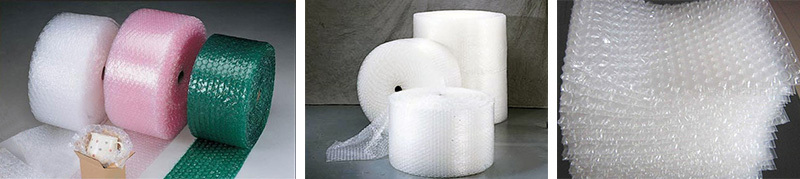

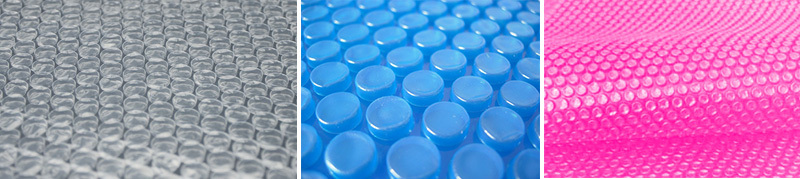

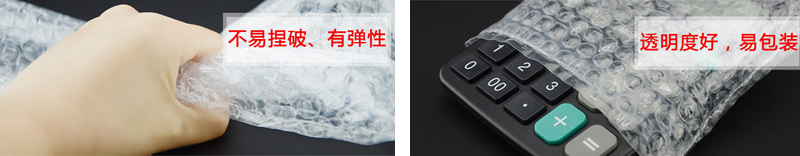

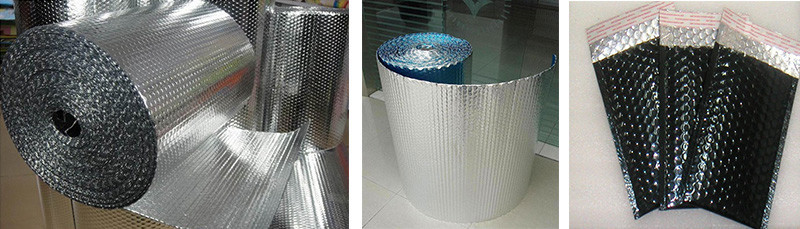

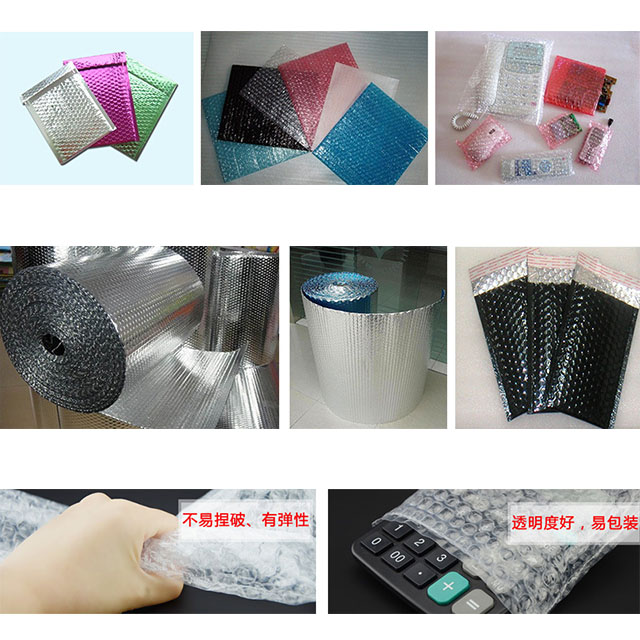

Product application

3cdd4277-7e8f-41a5-9c97-8eb6215e3aaa12d5cd05-4122-42fe-88cf-f2020261f84335a395f0-e5f6-44be-924c-bc84d4699aecc6510426-af84-4d69-abf3-aace80c85eecef6005c9-efb9-4a37-be7c-4681587811ee
