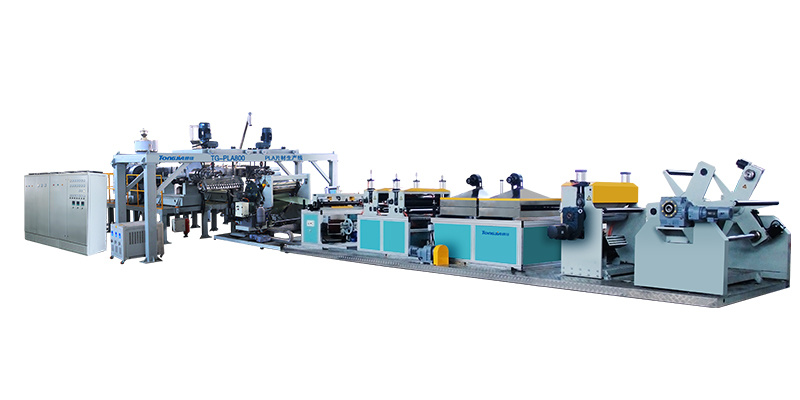

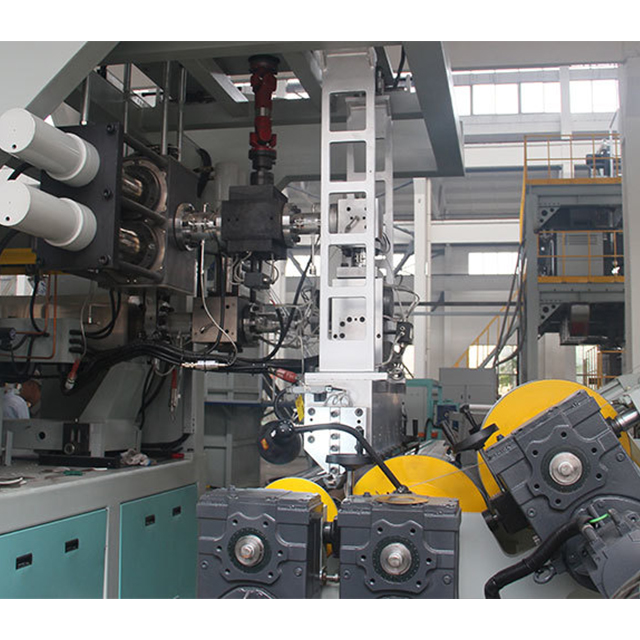

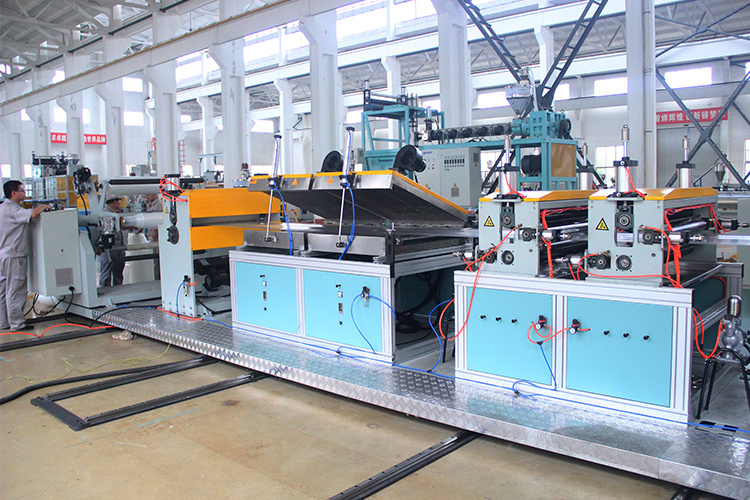

PLA fully degradable extrusion sheet production line

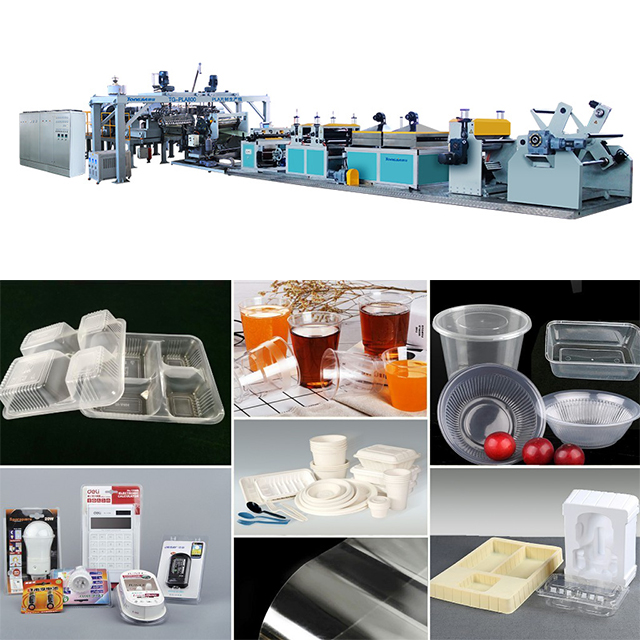

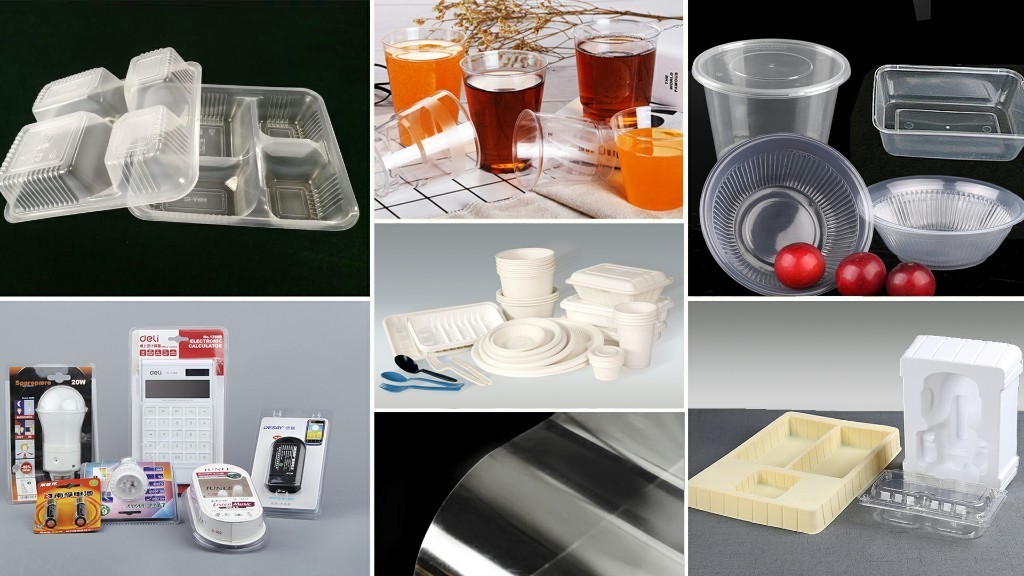

This equipment is suitable for the production of fully degradable materials such as PLA and PET, as well as plastic sheets. It is mainly applied in eco-friendly food packaging, gift box packaging bags, clothing bags, lamination, ground film, shopping bags, etc. The whole machine is controlled by PLC to achieve the automatic control of functions such as parameter setting, data operation and feedback, and alarm.
Availability:
Quantity:

PLA fully degradable extrusion sheet production line

e90ed5fd-42d8-4c56-a3ab-2aafdccd9aa1

04d726e9-0901-4142-888f-678586ba291e

Equipment parameters
Type TJ-PLA75 TJ-PLA85
Extruder

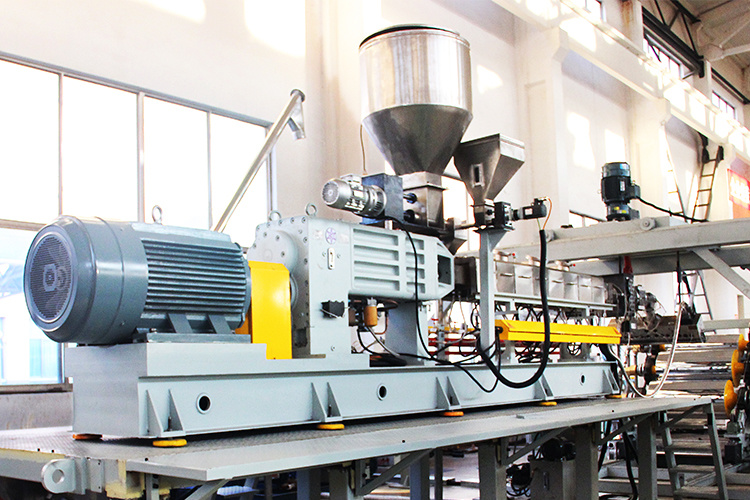

075 Parallel twin-screw 085 Parallel twin-screw
Product width mm 800-1100 800-1500
Product thickness mm 0.12-1.6 0.12-1.6
Production capacity (approximately) Kg/h 350-500 400-600
Installed capacity (approximately) kw 295 365
External dimensions (approximately) m 20×6×6 22×6×6
Machine weight (approximately) t 15 20

95bfd23c-18d3-496b-b8c0-893287031ec0df2c4665-cac3-4c29-820f-f13e86f821599ab14739-ad46-43fc-9f21-9898a0c429c064ab12d8-56c2-4c68-920b-202539d1585d93a26d37-6a51-4fcd-9168-66fb052af6913eee454b-df8e-4056-8249-bb3be5c977b15a29083b-7662-4b1a-9802-a86a1c77a326
