PP Biaxially Oriented Mesh Production Line

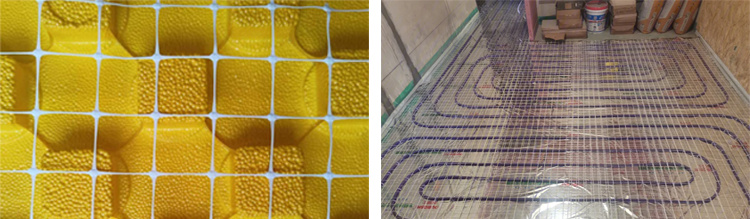

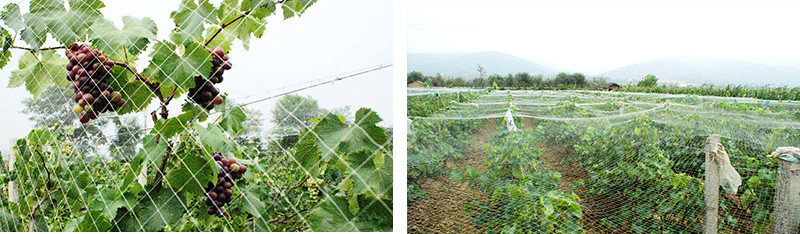

This production line is a new type of precision plastic mesh material equipment developed through improvement and innovation by absorbing the cutting-edge technology in the industry and integrating our company's many years of experience in plastic mesh material production. The mesh products produced have uniform and beautiful mesh holes, fine and smooth surfaces, and are paired with bright and eye-catching colors. Their market application fields are expanding rapidly. After being stretched in both longitudinal and transverse directions, a biaxially stretched grid is formed. It not only has a lighter weight per unit area but also superior mechanical properties. It is widely used in building base layers, floor heating insulation backfilling, and reinforcing ribs for packaging paper bags. Three-dimensional vegetation base network, plant support network Safety nets for road maintenance Courtyard guardrails, home decorations, etc.
Availability:
Quantity:

Equipment parameters

Model TJ-SLW65 TJ-SLW75 TJ-SLW90
Screw diameter mm φ65 Φ75 φ90
Length-to-diameter ratio 30:01 30:01 30:01
Screw rotational speed r/min 5-80 5-80 5-60
Motor power KW 37 45 55
Heating power (approximately) KW 20 20 50
Product width mm 2000 3000 4000
Installed capacity (approximately) KW 120 160 220
Overall dimensions (length × width × height)(approximately) m 24×3.5×3.5 25×3.5×3.5 26×3.5×3.5

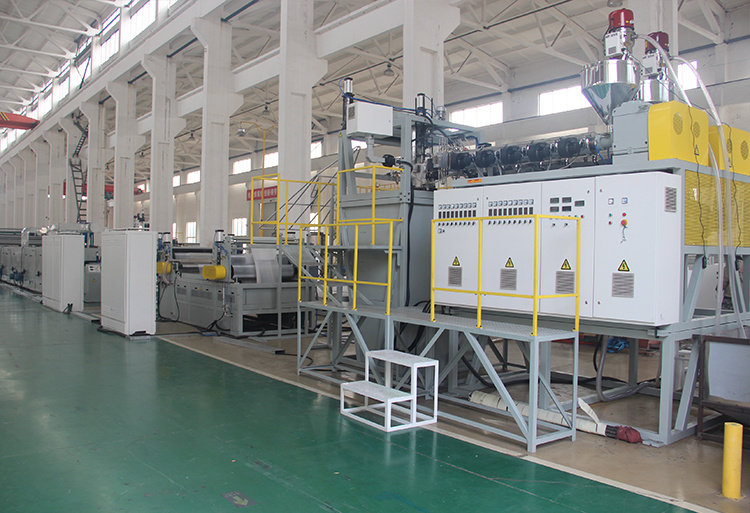

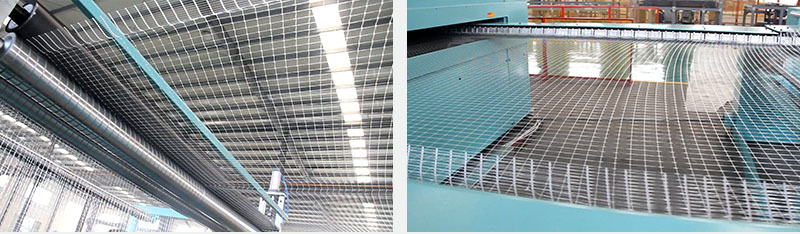

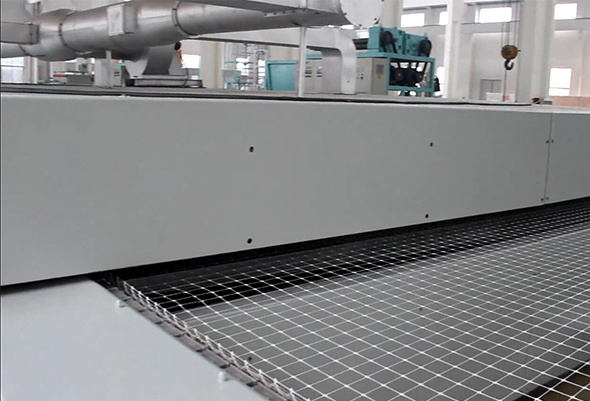

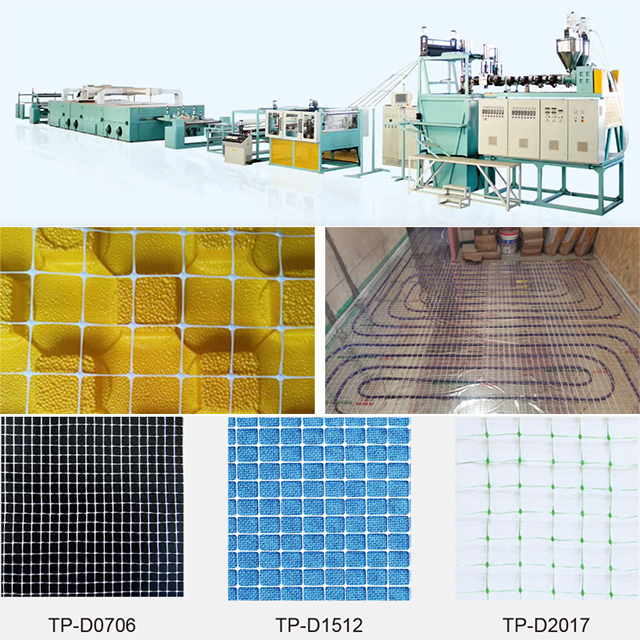

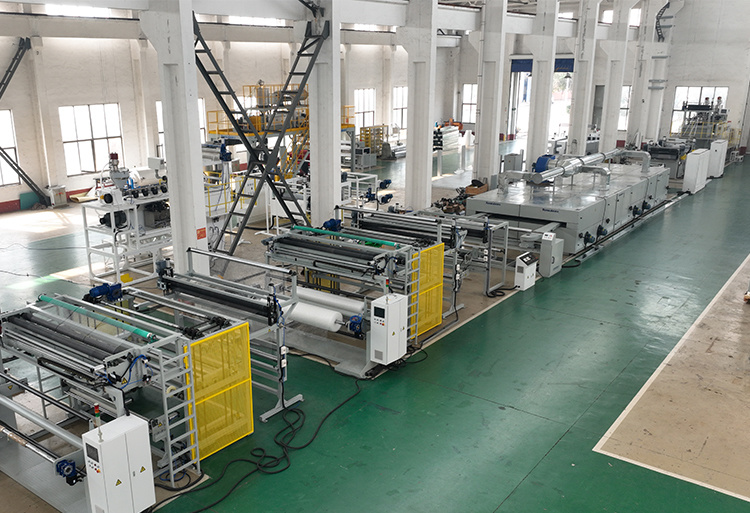

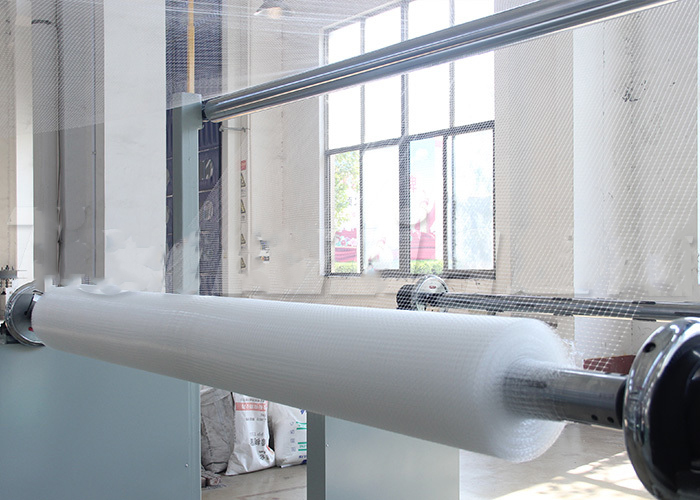

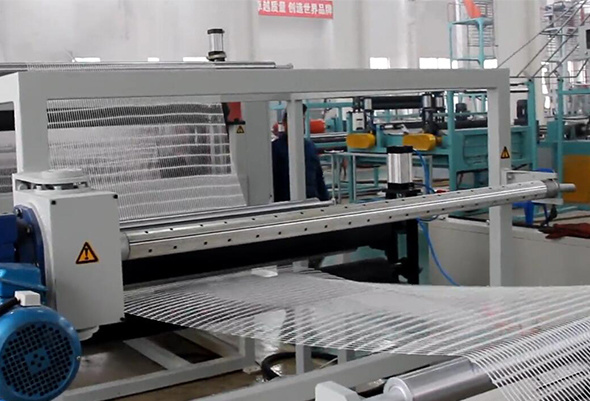

Equipment display

ea8a9a33-a80d-4bae-abe8-33c3ba317223

9c9b23b5-467a-4123-b806-ad9f441d7499.jpg_1180xaf

62b8fa02-0c27-45dc-94c0-029cdacf7b56.jpg_1180xaf

1510aea0-89ee-4729-ae5f-c91a517a4832.jpg_1180xaf

da120dfc-0aa8-4b50-892e-ae38a179cddc.jpg_1180xaf

ea8a9a33-a80d-4bae-abe8-33c3ba317223

1a5ba07f-9644-41ee-babd-ef577f598d831a6b1d99-3b2e-4f5b-bc33-bba3f8aa08f2578d9808-729f-4e6f-82e7-b20e656769b0f4910514-65ef-474a-a8e9-300816360703f9763ca0-82d0-4c56-a3dc-f8274f901903
