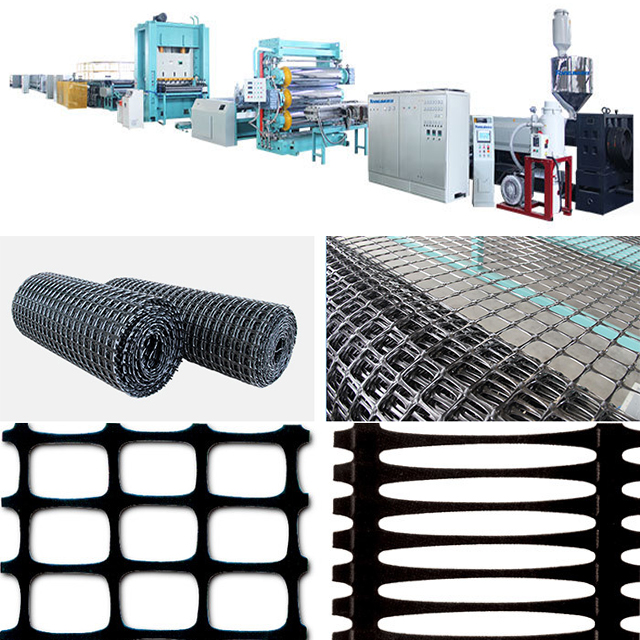

PP/PE Plastic Geogrid (mine Double-tensile And Double-resistance Plastic Net) Production Line

The new type of polymer geosynthetic material - plastic geogrid, also known as: mine support net equipment, mine double-tensile double-resistance net equipment, due to its unique physical structure, has excellent properties such as high strength, good dimensional stability, corrosion resistance and anti-aging, and has been widely used in engineering fields such as water conservancy, highways, railways, airports and coal mines. During the production process, by adding plastic antistatic agents and flame retardant masterbatches, it is also possible to produce double-tensile and double-anti-corrosion plastic mesh materials for mining, which are widely used in underground working places such as mine roof protection and guardrails, and are alternative products to traditional steel wire woven nets.
Availability:
Quantity:

Product parameters

Model TJ-TGGS4000 TJ-TGGS6000
Extruder ①160/33 ①180/33
Screw diameter mm ①160 ①180
Modulus width mm 1450 2000
Punching pressure KN 2500 3150
Unidirectional product width mm 1200 2000
Bidirectional product width mm 4000 6000
Specification of bidirectional products KN/m 15-15,20-40,50-50
Shape: about ten feet (approximately) m 98×12×4.8 110×15×5.2

Equipment display

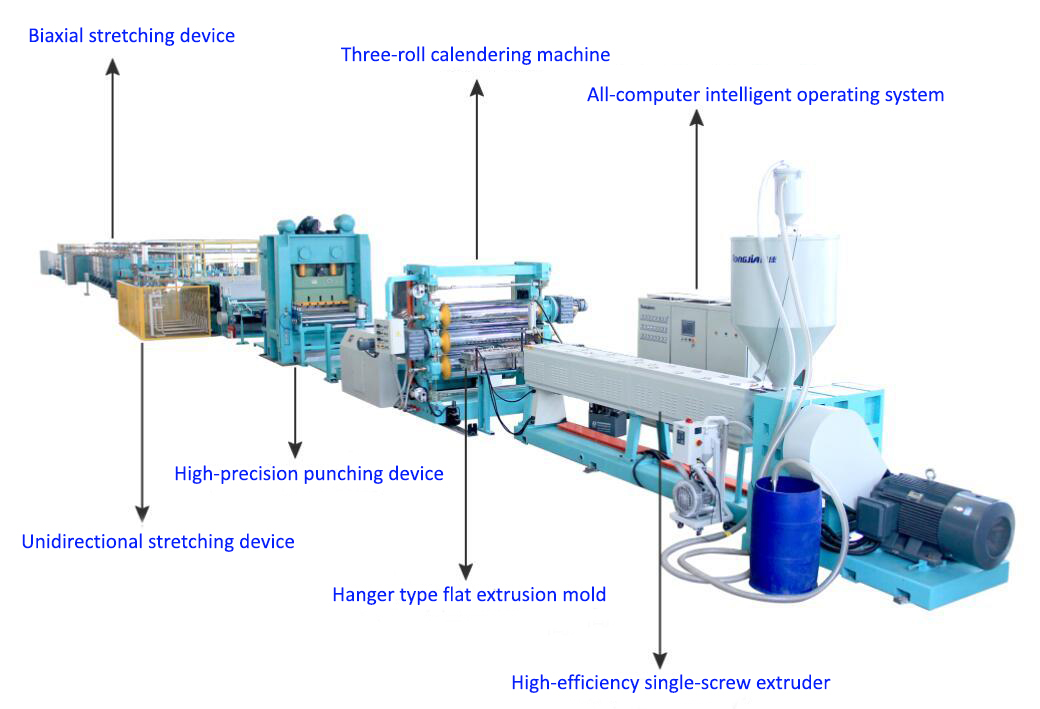

705303f3-1c55-47e5-a277-6efc24c77576111

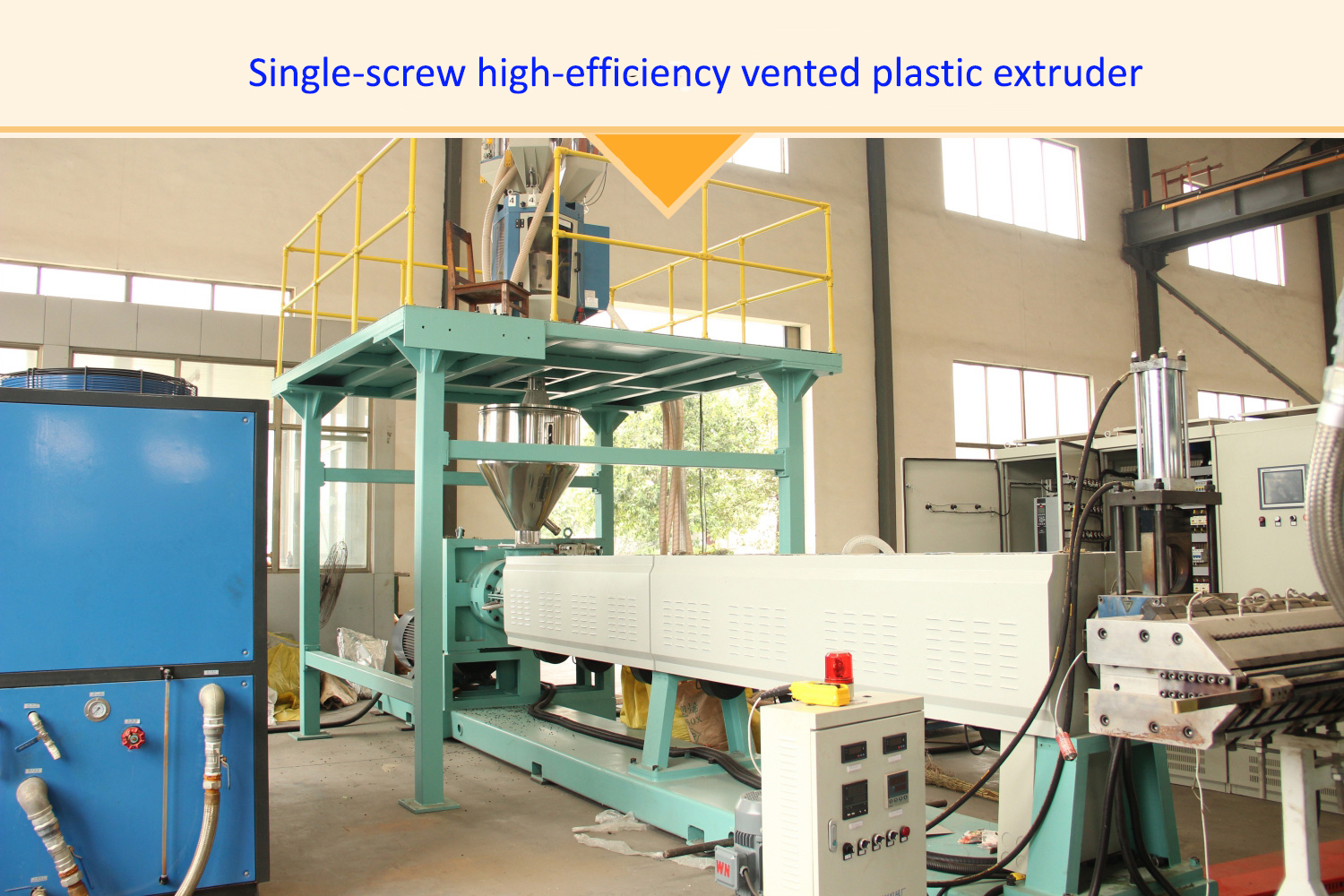

5af1adf2-9f5e-4340-9150-4fa46bb88169

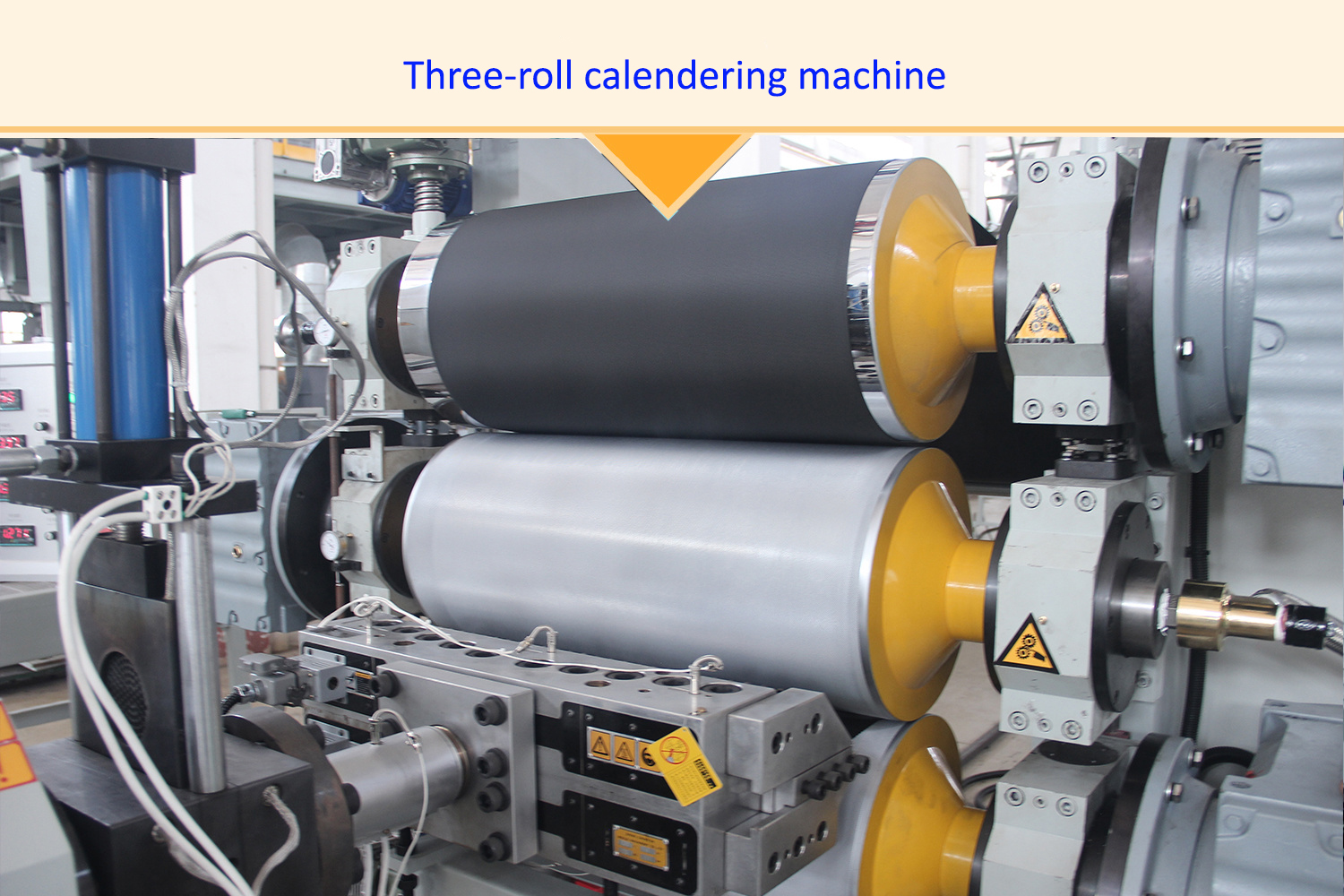

831c9bac-1ca0-492b-8213-a17258aecdee

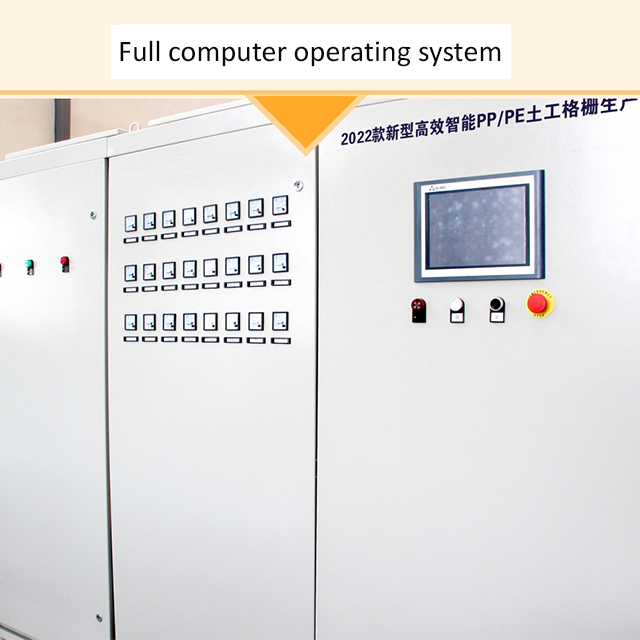

1

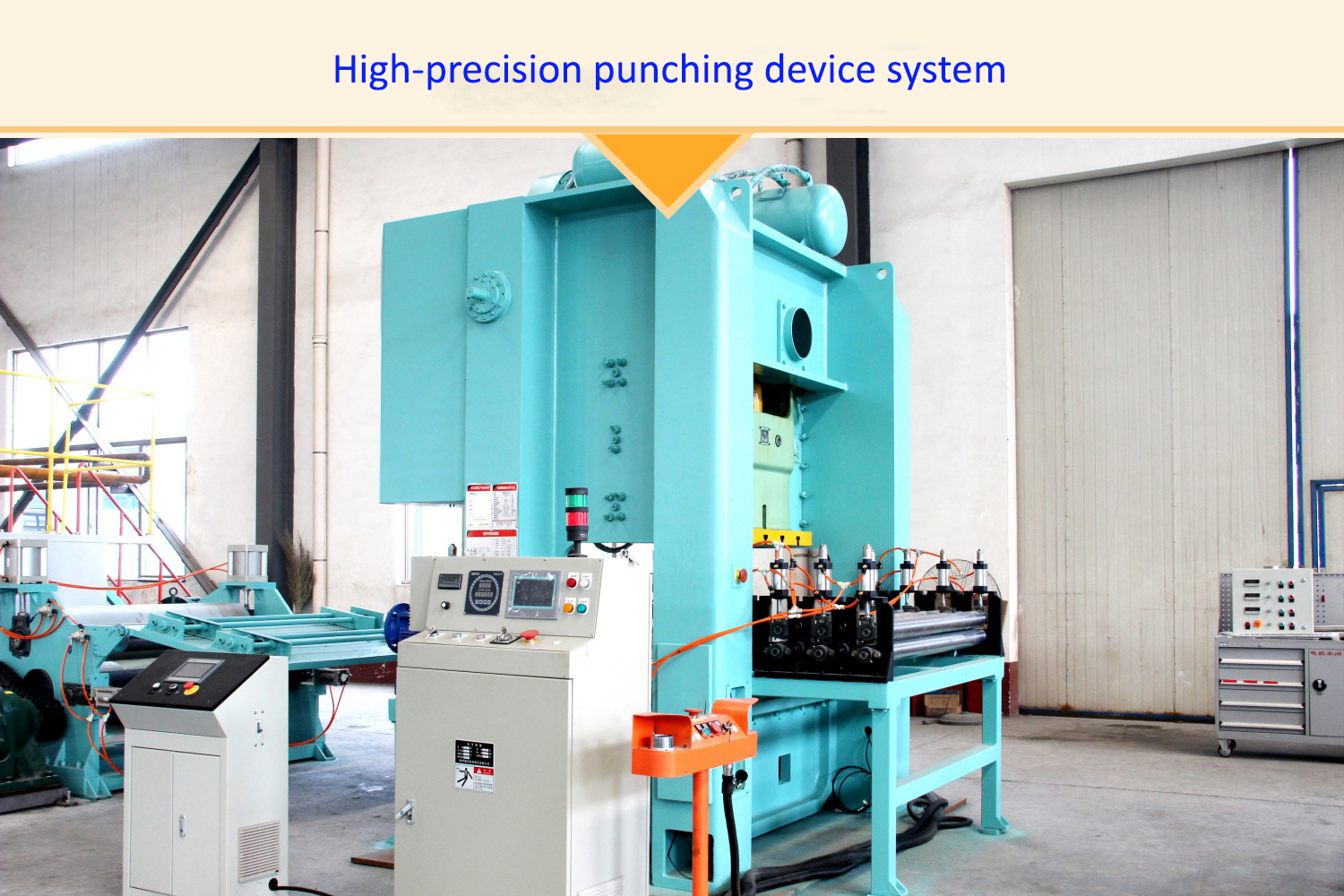

ceb077fc-e9f2-43e5-a9d2-7ee7f992983f

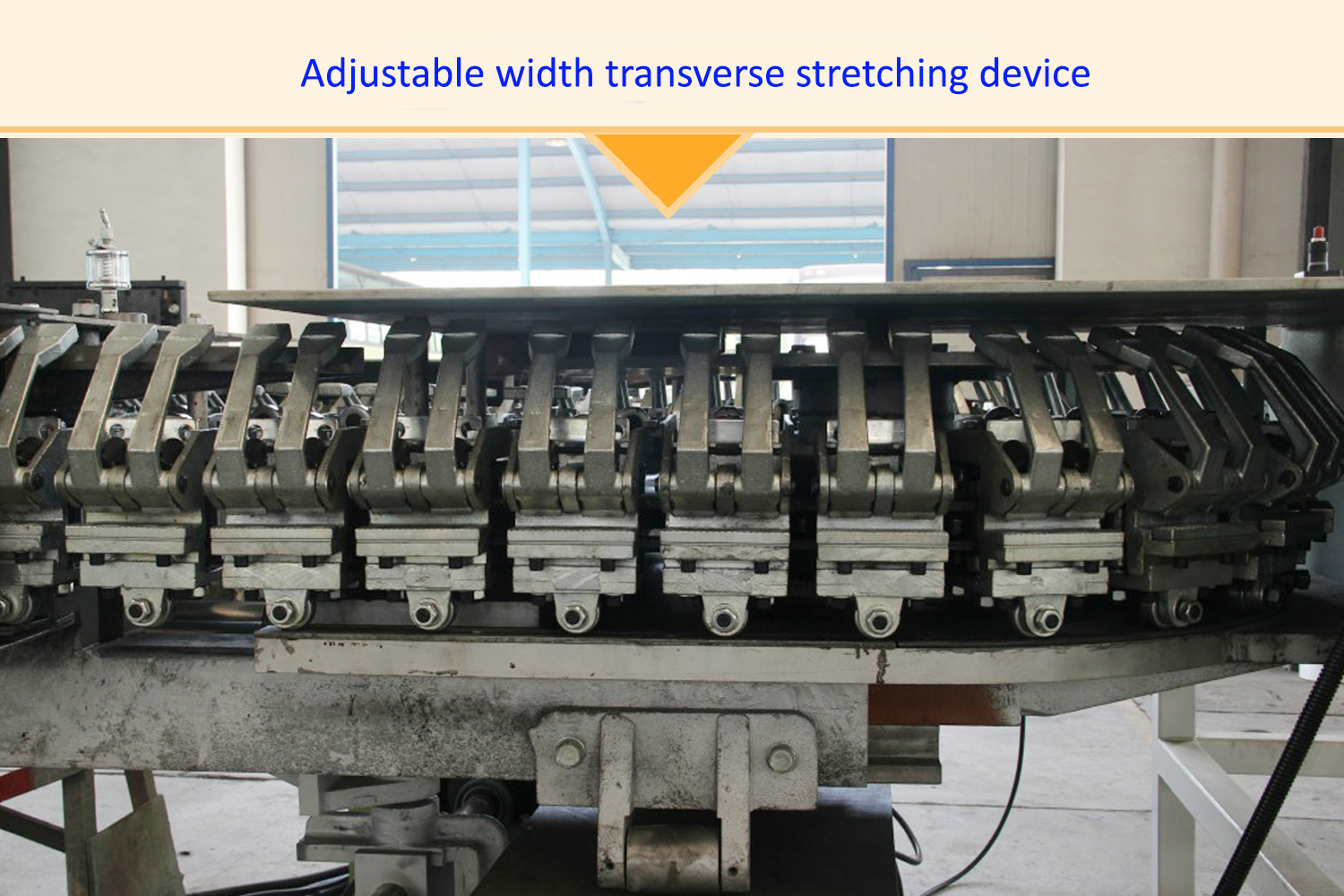

976ae2df-b738-4dd3-bae9-ad01977beccf

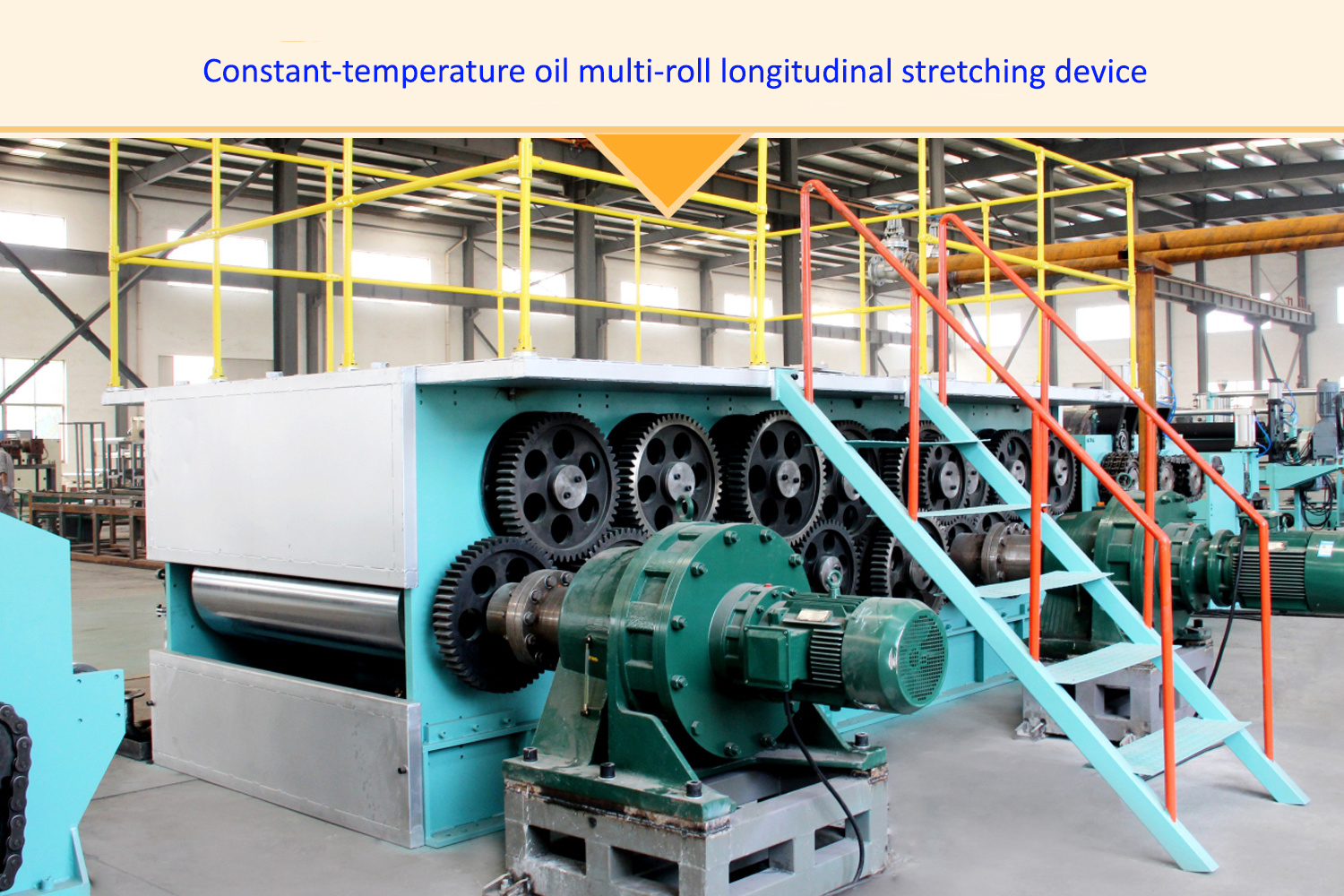

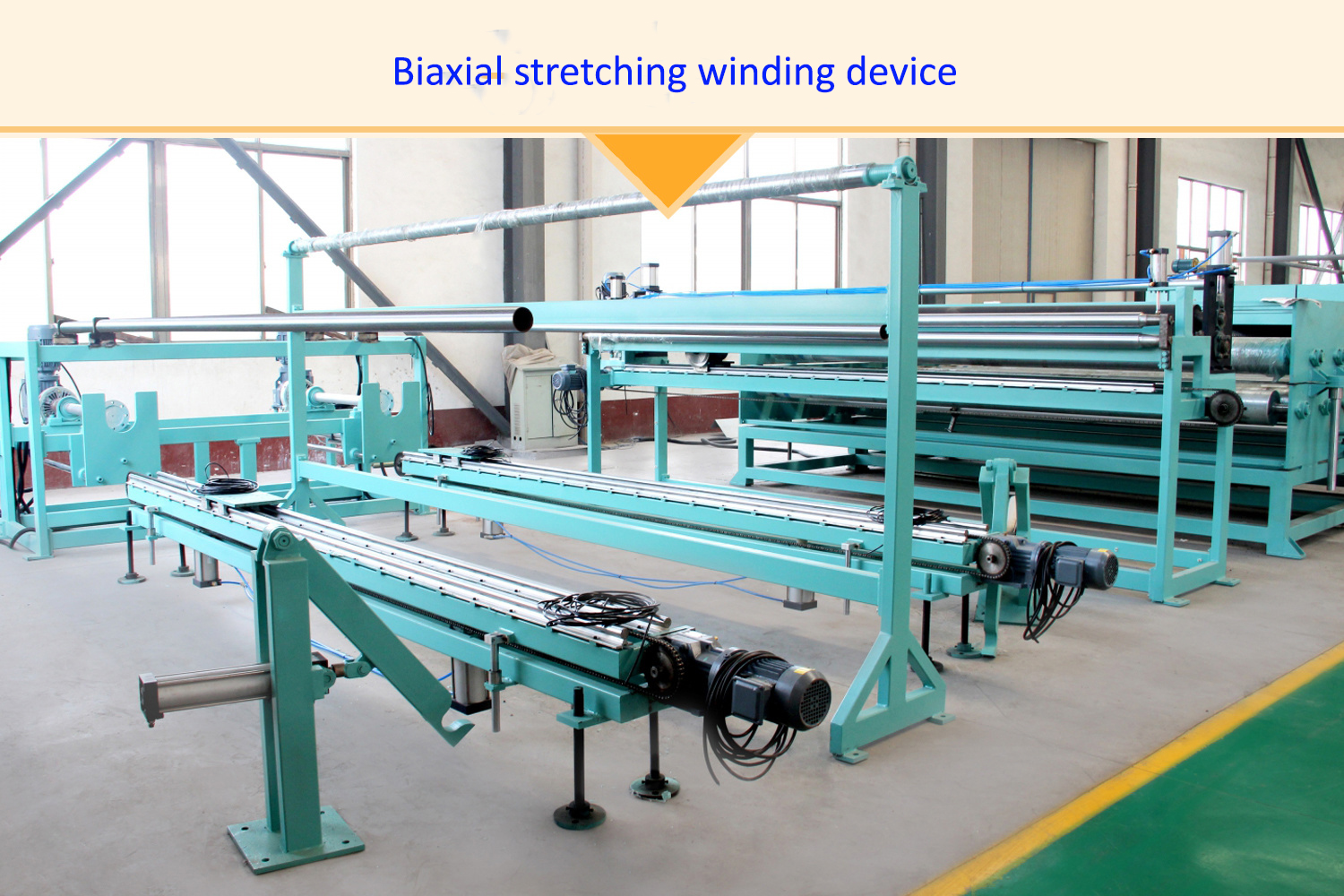

6563a3a9-2386-40ad-84e5-71b0abff2e452e0bb668-8bac-485b-af02-cc8633590c19

Product application

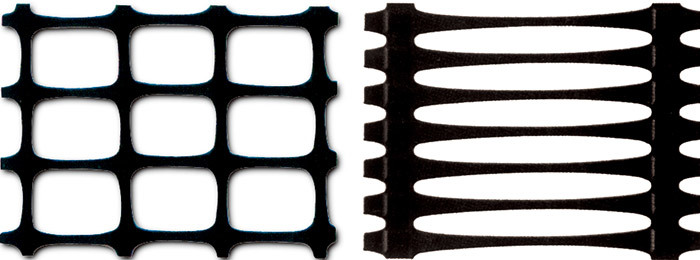

9456a338-1098-44d7-add7-a894185d1b96

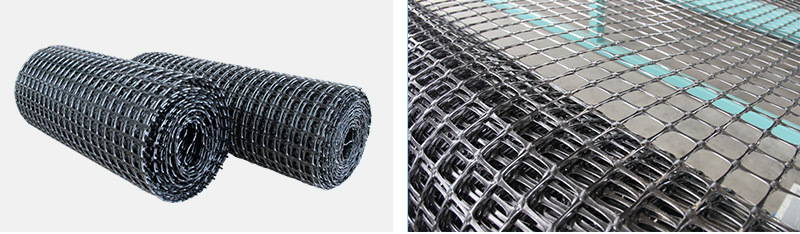

a98a6294-da7f-47af-987e-675f5fcd8ec8

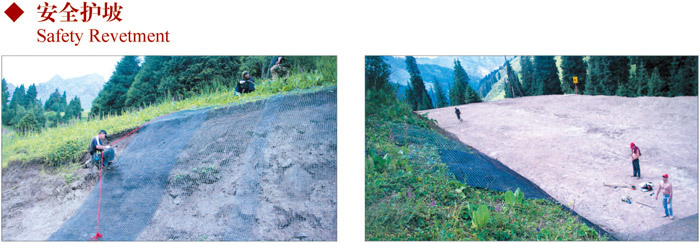

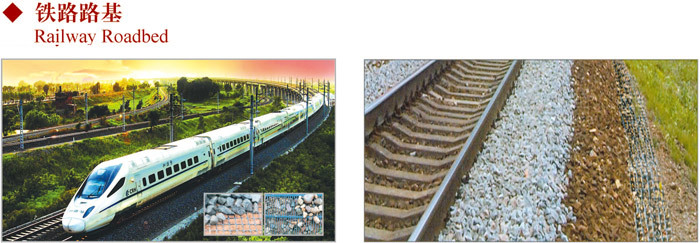

3c42e4d7-8f42-438f-b09c-b6cd549d44dd6ccce393-c359-4e64-a035-7106650a377a

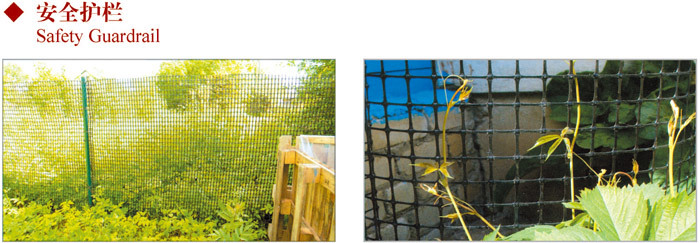

a9acaf84-865b-4183-b75c-8aebd6e26fa4

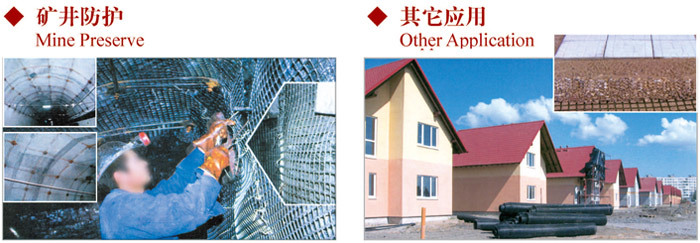

2c8736db-a66b-4101-a785-a3d2e20156c6
