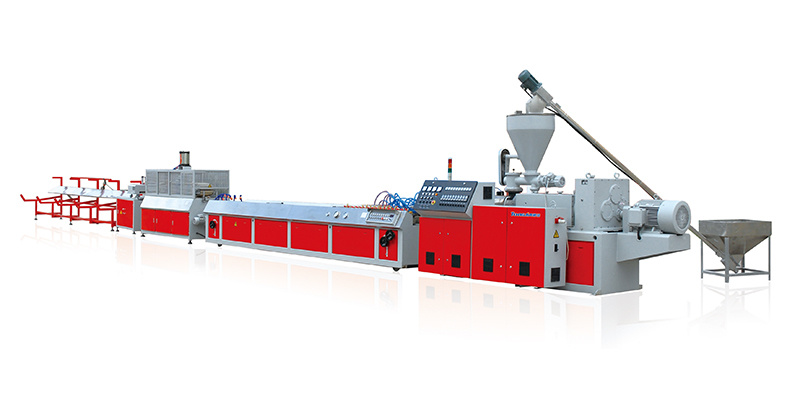

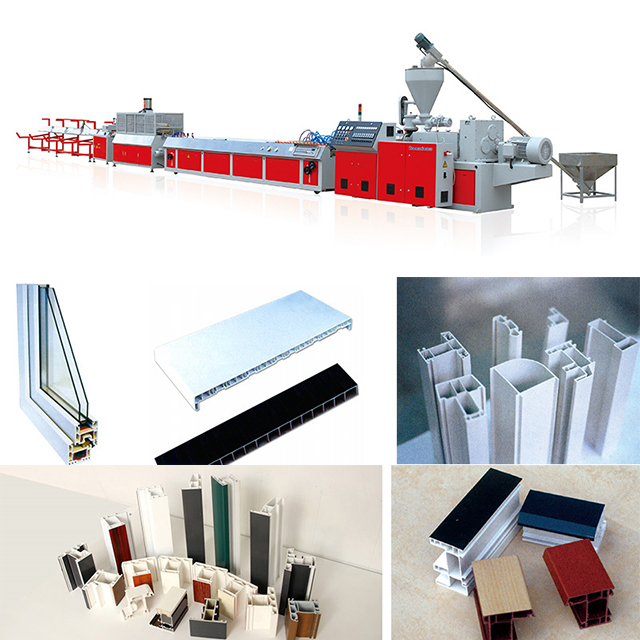

PVC Exterior Wall Decorative Hanging Panel Production Line

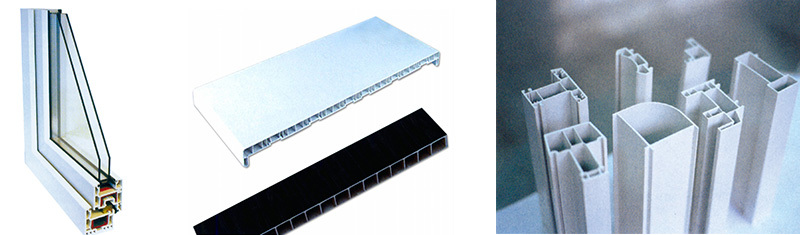

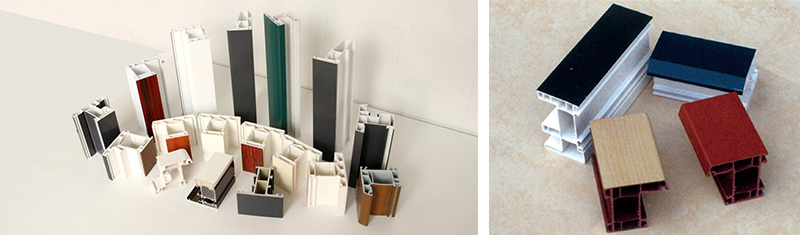

This production line absorbs new technologies and adopts high-efficiency conical twin-screw foundation and vacuum shaping process for the extrusion of PVC door and window profiles, window sill panels, exterior wall hanging panels, decorative panels, multi-hole conduit and other profiles. It is widely used in PVC plastic-steel doors and Windows, construction, decoration and other fields.
Availability:
Quantity:
Equipment parameters
Model TJ-YXSZ51/105 TJ-YXSZ65/132 TJ-YXSZ80/156
Screw diameter mm 051/105 865/132 880/156
Screw rotational speed /min 40 34.7 38
Host power KW 15 37 55
Screw heating power KW 8 24 36
Center height mm 1000 1000 1000
Main products Frame, door leaf, strip Frame, door leaf
Heating and cooling of the screw barrel Heat transfer oil
Screw heating and cooling Electric heater, forced air cooling
Auxiliary machine parameters
Model YF180 YF240 YF400
Product size mm 180 240 400
Traction height mm 150 150 180
Traction force /min 30 30 30
Traction speed KW 00-5 00-5 00-5
Total power of auxiliary machines KW 30 30 35
Cooling water capacity mm 6 6 9
