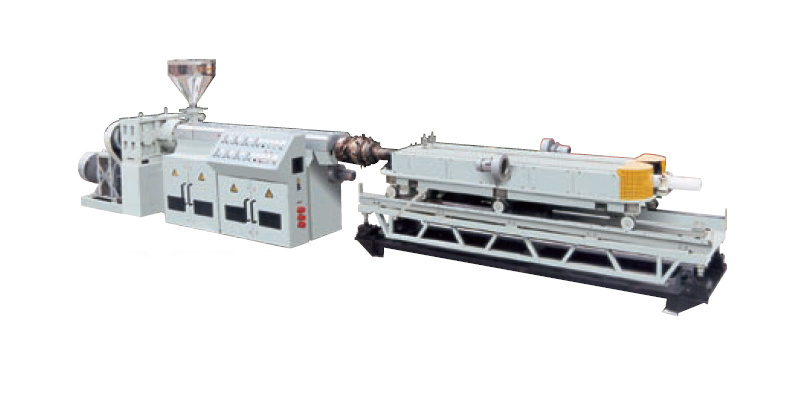

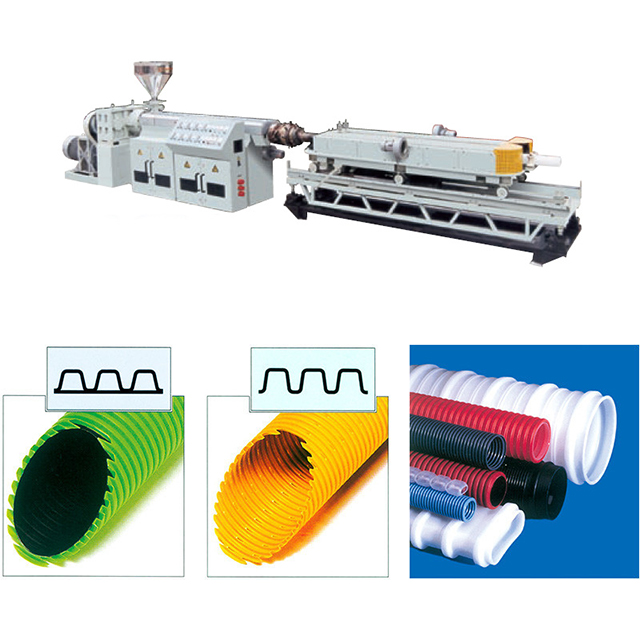

PVC/PE Single (double) Wall Corrugated Pipe Production Line

This production line is a new product independently developed and designed by introducing cutting-edge technology and combining market conditions. Mainly made of polyvinyl chloride or polyethylene, it produces single and double-wall corrugated pipes. Due to its unique structure, these pipes have the advantages of light weight, good impact resistance, strong corrosion resistance, and cold and heat resistance. They are widely used in communication, wire and cable laying, bridge steel cable sheaths, agricultural irrigation, urban drainage (supply), geographical infiltration, and building water supply and drainage fields.
Availability:
Quantity:
Equipment parameters
Model TJ-DBG90 TJ-DBG120
Applicable raw materials PE PE
Extruder Φ90/25 Φ120/25
Pipe diameter range mm Φ65-Φ115 Φ115-Φ175
Total water consumption capacity /h 4000 5000
Total water pressure Mpa 0.4-0.6 0.4-0.6
Number of modules pair 50 60
Total length of the module mm 5180 6216
Module running speed m/min 1-12 1-8
External dimensions (approximately) m 18×1.35×1.7 21×1.55×2.2
Machine weight (approximately) T 6 9.5

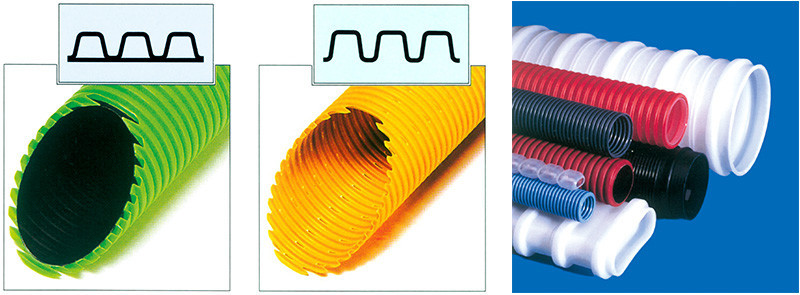

Product application

73276577-cbde-45b7-8531-1f264be004df.jpg_1180xaf87a2ec07-4ba8-41a2-98ed-5d9e044615b2
