PVC/PP/PE/PS Series Extruded Sheet (plate) Production Line

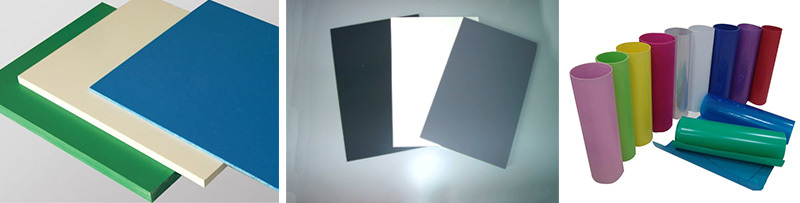

This equipment is a sheet plastic extrusion device independently developed and produced by our company after introducing advanced technology, combining our own practical experience and market demand. According to different customer needs, it can produce extruded sheets such as PVC, PP, PE, PS, and ABS. By replacing the main machine and related parts of the die head, it can use PVC plastic powder to produce PVC decorative sheets and PVC foamed boards. It is widely applied in many fields such as architectural decoration, vacuum-formed products, printing, furniture, interior decoration, anti-corrosion and chemical engineering, etc.
Availability:
Quantity:

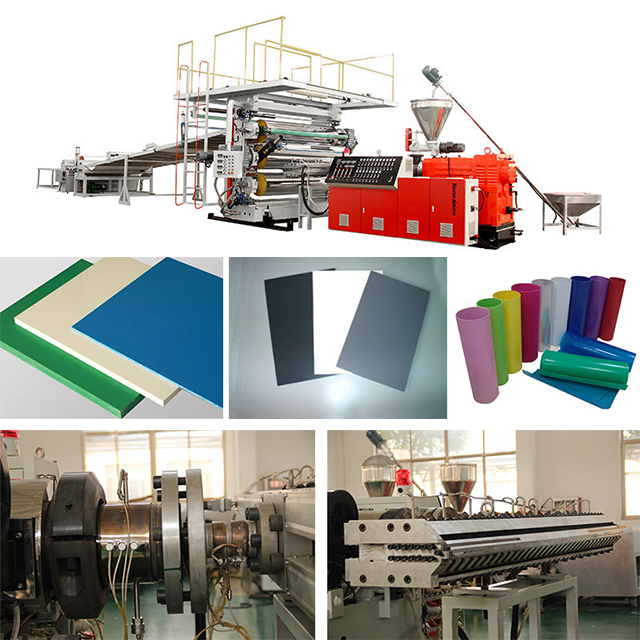

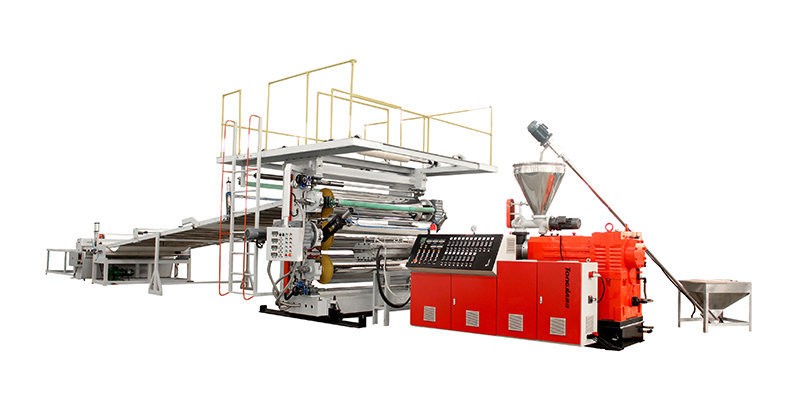

PVC/PP/PE/PS series extruded sheet (plate) production line

4a324617-5171-4f34-9605-b44ded5d4d66.jpg_1180xaf72e8dcb4-bfa5-409d-ab43-4d581b2701d0

Equipment parameters
Type TJ-BC1200 TJ-BC1500 TJ-BCF80A TJ-BCF80B
Applicable raw materials PP/PE/PS/ABS PP/PE/PS/ABS PVC PVC
Product width mm 600-2000 600-2000 1220-2050 1220-2050
Product thickness mm 0.5-5 3-30 1-3 3-20
Extrusion volume kg/h 300-500 400-500 300-500 300-500
Installed capacity (approximately) KW 350 400 450 480
External dimensions (approximately) m 29×5×3 35×6×2 28×5×3 30×5×3
Machine weight (approximately) T 30 35 29 30

d408ac12-b1ed-424f-8f98-c0a456cce5db
