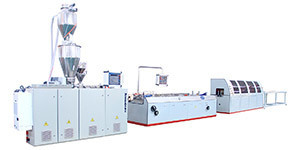

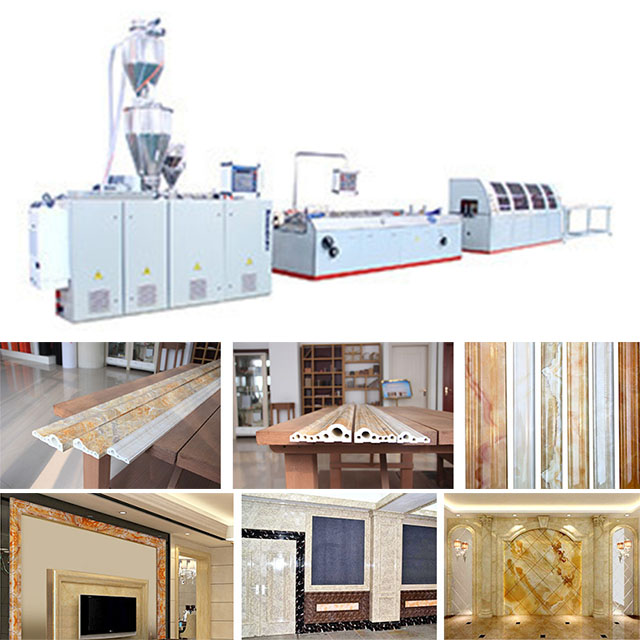

PVC imitation marble (stone plastic) decorative line production line

Special extrusion equipment for TJ-PVC high-calcium (stone plastic) profiles, with stable performance, energy saving and high efficiency. The screw barrel is made of 38CrMoAIA high-quality alloy steel with a bimetallic surface and a professional and unique internal structure. A special reducer for plastic machinery is adopted, and the gears are ground and nitrided. The low-voltage electrical appliances adopt well-known brands, with precise control and simple operation. It can also be optionally equipped with programmable computer control, making the entire line fully intelligent. This production line can be formed by co-extrusion of two machines to ensure the durability of the product patterns.
Availability:
Quantity:

Equipment parameters

Machine model Unit TJ-PVC51/105 TJ-PVC65/132
Screw diameter mm 051/8105 065/0132
Number of screws pcs 2 2
Rotational speed r/min 1-37.8 1-39.1
Host power KW 15 37
Heating power (approximately) KW 8 24
Extrusion output kg/h 60-150 100-250

854e3c8b-a44e-476b-912f-801e130eb0f4.jpg_1180xafa9e9c2d5-ddc8-49de-80ab-96dce326f261fdbcbebd-6e6b-4c1a-b670-38933fb880df
