Plastic Square Net And Mosquito Net Production Line

This production line is a new type of precision plastic mesh material equipment independently developed by absorbing advanced foreign technology and integrating China's many years of experience in plastic mesh material production. It uses two machines for co-extrusion to control the warp and weft strand diameters of the mesh material respectively. The produced mesh material products are fine and smooth with uniform mesh holes. After two rounds of hot stretching in the longitudinal and transverse directions, it forms a grid stretched mesh, and its mechanical properties are significantly improved. Warp and weft nets, breeding nets, grid nets, and universal nets are widely used in many fields such as decoration, protective nets, prevention of insect and mosquito bites, and high-end fences.
Availability:
Quantity:

Equipment parameters

Model TJ-FW45 TJ-FW65
Screw diameter mm φ45×2 中65×2
Length-to-diameter ratio L/D 30:01:00 30:01:00
Screw rotational speed r/min 5-50 5-40
Motor power KW 7.5×2 22×2
Heating power KW 20 35
Product width mm 1000 1500
Installed capacity (approximately) KW 55 90
External dimensions (approximately) m 9×2.8×2.6 12×3×2.8

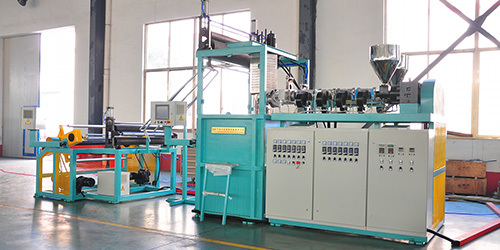

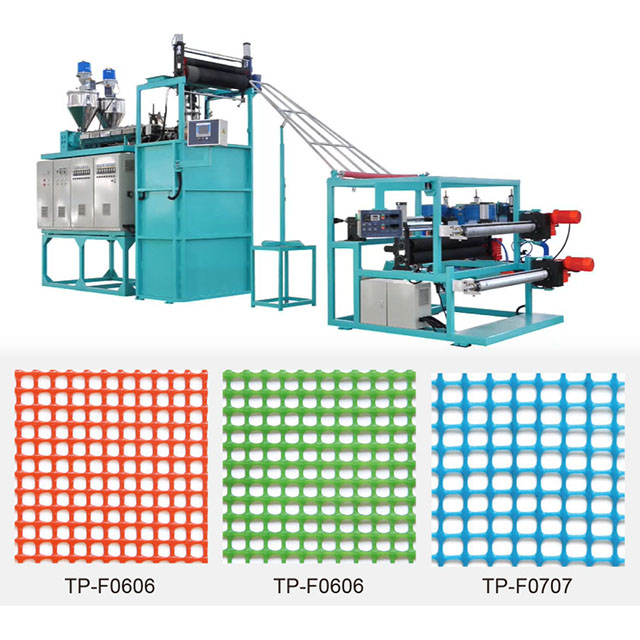

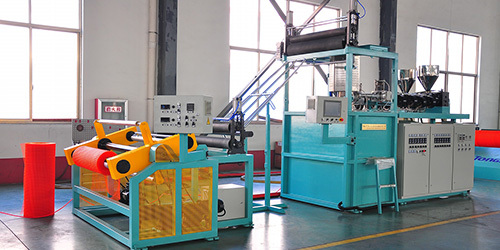

Equipment and product display

acd3a911-2c9f-4fb1-921c-697cf34e49ec4430f68d-4218-4e3e-a581-aa1f29581863

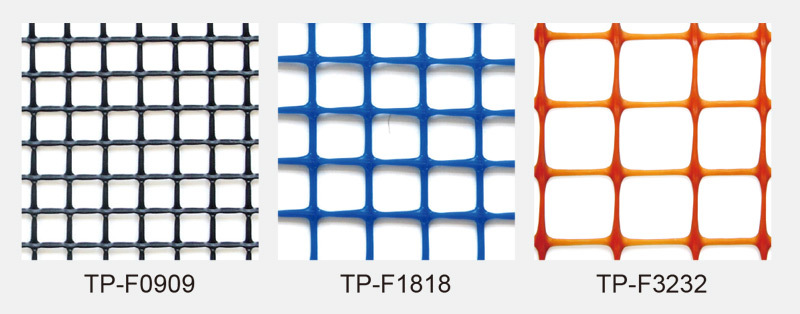

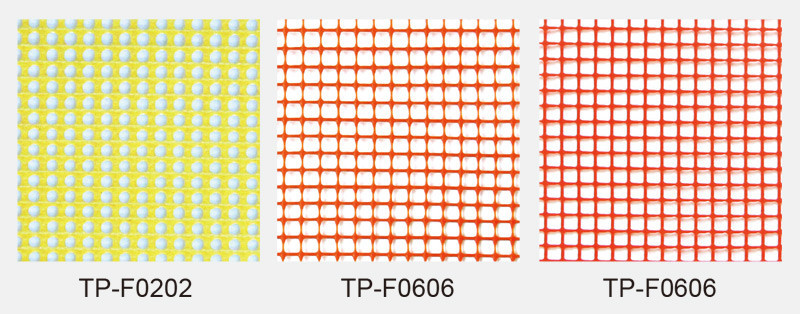

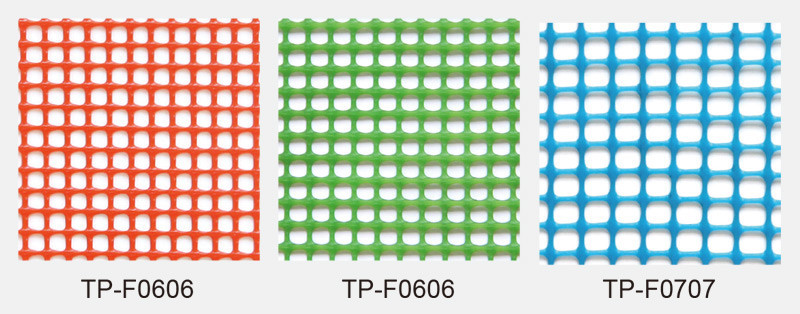

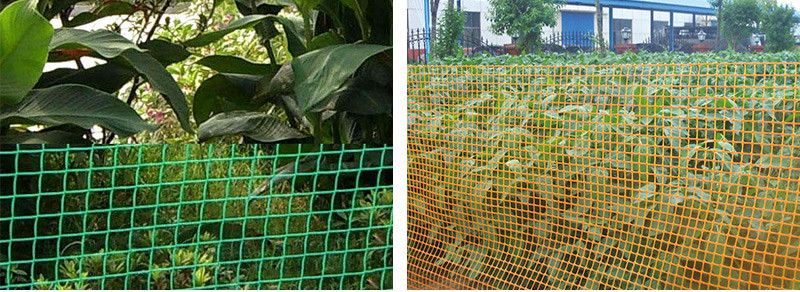

Product application

aadd9e13-ae77-4f2a-9787-a6c9c1a049825ec3fd5f-9cbd-4254-87a4-b499a713fa86044a1cf2-1b13-4fea-a396-32d984e72364cb0a977c-8f3f-4b49-b0ba-5185a12384e5
