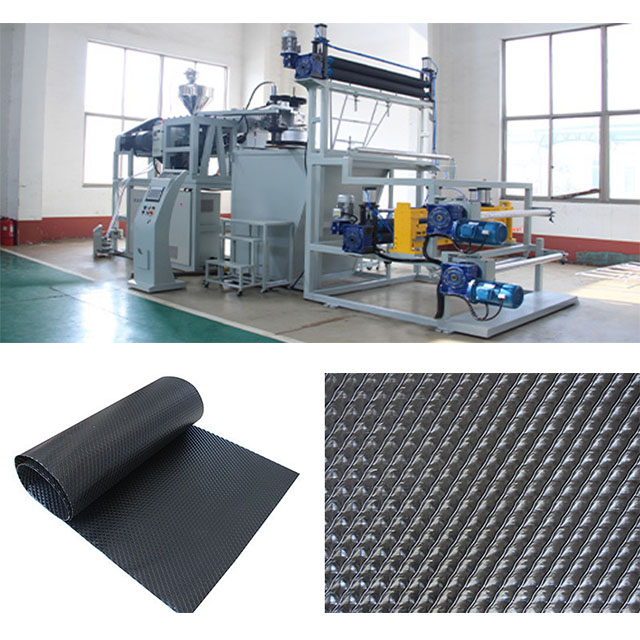

Polymer Geotextile Membrane Equipment

This equipment uses polyethylene as raw material and adopts a new molding process to professionally produce a new type of waterproof and geotechnical reinforcement material with an integrated product structure of high molecular net/film. The specifications of the net film are adjustable and the thickness is controllable. The products are widely used in fields such as engineering waterproofing and civil engineering reinforcement. At the same time, it can be combined with non-woven fabric to enhance drainage and protection! Polymer net film is a new type of waterproof and geotechnical reinforcement integrated structural material with an integrated product structure of polymer net/film, which is formed online by using high molecular polymers and new molding processes. The grid size is adjustable and the film thickness is controllable. It can be widely applied in fields such as engineering waterproofing, reinforcement, and integrated processing waterproofing
Availability:
Quantity:

Equipment parameters

Machine model Unit TJ-WM65 TJ-WM90 TJ-WM120 TJ-WM150
Extruder
中65/28 Φ90/28 Φ120/30 Φ150/33
Screw rotational speed r/min 5-35 5-30 5-25 5-20
Product width mm 2000 2500 3000 4000
Installed capacity (approximately) KW 60 86 180 220
External dimensions (approximately) m 9.6×2.9×3.4 12×3.1×3.5 16×38×4.2 18×5.2×4.8
Machine weight (approximately) T 5 6 8 10

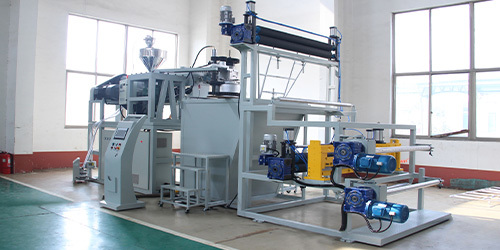

Equipment and product display

a5c83ad3-b5ca-4553-91a1-2723da448eee

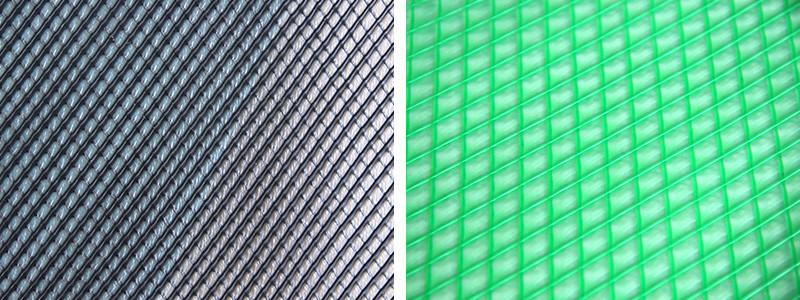

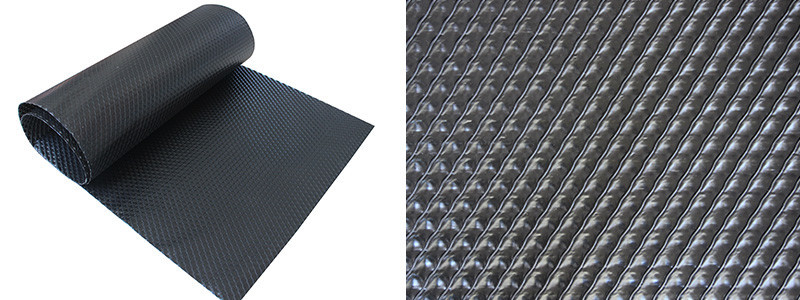

Product application

85e8352e-f8df-40c9-9b38-731f5e3754dc

d9ab2021-b135-45c5-b372-87d7d545b330
