I. Project overview
Signed Date: 2017-06-07
Processing material: cement raw powder
Processing capacity: 25t/h x 2
Equipment configuration: GX300 and LS250 screw conveyor 2 sets
In 2017, a cement manufacturer in the kiln tail gas collection due to the wear and aging of the zipper machine equipment, a large number of dust collection can not be recovered in time, resulting in a large number of material leakage and equipment blockage, serious pollution of the environment, affecting the physical and mental health of workers. Therefore, it is urgent to eliminate the obsolete equipment and replace the appropriate dust conveying equipment. After the preliminary investigation and screening, in June 2016, we ordered two sets of trough and tube screw conveyors, the models are LS250 and GX300, the lengths are 24 meters and 12 meters respectively. The supply of equipment was completed in July 2017.
II. Solution
1, according to the material particle size, temperature requirements for reasonable equipment selection, combined with the material itself volume weight, moisture content, conveyor capacity to determine the spiral diameter and Angle with the shaft.
2, according to the production environment and site area, combined with upstream and downstream production equipment, determine the length of the screw conveyor, and reasonable process layout.
3, in order to improve the life of the equipment, the spiral blade is specially wear-resistant treatment, compared with the ordinary spiral blade, the wear resistance and strength are greatly increased.
4, the equipment has good tightness, large throughput, reduce material leakage and dust, and improve the plant environment.

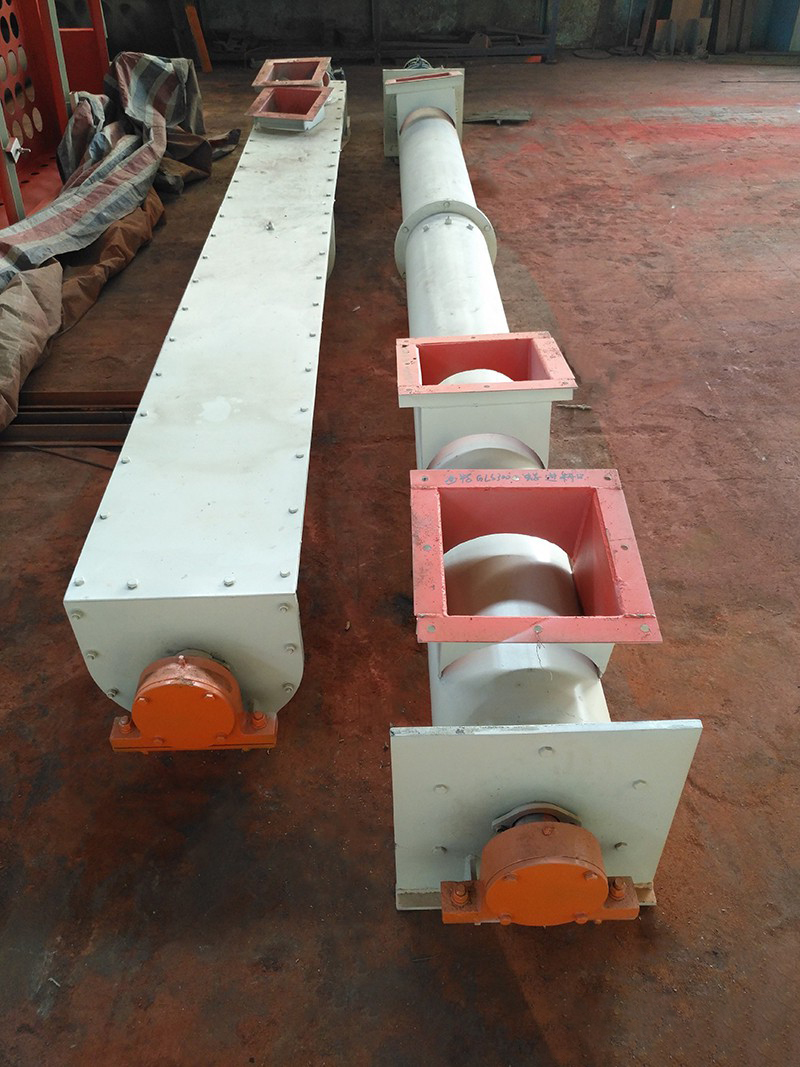

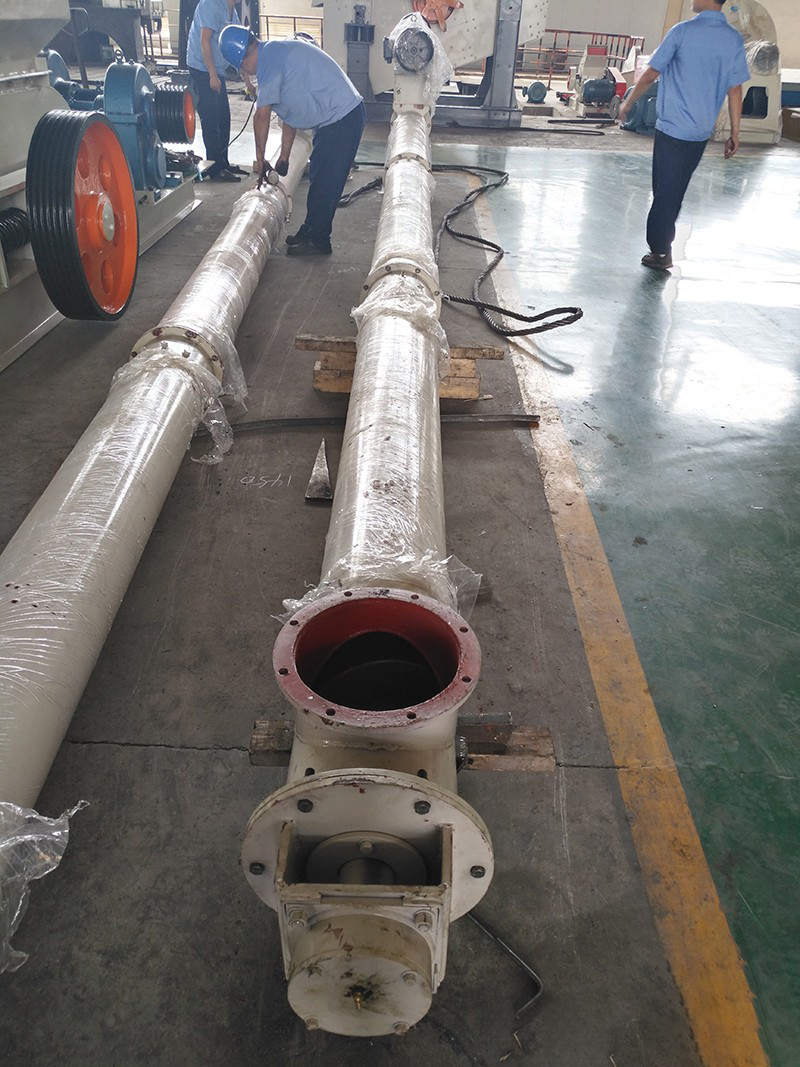

III. Project pictures
