Three-dimensional Vegetation Network

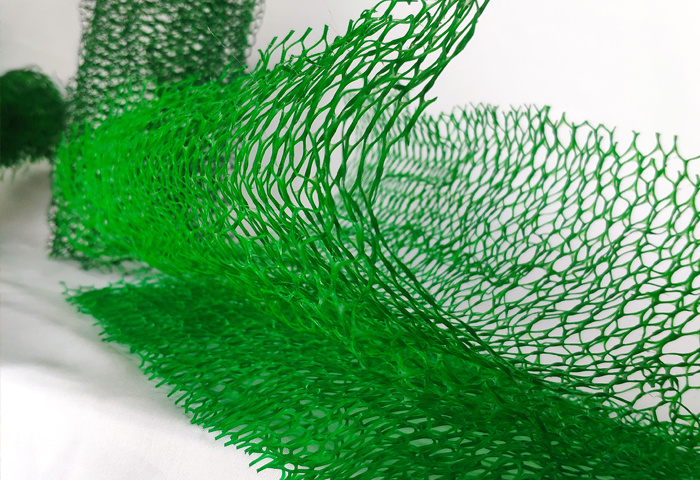

Three-dimensional vegetation net ‌, also known as three-dimensional geotextile net pad, is a new type of civil engineering material mainly used for grass planting, soil stabilization and slope protection. It is a three-dimensional structure net pad, loose and flexible in texture, leaving 90% of the space to be filled with soil, gravel and fine stones. Plant roots can pass through it and grow comfortably, neatly and evenly. When the turf is grown, the net pad, the turf and the surface of the soil are firmly combined together to form a strong green composite protective layer ‌.
Availability:
Quantity:

Equipment parameters

Model TJ-YZW65H TJ-YZW90 TJ-YZW120 TJ-YZW150
Extruder 中65/28 Φ90/28 Φ120/30 Φ150/33
Screw rotational speed /min 5-40 5-30 5-25 5-20
Product width mm 2000 2500 3000 4000
Installed capacity (approximately) KW 60 86 180 220
External dimensions (approximately) m 9.6×2.9×3.4 12×3.1×3.5 16×3.8×4.2 18×5.2×4.8
Machine weight (approximately) T 5 6 8 10

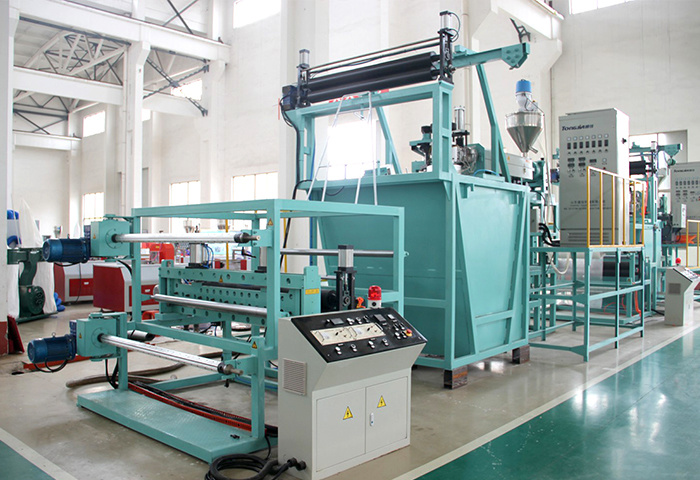

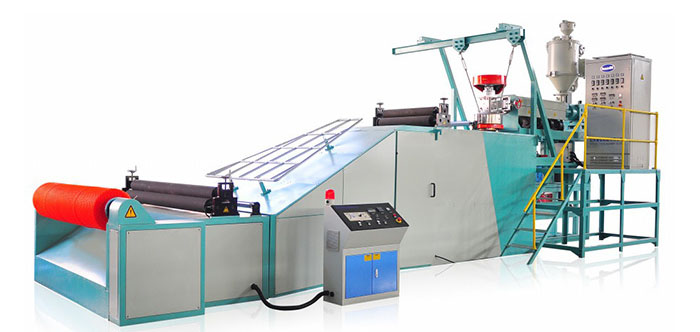

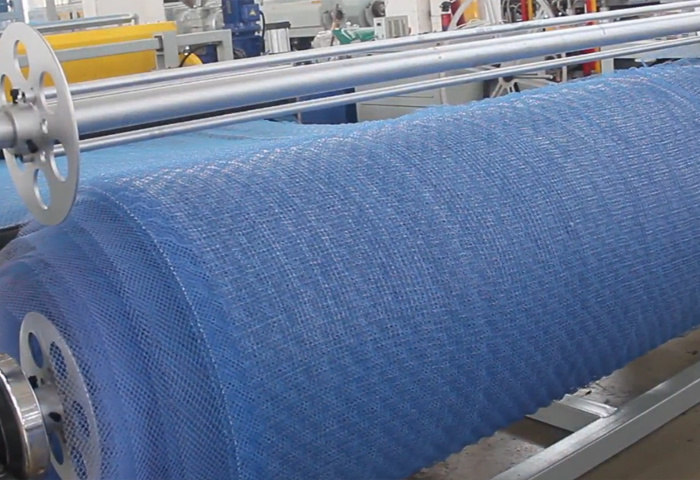

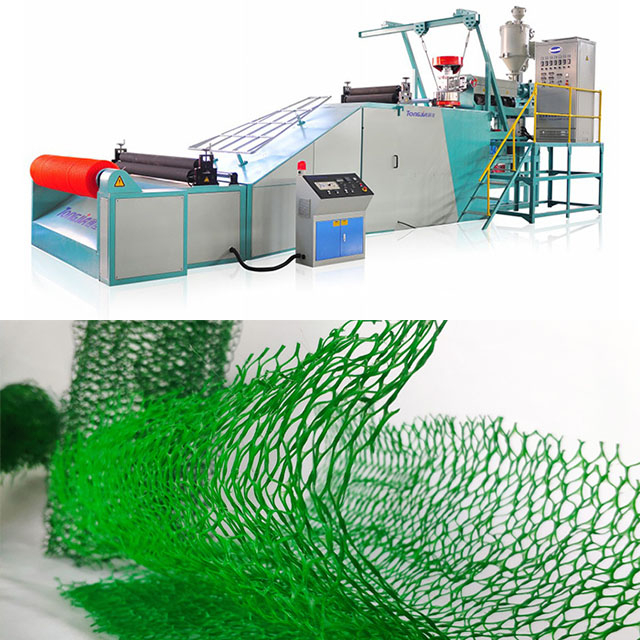

Equipment and product display

61c15cbd-5563-4265-91c6-b881de621d00.jpg_1180xaf5b78c58f-808c-4b2f-be06-6f6f9e0ac40c.jpg_1180xafbf236930-a9a4-4ad9-b059-32f7eb7df1cb.jpg_1180xafde3272d0-3867-4568-800a-a54306c9aff3.jpg_1180xaf
