I. Project overview
Project address: Taiwan, China
Product name: Roll granulator
Production scale: 16t/h
Service scope: Equipment supply.
II. Project description
This project is mainly to transform the roller granulator on the original ceramite production line and improve the low pelletizing rate of the original granulator.
III. Equipment parameters
| Performance parameter | Unit | Value or specification | |
| specification | mm | φ700×600 | |
| Drum diameter | mm | 700 | |
| Drum length | mm | 600 | |
| Structural form | sin | Single barrel with perforation | |
| capacity | m3/h | Mar 5 | |
| Rotational speed | r/min | 30.5 | |
| Materiel | Reservoir sludge | ||
| Extrusion aperture | mm | φ12或φ10 | |
| Feed moisture | 15-25% | ||
| Cycloidal needle wheel | Model | BWD7-29-Y18.5-6P-M1-0°-X | |
| Gear motor | power | kW | 18.5 |
| Speed ratio | 29 | ||
| voltage | V | 380 | |

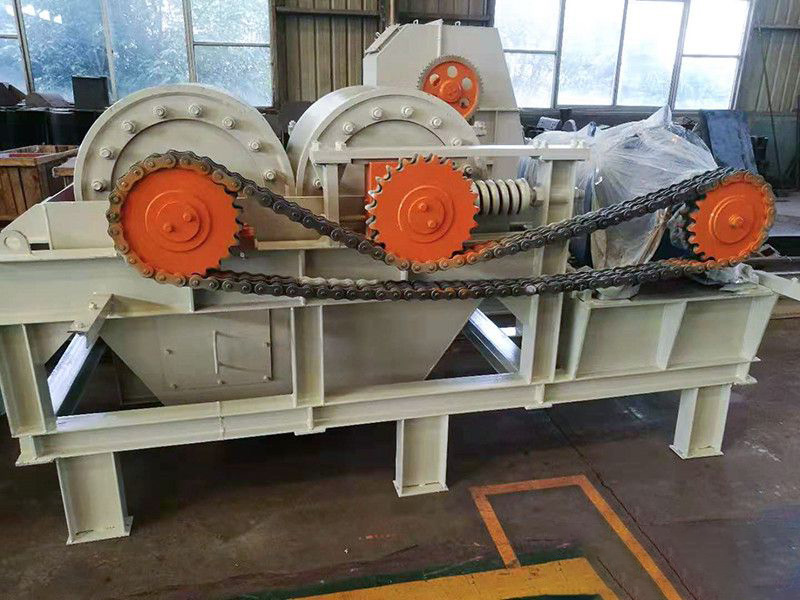

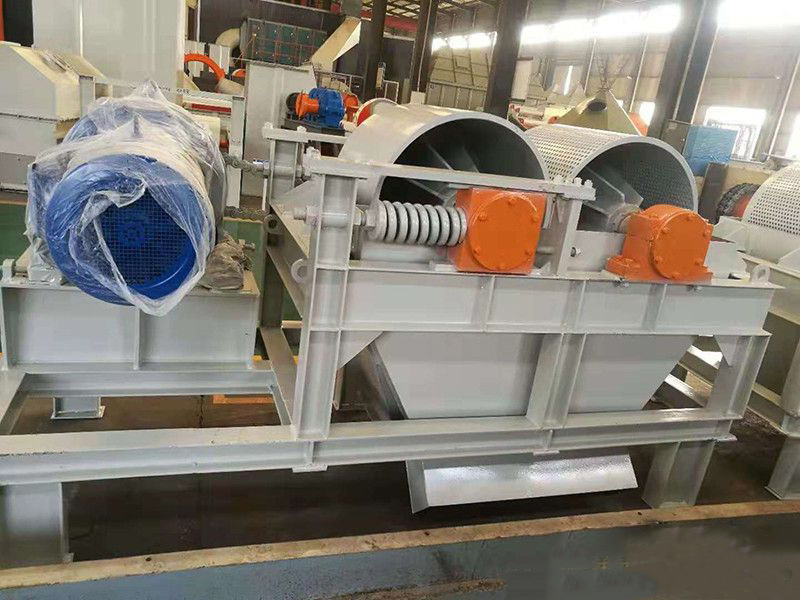

IV. Project pictures
