Brazil Compound Fertilizer Drum Granulator Project

I. Project overview

A company in Brazil is due to business production needs, in October 2016 for the production of compound fertilizer granulation, want to buy granulation equipment. Due to the distance and language differences, there were many difficulties in communication, but through the repeated explanation of our company's foreign trade and business personnel, and accompanied by photos and videos for display, the contract was signed. The equipment was delivered on time on November 25, 2016.

Processing material: compound fertilizer

Processing capacity: 30t/h

Equipment configuration: drum granulator

II. Solution

The pelletizing machine supplied this time is a drum pelletizing machine and corresponding supporting devices, with a time of 30t. The drum pelletizing machine is a kind of equipment that completes pelletizing by rotating mixed materials through the drum. Adopt the following solutions to meet customer needs:

The drum granulator is composed of a frame, a barrel, a transmission device, a retaining wheel and a connecting shaft. When working, the gear motor drives the sprocket to drive the retaining wheel to rotate, and the retaining wheel drives the cylinder with a certain inclination Angle to rotate at a low speed under the action of friction force and centrifugal force. Under the action of friction force and centrifugal force, the mixture rises to a certain height with the simple wall, and then rolls down under the action of gravity, the rolling material and the rising material produce relative motion and roll into a ball. The material ball rolls around and moves from high end to low end along the direction of the cylinder axis, so that the finished particles are discharged from the low end.

The granulator has the advantages of high production efficiency, high yield, simple structure, robustness and durability, convenient operation and maintenance, etc.

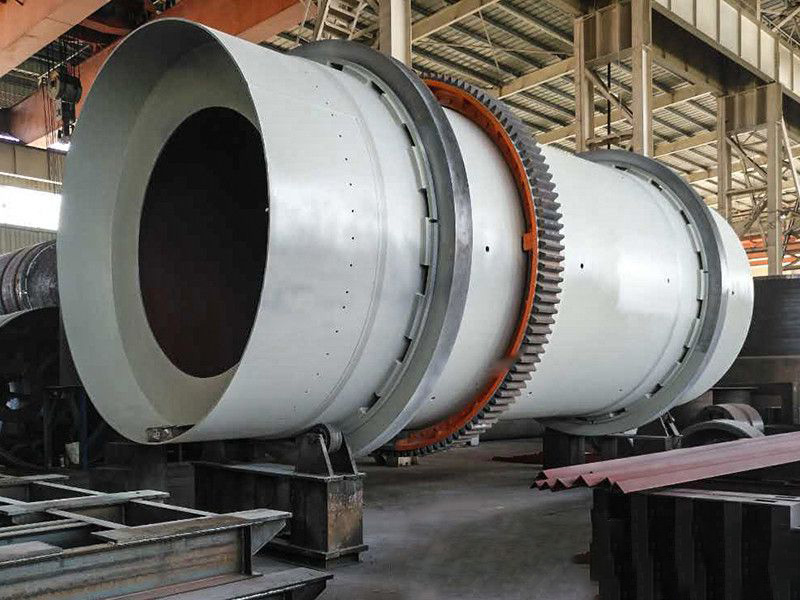

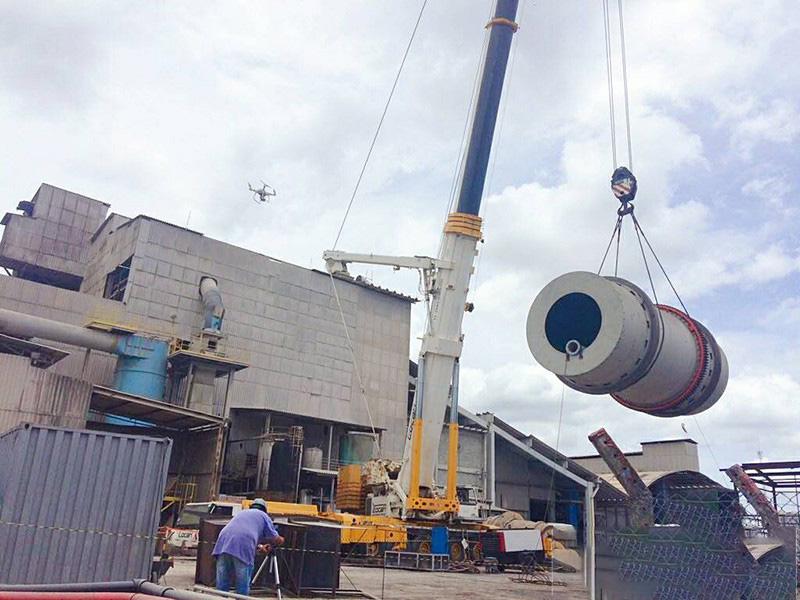

III. Pictures of equipment
