Dryer Production Line Project (Shanxi, China)

I. Project overview

Project address: Shangluo, Shaanxi

Date of signing: 2018-07

Equipment name: vanadium ore drying line

II. Production site introduction

[Project address] : Shangluo, Shaanxi

[Project highlight] : Improve the effective use of heat energy

[Project background] : In 2018, we signed a vanadium ore crushing and drying production line with our company. The process flow is as follows: raw ore mined from the mine is broken by a jaw crusher, the crushed material enters the roller screen for screening, the sifted material is broken by a fine jaw, and the crushed ore and soil are dried together in the dryer. The dryer uses the tail gas of the boiling furnace for calcining vanadium ore. The effective utilization of heat energy is improved by preheating and drying raw ore. The dried material is further broken by the roller press, because the raw ore with high taste of vanadium ore is soft and easy to break, so the broken material is sifted by the roller screen, and the sifting material is the rich ore with high taste of vanadium ore. The drying, crushing and screening of raw ore is the enrichment process of vanadium ore taste.

III. Supply equipment

Jaw crusher, fine jaw crusher, dryer, roller screen, spring roller press, vertical shaft crusher, conveying equipment, dust collector, etc.

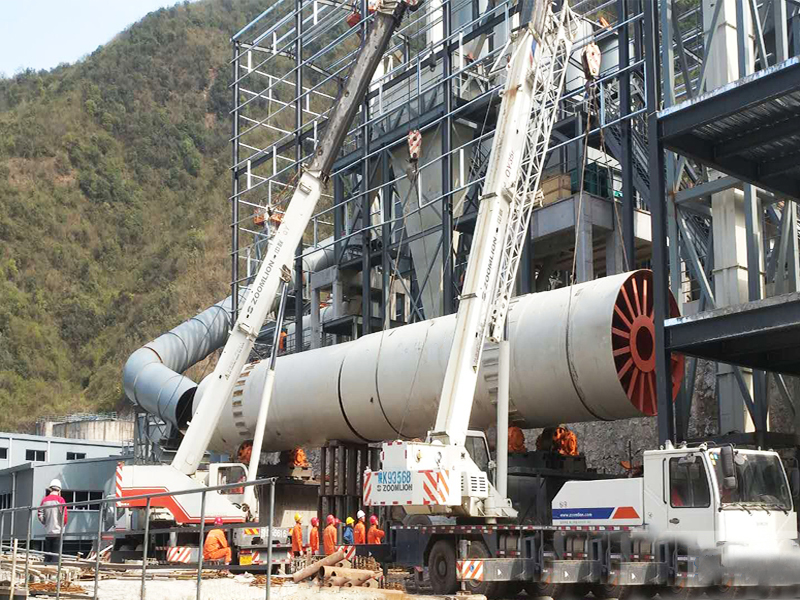

IV. Project site
