I. Project overview
Taixing Heat treatment workshop new drying kiln project, drying kiln is used for deep drying of waste salt slag. In this project, the waste salt slag produced by a drying kiln is deeply dried, which has the characteristics of good drying effect, large production capacity, high operation rate, low energy consumption, stable and reliable operation, easy operation and maintenance, etc., which can realize energy saving, consumption reduction and environmental protection production.
Product name: drying kiln
Equipment specifications: φ3.5×14m
Production capacity: 10-15t/h
II. Product advantages
1. Main drive motor:
The use of frequency conversion speed regulating motor, energy saving and environmental protection, and speed regulating range, high efficiency, high precision, smooth operation.
2. Auxiliary drive:
The auxiliary transmission motor is used to ensure that the rotary kiln can still operate when the main power supply is interrupted, prevent the bending deformation of the cylinder and facilitate maintenance, and it is equipped with electric hydraulic block brake to avoid reversal when the kiln is stopped.
3. Supporting device and supporting device of supporting wheel:
The use of double row self-aligning roller bearing + thrust self-aligning roller bearing replaces the traditional plain bearing structure, simplifies the roller structure, improves the reliability of the overall operation, reduces the useless power loss during the cylinder operation, and makes maintenance and overhaul more convenient.
4, wheel stop device:
Using hydraulic stop wheel, relying on the hydraulic station to provide pressure to promote the stop wheel and kiln body, to achieve the kiln up and down, without manual intervention, to achieve automation.
5, kiln head, tail sealing device:
The three-layer flexible seal (stainless steel seal flake + carbon silicon aluminum fiber composite plate + stainless steel seal flake) combined with the labyrinth structure seal, low air leakage rate, better sealing performance, higher reliability, and longer service life, convenient replacement, can significantly reduce its maintenance costs.

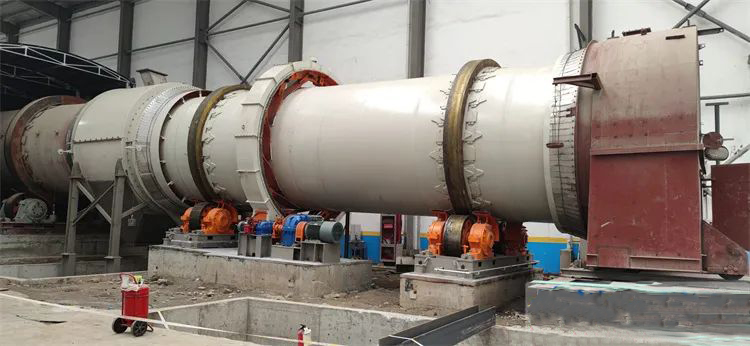

III. Pictures of equipment
