I. Project overview
Date of signing: 2017-05-19
Product name: waste incineration
Production scale: 16t/h
Service scope: Design, manufacture, installation and commissioning of rotary kiln and secondary combustion chamber
This project uses a rotary kiln to incinerate and dispose of waste residue. Since waste residue will produce dioxins in the process of incineration, a secondary combustion chamber needs to be set at the end of the rotary kiln to eliminate dioxins in the flue gas.
II. Solution
Rotary kiln:
Power supply: 380V/50Hz/3φ, motor energy consumption level IE2, insulation level F, protection level IP54, explosion-proof level dII BT.
Kiln body size: Φ2200X18000(mm)
Device inclination: 3:100
Kiln body main material: Q345R
Sealing form of kiln head and kiln tail: fish scale and labyrinth
Support form: two point support
Transmission form: single-end two-stage transmission, pinion supported by double bearings
Working temperature of rotary kiln: 600℃~700℃
Secondary combustion chamber:
Secondary combustion chamber material: Q345
Secondary combustion chamber operating temperature: 1100℃

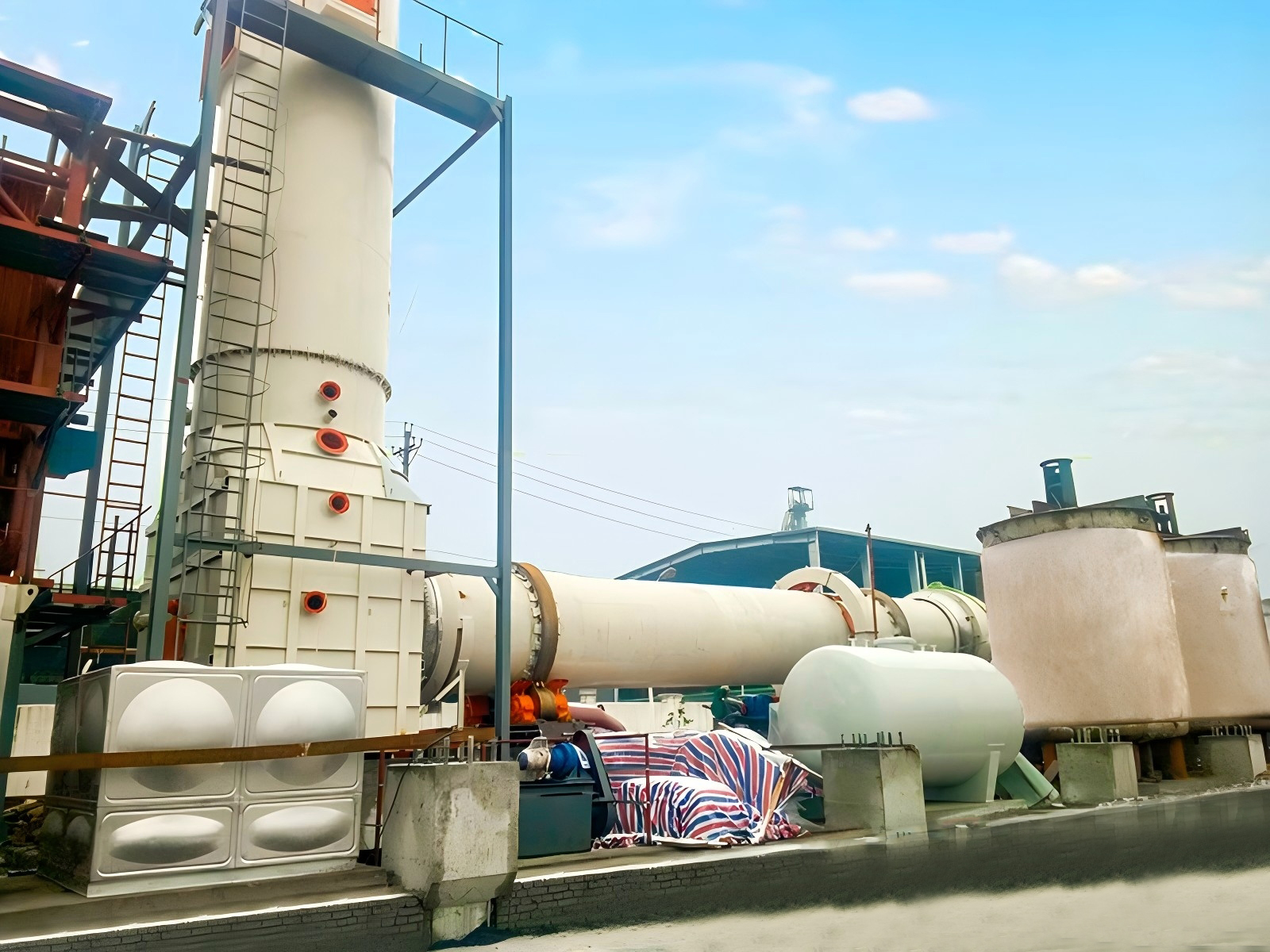

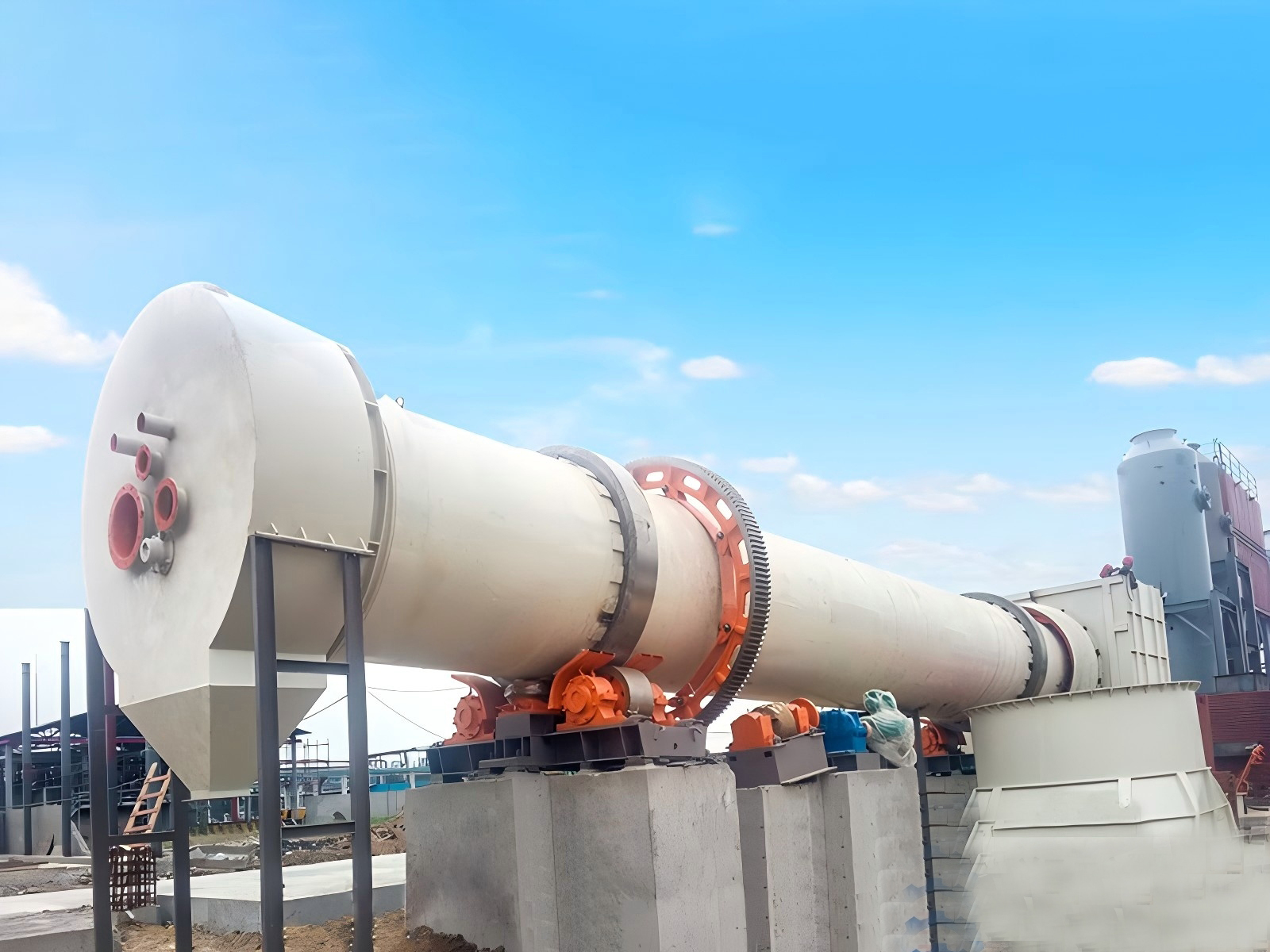

III. Project site
